LY61L-MDBTC3 (1988)
Toyota Dyna150
Production
Aug 1988
-
Aug 1990
Engine
3L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )

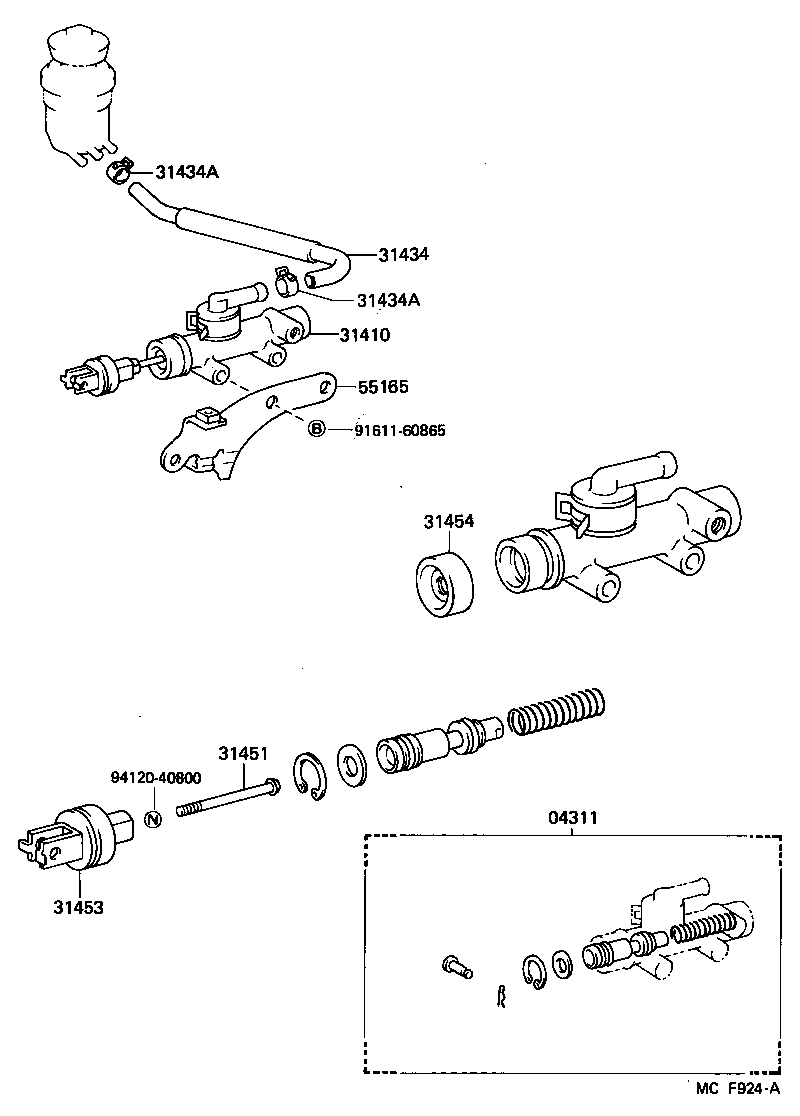

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 96132-30800 |
LY6#,YY61 |
2 | ||
| 31434A - CLIP(FOR CLUTCH RESERVOIR TUBE) | ||||
| 96132-30800 |
LY6#,YY61 |
2 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31404-35020 |
LY61 |
1 | ||
| 31454 - BOOT, CLUTCH MASTER CYLINDER | ||||
| 31454-14010 |
LY6#,YY61 |
1 | ||
| 55165 - SUPPORT, CLUTCH MASTER CYLINDER | ||||
| 55165-95401 |
LY6#,YY61 |
1 | ||
| Common parts | ||||
| 91611-60865 | ||||
| 94120-40800 | ||||
