LY60R-MDPQ (1985)

Toyota Dyna150

Production Aug 1985 - Aug 1987
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

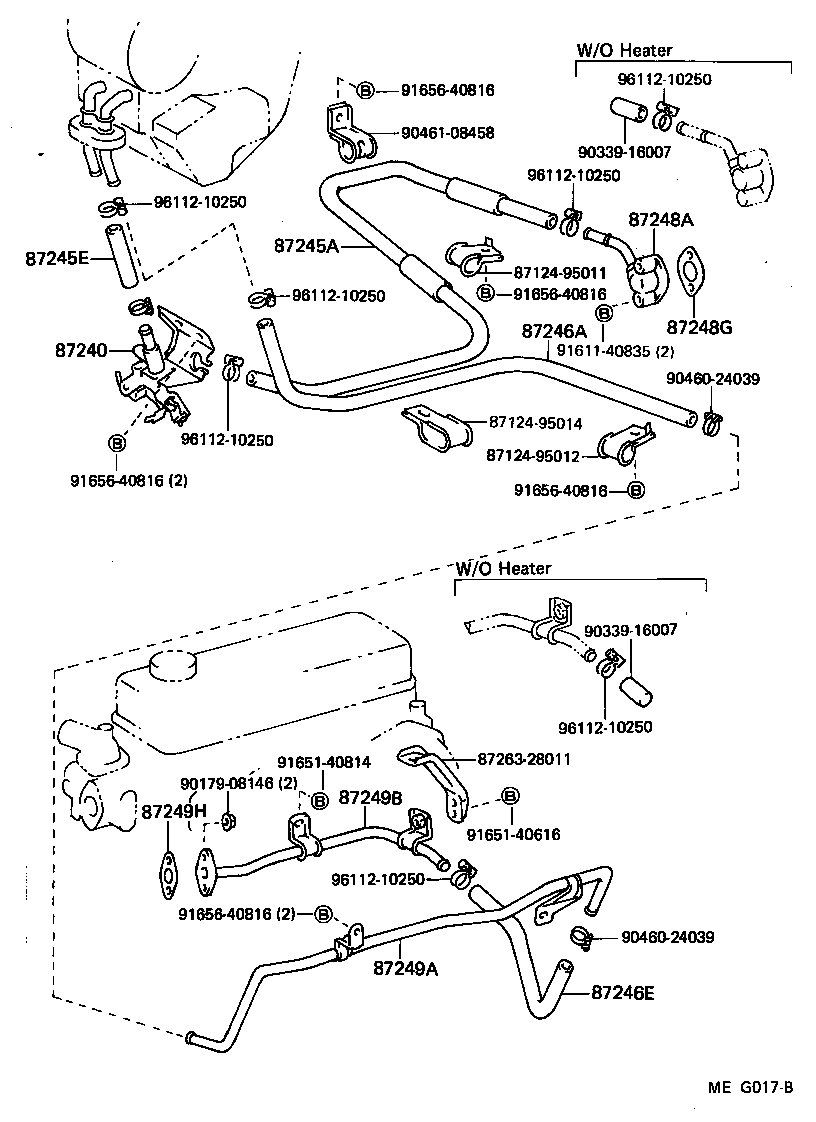

(8508- )YY5#,6#

Click highlighted areas on diagram

diagram 8712495011 8712495012 8712495014 87240 87245A 87245E 87246A 87246E 87248A 87248G 87249A 87249B 87249H 8726328011 9017908146 9033916007 9033916007 9046024039 9046024039 9046108458 9161140835 9165140616 9165140814 9165640816 9165640816 9165640816 9165640816 9165640816 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-95405

LY60,YY6#..RHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95039

LY60

 1
87245-95045

YY5#,6#

 1
99556-30980

YY5#,6#..TW

*H,L=900,W/RR HEATER

 1
87245E - HOSE, HEATER WATER, INLET E
99556-30100

LY60,YY5#,6#

*H,L=60

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30980

LY60,YY60..RHD

*H,L=760

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95053

LY60

 1
87245-95051

YY5#,6#

 1
87248A - PIPE, HEATER WATER INLET, A
87208-28010

YY5#,6#

 1
87248G - GASKET, WATER INLET PIPE
11493-71010

YY5#,6#

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-95011

YY5#,6#

 1
87249B - PIPE, HEATER WATER OUTLET, B
87208-28021

YY5#,6#

 1
87249H - GASKET, WATER OUTLET PIPE
17175-72010

YY5#,6#

 1
Common parts
87124-95011
87124-95012
87124-95014
87263-28011
90179-08146
90339-16007
90460-24039
90461-08458
91611-40835
91651-40616
91651-40814
91656-40816
96112-10250

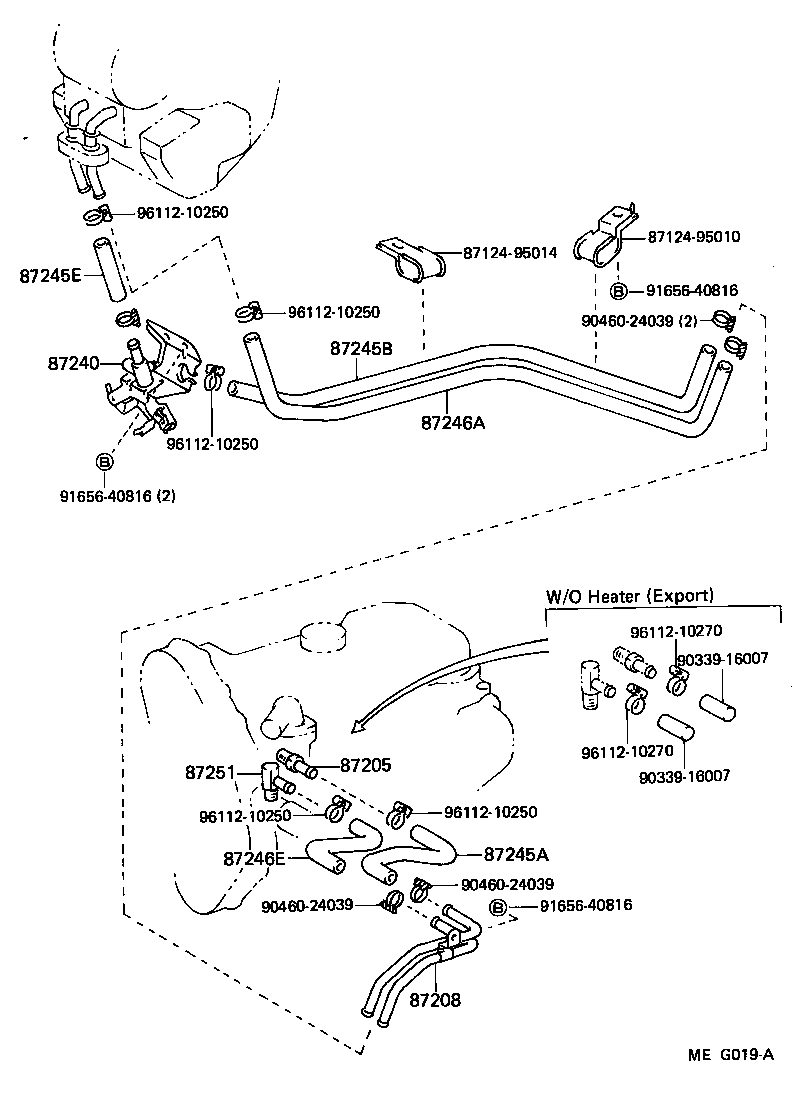

(8508- )LY60

Click highlighted areas on diagram

diagram 8712495010 8712495014 87205 87208 87240 87245A 87245B 87245E 87246A 87246E 87251 9033916007 9033916007 9046024039 9046024039 9046024039 9165640816 9165640816 9165640816 9611210250 9611210250 9611210250 9611210250 9611210250 9611210270 9611210270
Part # Description Qty Price
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-30200

LY60

 1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-95013

LY60

 1
87208-95015

YY5#,6#..TW

 1
87208-95016

LY60..TW

W/RR HEATER

 1
87240 - VALVE ASSY, HEATER WATER
87240-95405

LY60,YY6#..RHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95039

LY60

 1
87245-95045

YY5#,6#

 1
99556-30980

YY5#,6#..TW

*H,L=900,W/RR HEATER

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30620

LY60..RHD

*H,L=620

 1
99556-30500

YY5#,6#..TW

*H,L=310

 1
87245E - HOSE, HEATER WATER, INLET E
99556-30100

LY60,YY5#,6#

*H,L=60

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30980

LY60,YY60..RHD

*H,L=760

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95053

LY60

 1
87245-95051

YY5#,6#

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30230

LY60

 1
Common parts
87124-95010
87124-95014
90339-16007
90460-24039
91656-40816
96112-10250
96112-10270

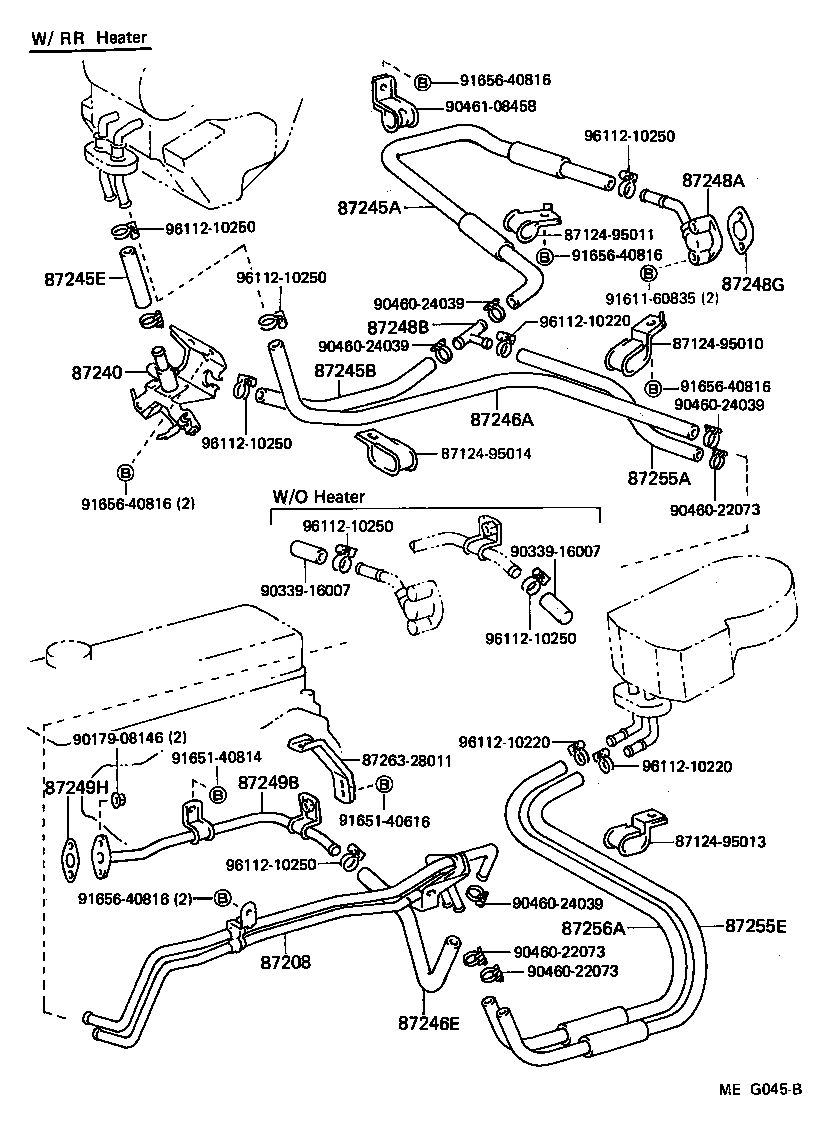

(8508- )YY5#,6#

Click highlighted areas on diagram

diagram 8712495010 8712495011 8712495013 8712495014 87208 87240 87245A 87245B 87245E 87246A 87246E 87248A 87248B 87248G 87249B 87249H 87255A 87255E 87256A 8726328011 9017908146 9033916007 9033916007 9046022073 9046022073 9046022073 9046024039 9046024039 9046024039 9046024039 9046108458 9161160835 9165140616 9165140814 9165640816 9165640816 9165640816 9165640816 9165640816 9611210220 9611210220 9611210220 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-95013

LY60

 1
87208-95015

YY5#,6#..TW

 1
87208-95016

LY60..TW

W/RR HEATER

 1
87240 - VALVE ASSY, HEATER WATER
87240-95405

LY60,YY6#..RHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95039

LY60

 1
87245-95045

YY5#,6#

 1
99556-30980

YY5#,6#..TW

*H,L=900,W/RR HEATER

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30620

LY60..RHD

*H,L=620

 1
99556-30500

YY5#,6#..TW

*H,L=310

 1
87245E - HOSE, HEATER WATER, INLET E
99556-30100

LY60,YY5#,6#

*H,L=60

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30980

LY60,YY60..RHD

*H,L=760

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95053

LY60

 1
87245-95051

YY5#,6#

 1
87248A - PIPE, HEATER WATER INLET, A
87208-28010

YY5#,6#

 1
87248B - PIPE, HEATER WATER INLET, B
87248-95400

YY5#,6#..TW

 1
87248G - GASKET, WATER INLET PIPE
11493-71010

YY5#,6#

 1
87249B - PIPE, HEATER WATER OUTLET, B
87208-28021

YY5#,6#

 1
87249H - GASKET, WATER OUTLET PIPE
17175-72010

YY5#,6#

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99556-20490

YY5#,6#..TW

*H,L=380

 1
87245-95047

LY60..TW

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-95047

YY5#,6#..TW

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-95048

LY60,YY5#,6#..TW

 1
Common parts
87124-95010
87124-95011
87124-95013
87124-95014
87263-28011
90179-08146
90339-16007
90460-22073
90460-24039
90461-08458
91611-60835
91651-40616
91651-40814
91656-40816
96112-10220
96112-10250

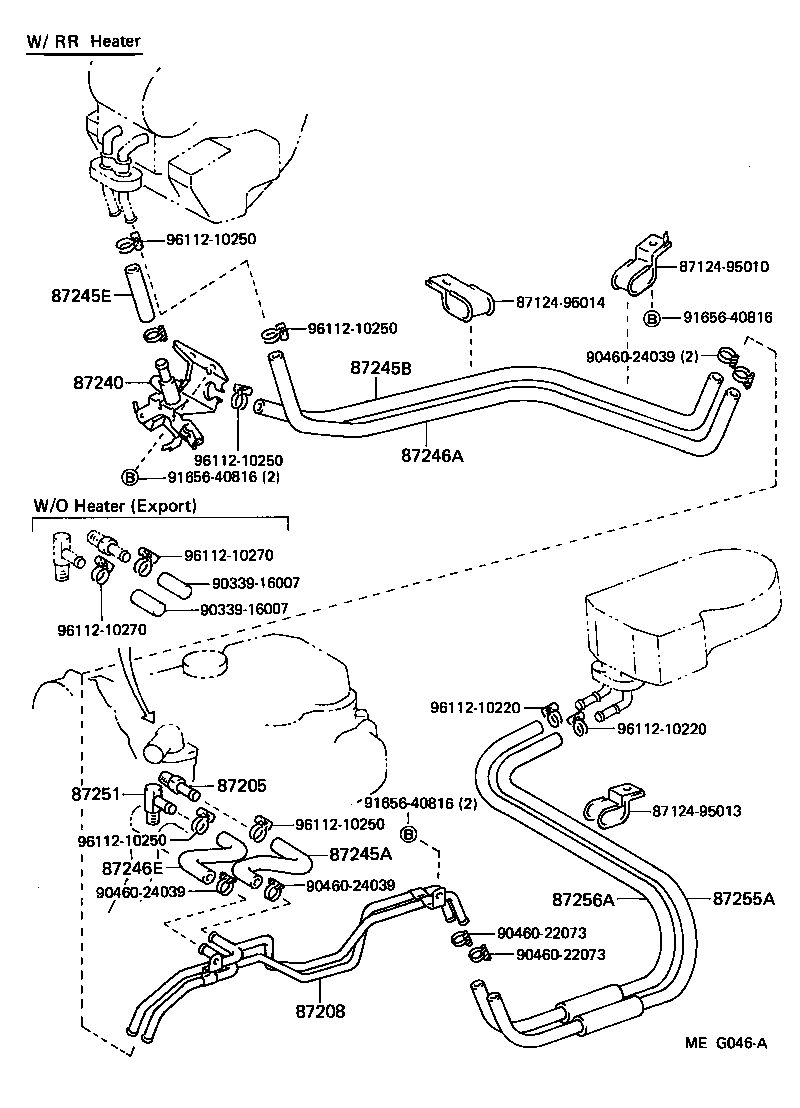

(8508- )LY60

Click highlighted areas on diagram

diagram 8712495010 8712495013 8712495014 87205 87208 87240 87245A 87245B 87245E 87246A 87246E 87251 87255A 87256A 9033916007 9033916007 9046022073 9046022073 9046024039 9046024039 9046024039 9165640816 9165640816 9165640816 9611210220 9611210220 9611210250 9611210250 9611210250 9611210250 9611210250 9611210270 9611210270
Part # Description Qty Price
87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV
87251-30200

LY60

 1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-95013

LY60

 1
87208-95015

YY5#,6#..TW

 1
87208-95016

LY60..TW

W/RR HEATER

 1
87240 - VALVE ASSY, HEATER WATER
87240-95405

LY60,YY6#..RHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95039

LY60

 1
87245-95045

YY5#,6#

 1
99556-30980

YY5#,6#..TW

*H,L=900,W/RR HEATER

 1
87245B - HOSE, HEATER WATER, INLET B
99556-30620

LY60..RHD

*H,L=620

 1
99556-30500

YY5#,6#..TW

*H,L=310

 1
87245E - HOSE, HEATER WATER, INLET E
99556-30100

LY60,YY5#,6#

*H,L=60

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30980

LY60,YY60..RHD

*H,L=760

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95053

LY60

 1
87245-95051

YY5#,6#

 1
87251 - JOINT OR UNION, WATER HOSE THROUGH
87251-30230

LY60

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
99556-20490

YY5#,6#..TW

*H,L=380

 1
87245-95047

LY60..TW

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-95048

LY60,YY5#,6#..TW

 1
Common parts
87124-95010
87124-95013
87124-95014
90339-16007
90460-22073
90460-24039
91656-40816
96112-10220
96112-10250
96112-10270
