LY60R-MDB (1985)

Toyota Dyna150

Production Aug 1985 - Aug 1987
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

Click highlighted areas on diagram

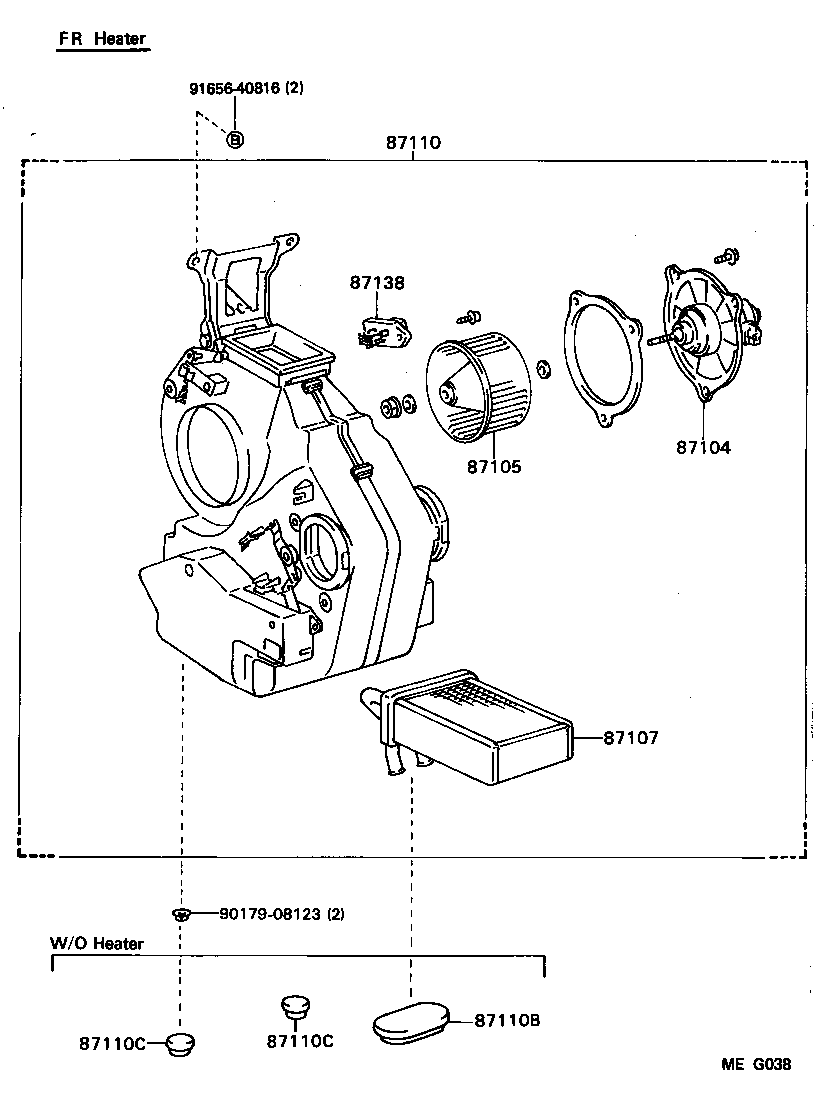

diagram 87104 87105 87107 87110 87110B 87110C 87110C 87138 9017908123 9165640816
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-95404

LY60,YY5#,6#

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-95402

LY60,YY6#..RHD..GEN

W/*BV

 1
87105-12060

LY60,YY60..RHD..ST

W/HEATER

 1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-95406

LY60,YY5#,60..T3,TW

STD DUTY HEATER

 1
87110 - HEATER ASSY
87110-95436

LY60,YY60..RHD..ST

 1
87110B - PLUG, HOLE (FOR HEATER PIPE HOLE)
90950-01047

LY60,YY5#,6#..EUR,GEN

 1
87110C - PLUG, HOLE (FOR HEATER INSTALLATION HOLE)
90950-01006

LY60,YY5#,6#..EUR,GEN

 2
87110C - PLUG, HOLE (FOR HEATER INSTALLATION HOLE)
90950-01006

LY60,YY5#,6#..EUR,GEN

 2
87138 - RESISTOR, HEATER BLOWER
87138-95409

LY60,YY5#,6#

 1
Common parts
90179-08123
91656-40816

(8508- )

Click highlighted areas on diagram

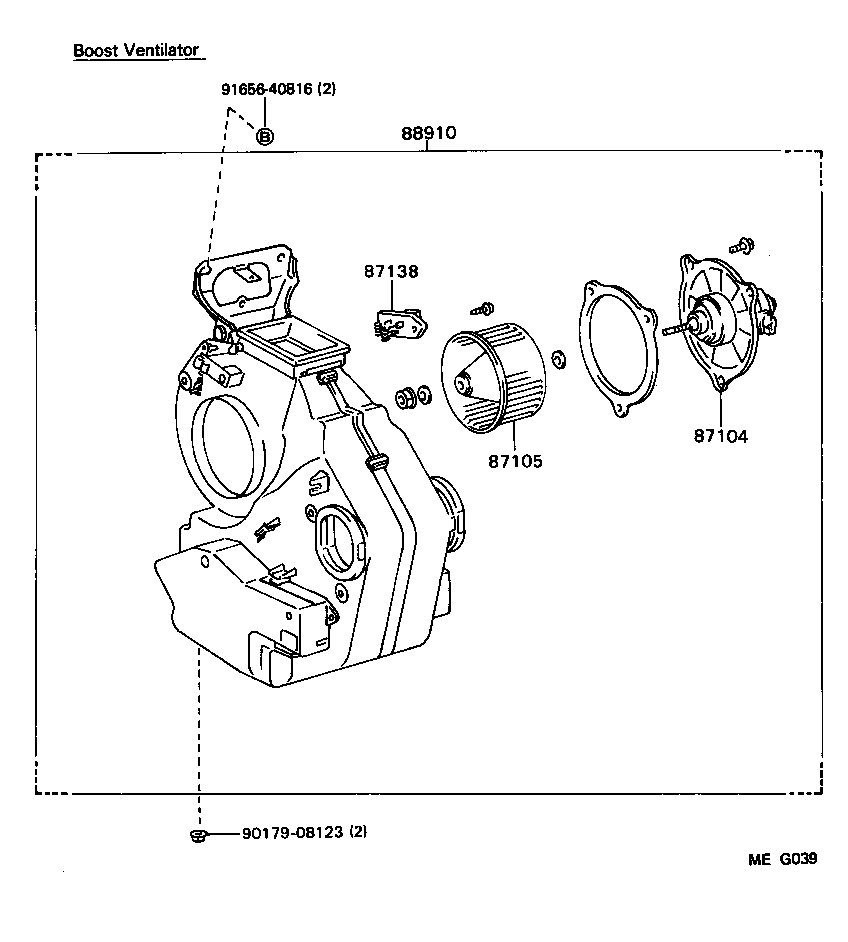

diagram 87104 87105 87138 88910 9017908123 9165640816
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-95404

LY60,YY5#,6#

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-95402

LY60,YY6#..RHD..GEN

W/*BV

 1
87105-12060

LY60,YY60..RHD..ST

W/HEATER

 1
87138 - RESISTOR, HEATER BLOWER
87138-95409

LY60,YY5#,6#

 1
88910 - VENTILATOR ASSY, BOOST
88910-95400

LY60,YY6#..RHD..GEN

 1
Common parts
90179-08123
91656-40816

(8508- )

Click highlighted areas on diagram

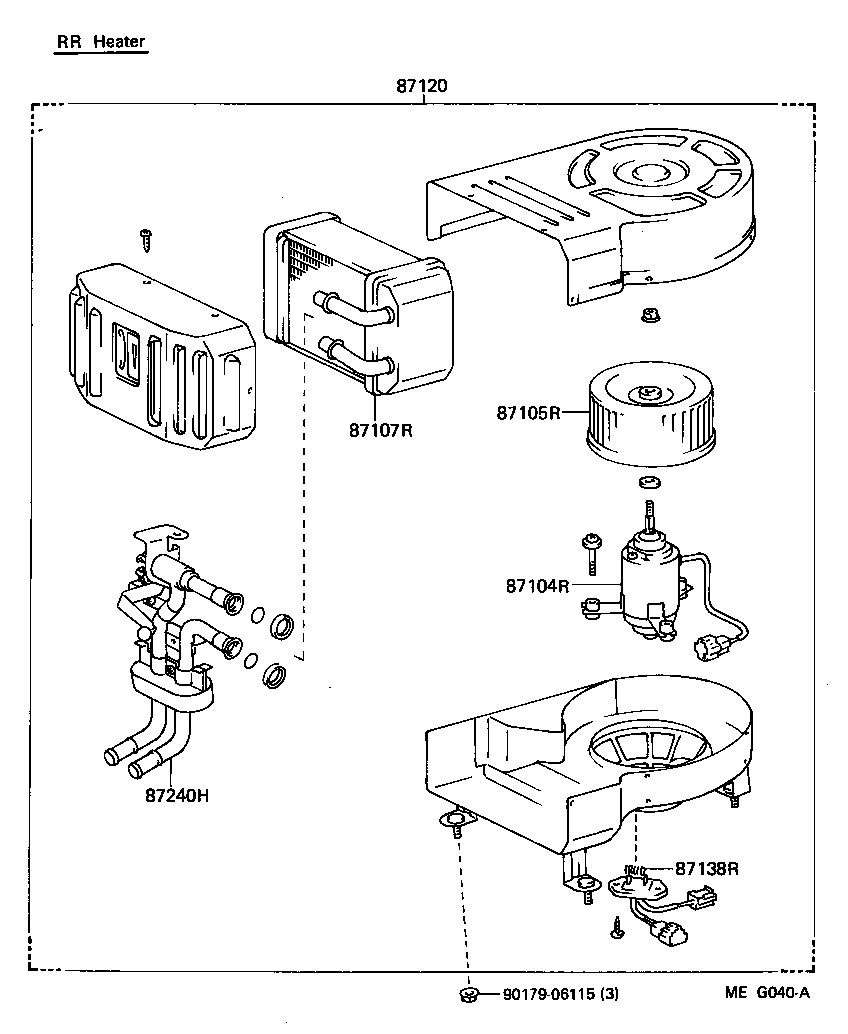

diagram 87104R 87105R 87107R 87120 87138R 87240H 9017906115
Part # Description Qty Price
Common parts
90179-06115
