LY60R-MDB (1985)

Toyota Dyna150

Production Aug 1985 - Aug 1987
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )LY60..RHD

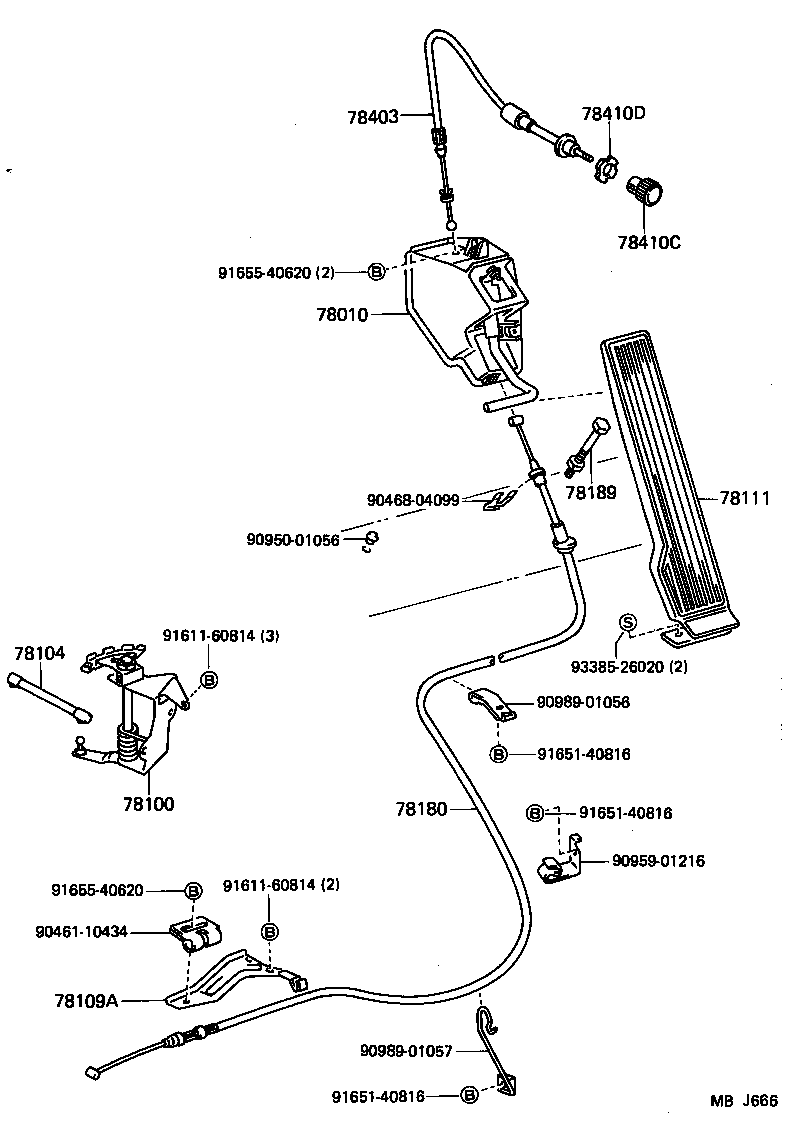

Click highlighted areas on diagram

diagram 78010 78100 78104 78109A 78111 78180 78189 78403 78410C 78410D 9046110434 9046804099 9095001056 9095901216 9098901056 9098901057 9161160814 9161160814 9165140816 9165140816 9165140816 9165540620 9165540620 9338526020
Part # Description Qty Price
78010 - LINK, ACCELERATOR
78202-95010

LY60,YY6#..RHD

 1
78100 - LINK ASSY, ACCELERATOR
78100-95J06

LY60..RHD

 1
78104 - ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2
78104-30120

LY60

 1
78109A - BRACKET SUB-ASSY, ACCELERATOR WIRE CLAMP
78109-95J00

LY60..RHD

 1
78111 - PEDAL, ACCELERATOR
78110-95410

LY60,YY6#..RHD

 1
78180 - WIRE ASSY, ACCELERATOR
78150-95056

LY60..RHD

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78208-95400

LY60,YY6#..RHD

 1
78403 - CABLE SUB-ASSY, THROTTLE CONTROL
78404-95011

LY60..RHD

 1
78410C - KNOB, THROTTLE CABLE
78411-22010

LY60

 1
78410D - NUT, THROTTLE
78413-95J00

LY60

 1
Common parts
90461-10434
90468-04099
90950-01056
90959-01216
90989-01056
90989-01057
91611-60814
91651-40816
91655-40620
93385-26020
