LY60L-MDP (1985)

Toyota Dyna150

Production Aug 1985 - Aug 1987
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

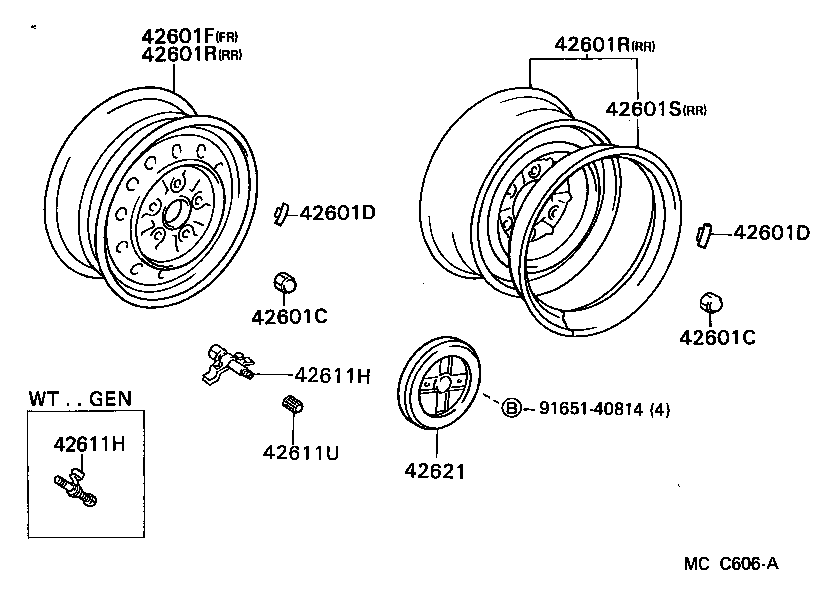

Click highlighted areas on diagram

diagram 42601C 42601C 42601D 42601D 42601F 42601R 42601R 42601S 42611H 42611H 42611U 42621 9165140814
Part # Description Qty Price
42601C - NUT, HUB (FOR AXLE)
90942-01004

LY60,YY5#,6#..ST

 24
42601C - NUT, HUB (FOR AXLE)
90942-01004

LY60,YY5#,6#..ST

 24
42601D - WEIGHT, BALANCE (FOR DISC WHEEL)
90942-03004

LY60,YY5#,6#..ST

80G,80G

 1
90942-03002

LY60,YY5#,6#..ST

20G,20G

 1
90942-03003

LY60,YY5#,6#..ST

60G,60G

 1
90942-03037

LY60,YY5#,6#..ST

40G,40G

 1
90942-03077

LY60,YY5#,6#..ST

50G,50G

 1
90942-03078

LY60,YY5#,6#..ST

70G,70G

 1
90942-03005

LY60,YY5#,6#..ST

100G,100G

 1
90942-03076

LY60,YY5#,6#..ST

30G,30G

 1
90942-03006

LY60,YY5#,6#..ST

120G,120G

 1
42601D - WEIGHT, BALANCE (FOR DISC WHEEL)
90942-03004

LY60,YY5#,6#..ST

80G,80G

 1
90942-03002

LY60,YY5#,6#..ST

20G,20G

 1
90942-03003

LY60,YY5#,6#..ST

60G,60G

 1
90942-03037

LY60,YY5#,6#..ST

40G,40G

 1
90942-03077

LY60,YY5#,6#..ST

50G,50G

 1
90942-03078

LY60,YY5#,6#..ST

70G,70G

 1
90942-03005

LY60,YY5#,6#..ST

100G,100G

 1
90942-03076

LY60,YY5#,6#..ST

30G,30G

 1
90942-03006

LY60,YY5#,6#..ST

120G,120G

 1
42601F - WHEEL, DISC (FOR FRONT)
42601-25180

LY60,YY5#,6#..ST

15X4.5K, #,4.5K-15

 3
42601R - WHEEL, DISC (FOR REAR)
42601-25190

LY60,YY5#,6#..ST

15X5.5K, #,5.5K-15

 3
42601R - WHEEL, DISC (FOR REAR)
42601-25190

LY60,YY5#,6#..ST

15X5.5K, #,5.5K-15

 3
Common parts
91651-40814
