LY60L-MDBTW3 (1985)

Toyota Dyna150

Production Aug 1985 - Aug 1987
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

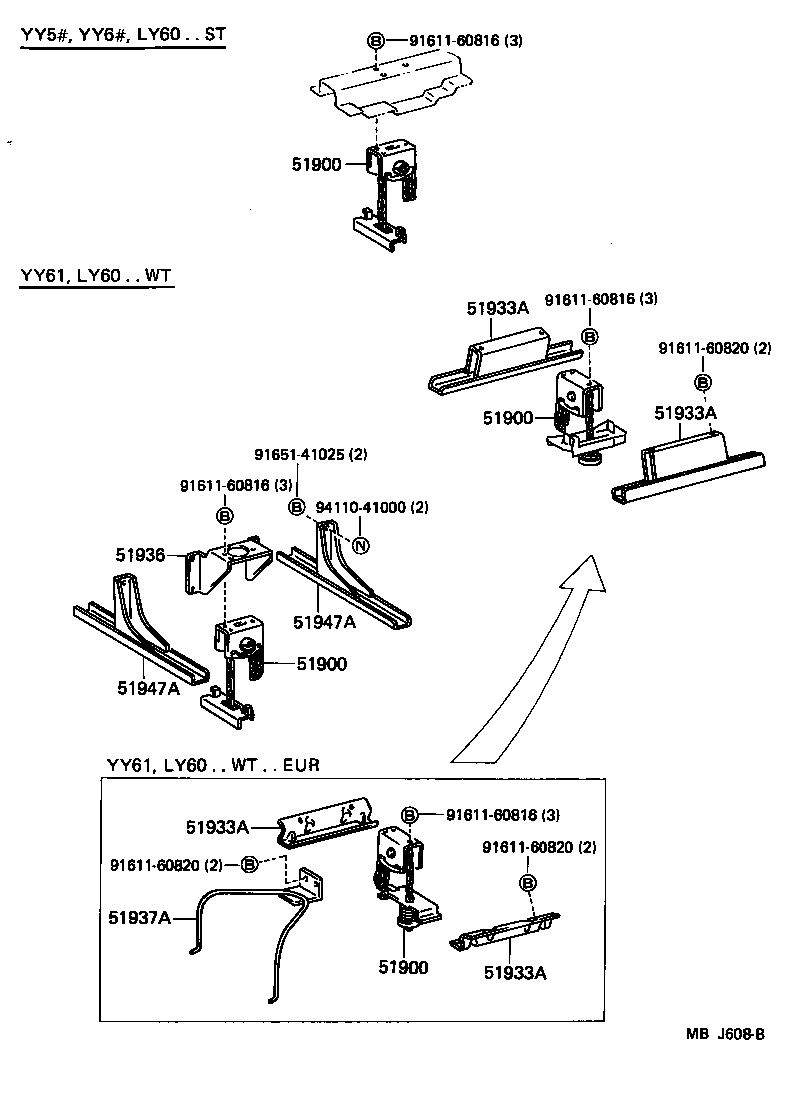

Click highlighted areas on diagram

diagram 51900 51900 51900 51900 51933A 51933A 51933A 51933A 51936 51937A 51947A 51947A 9161160816 9161160816 9161160816 9161160816 9161160820 9161160820 9161160820 9165141025 9411041000
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-35170

LY60,YY61..EUR

 1
51900-25090

LY60,YY61..EUR

 1
51900 - CARRIER ASSY, SPARE WHEEL
51900-35170

LY60,YY61..EUR

 1
51900-25090

LY60,YY61..EUR

 1
51900 - CARRIER ASSY, SPARE WHEEL
51900-35170

LY60,YY61..EUR

 1
51900-25090

LY60,YY61..EUR

 1
51900 - CARRIER ASSY, SPARE WHEEL
51900-35170

LY60,YY61..EUR

 1
51900-25090

LY60,YY61..EUR

 1
51933A - STOPPER, SPARE WHEEL, NO.1
51933-25050

LY60,YY61..EUR

 2
51933A - STOPPER, SPARE WHEEL, NO.1
51933-25050

LY60,YY61..EUR

 2
51933A - STOPPER, SPARE WHEEL, NO.1
51933-25050

LY60,YY61..EUR

 2
51933A - STOPPER, SPARE WHEEL, NO.1
51933-25050

LY60,YY61..EUR

 2
51937A - GUIDE, SPARE WHEEL SUPPORT
51937-25030

LY60,YY61..WT

 1
Common parts
91611-60816
91611-60820
91651-41025
94110-41000
