LY60L-MDBTW3 (1987)

Toyota Dyna150

Production Aug 1987 - Aug 1988
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

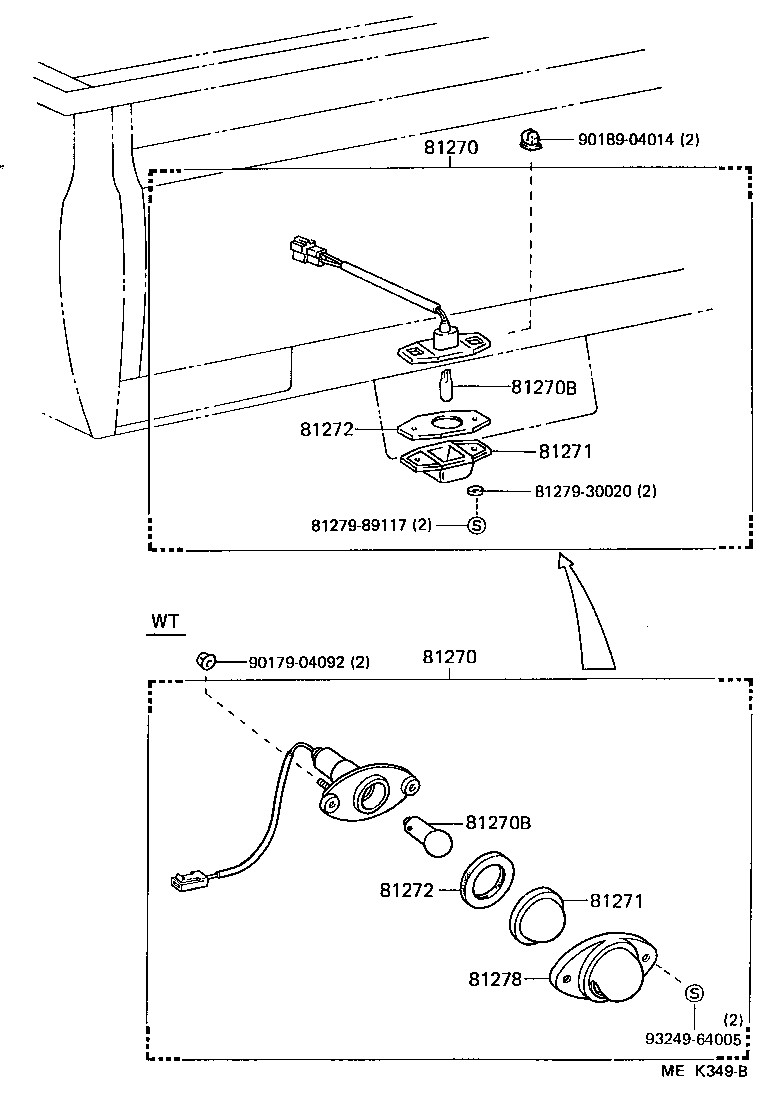

Click highlighted areas on diagram

diagram 81270 81270 81270B 81270B 81271 81271 81272 81272 81278 8127930020 8127989117 9017904092 9018904014 9324964005
Part # Description Qty Price
81270 - LAMP ASSY, LICENSE PLATE
81270-95016

LY6#,YY61..WT

 2
81270 - LAMP ASSY, LICENSE PLATE
81270-95016

LY6#,YY61..WT

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
90981-12013

LY6#,YY61..WT

12V 10W

 2
81270B - BULB (FOR LICENSE PLATE LAMP)
90981-12013

LY6#,YY61..WT

12V 10W

 2
81271 - LENS, LICENSE PLATE LAMP
81271-10010

LY6#,YY61..WT

 2
81271 - LENS, LICENSE PLATE LAMP
81271-10010

LY6#,YY61..WT

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-10010

LY6#,YY61..WT

 2
81272 - GASKET, LICENSE PLATE LAMP LENS
81272-10010

LY6#,YY61..WT

 2
81278 - COVER, LICENSE PLATE LAMP
81278-10011

LY6#,YY61..WT

 2
Common parts
81279-30020
81279-89117
90179-04092
90189-04014
93249-64005
