LY60L-MDBTW (1987)

Toyota Dyna150

Production Aug 1987 - Aug 1988
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

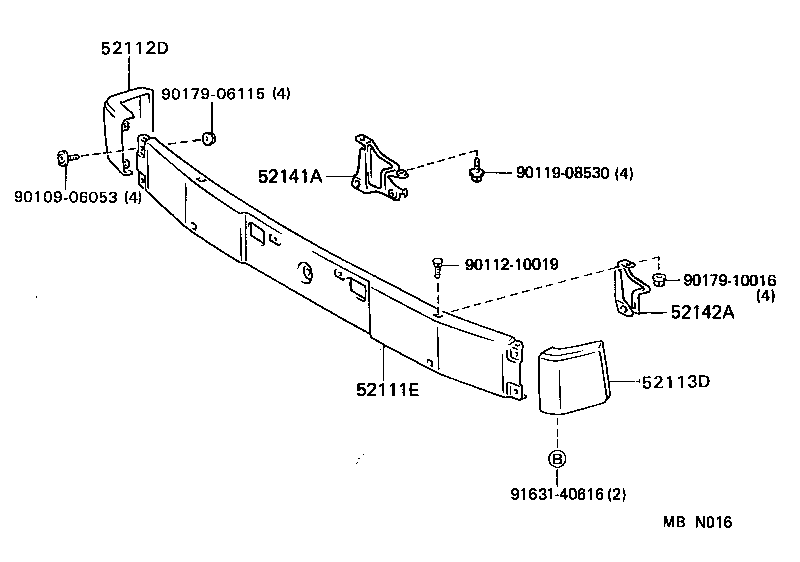

Click highlighted areas on diagram

diagram 52111E 52112D 52113D 52141A 52142A 9010906053 9011210019 9011908530 9017906115 9017910016 9163140616
Part # Description Qty Price
52111E - BAR, FRONT BUMPER
52111-9544101

LY6#,YY61..WT

BLACK,048 ,391 ,4E4 ,541 ,6A9 ,8E5

 1
52112D - EXTENSION, FRONT BUMPER, RH
52112-95406

LY6#,YY61

 1
52113D - EXTENSION, FRONT BUMPER, LH
52113-95406

LY6#,YY61

 1
52141A - ARM, FRONT BUMPER, UPPER RH
52141-95013

LY6#,YY61

 1
52142A - ARM, FRONT BUMPER, UPPER LH
52142-95013

LY6#,YY61

 1
Common parts
90109-06053
90112-10019
90119-08530
90179-06115
90179-10016
91631-40616
