LY60L-MDBTW (1987)
Toyota Dyna150
Production
Aug 1987
-
Aug 1988
Engine
2L
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
ILLUST NO. 3 OF 3(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04477 - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-60010 |
LY6#,YY61 |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-25131 |
LY6#,YY61 |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-25131 |
LY6#,YY61 |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-25020 |
LY6#,YY61 |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
LY6#,YY61 |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
LY6#,YY61 |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
LY6#,YY61 |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
LY6#,YY61 |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
LY6#,YY61 |
2 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-25040 |
LY6#,YY61 |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-36050 |
LY6#,YY61 |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-35010 |
LY6#,YY61 |
1 | ||
| 47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
LY6#,YY61 |
1 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
LY6#,YY61 |
2 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
LY6#,YY61 |
2 | ||
| 47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90948-02033 |
LY6#,YY61 |
1 | ||
| 47936 - SHACKLE, LOAD SENSING SPRING, NO.2 | ||||
| 47936-35010 |
LY6#,YY61 |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-60010 |
LY6#,YY61 |
1 | ||
| Common parts | ||||
| 90119-08703 | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91611-60820 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94141-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 95381-02020 | ||||

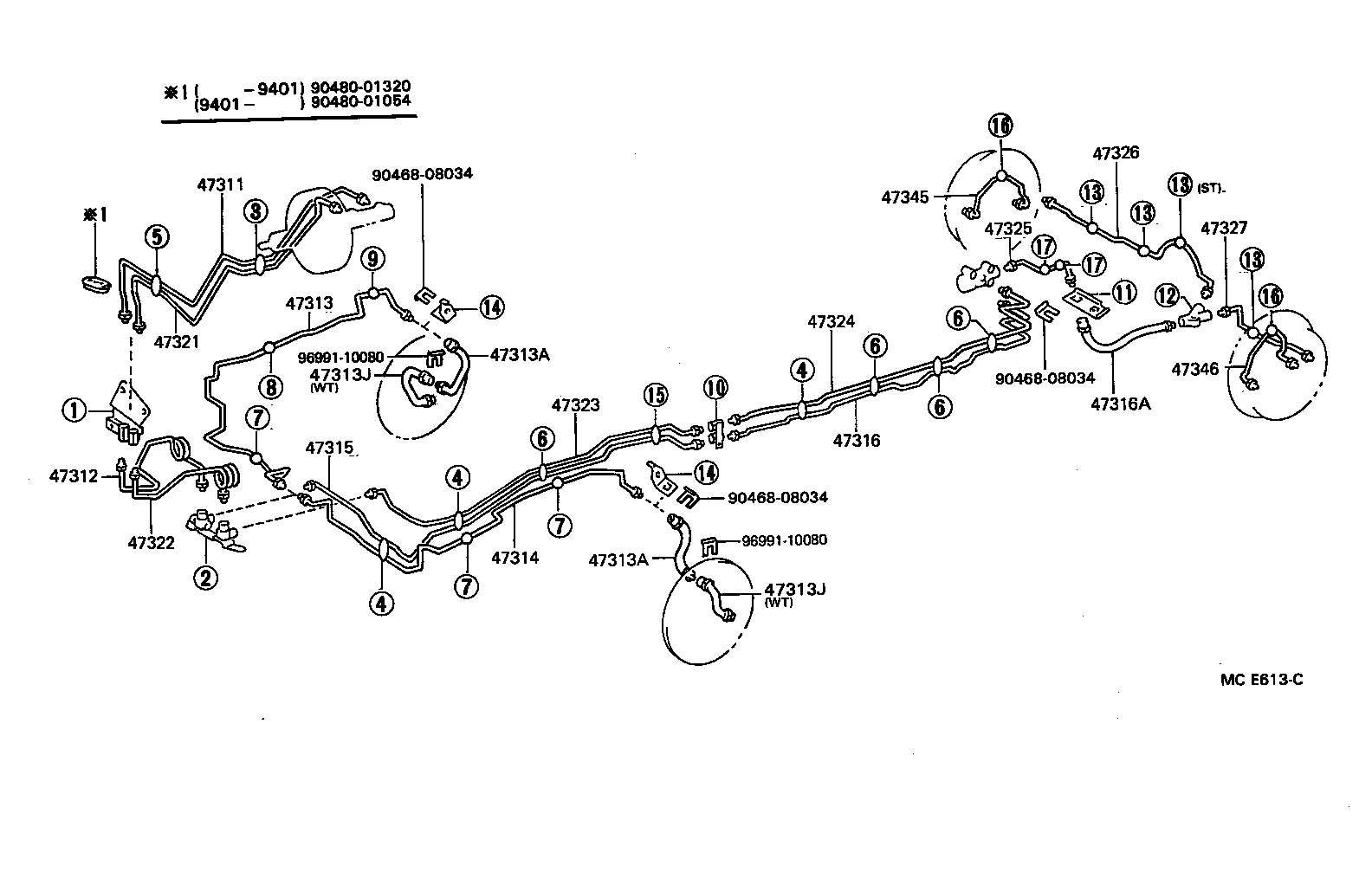

ILLUST NO. 1 OF 3(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-25190 |
LY6#,YY61 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-25100 |
LY60,YY61 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-25110 |
LY60,YY61 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02562 |
LY6#,YY61..WT |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02562 |
LY6#,YY61..WT |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02516 |
LY6#,YY61..WT |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02516 |
LY6#,YY61..WT |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-25140 |
LY60,YY61 |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-25070 |
LY6#,YY61 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-25110 |
LY6#,YY61 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-33905 |
LY6#,YY61..WT |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-25050 |
LY6#,YY61 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-25080 |
LY6#,YY61 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-25110 |
LY6#,YY61 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-25241 |
LY6#,YY61 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-25200 |
LY6#,YY61..WT |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-25200 |
LY6#,YY61..WT |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-25160 |
LY6#,YY61..WT |
1 | ||
| 47345 - TUBE, WHEEL CYLINDER, REAR RH | ||||
| 47342-36060 |
LY6#,YY61..WT |
1 | ||
| 47346 - TUBE, WHEEL CYLINDER, REAR LH | ||||
| 47344-36060 |
LY6#,YY61..WT |
1 | ||
| Common parts | ||||
| 90468-08034 | ||||
| 90480-01054 | ||||
| 90480-01320 | ||||
| 96991-10080 | ||||

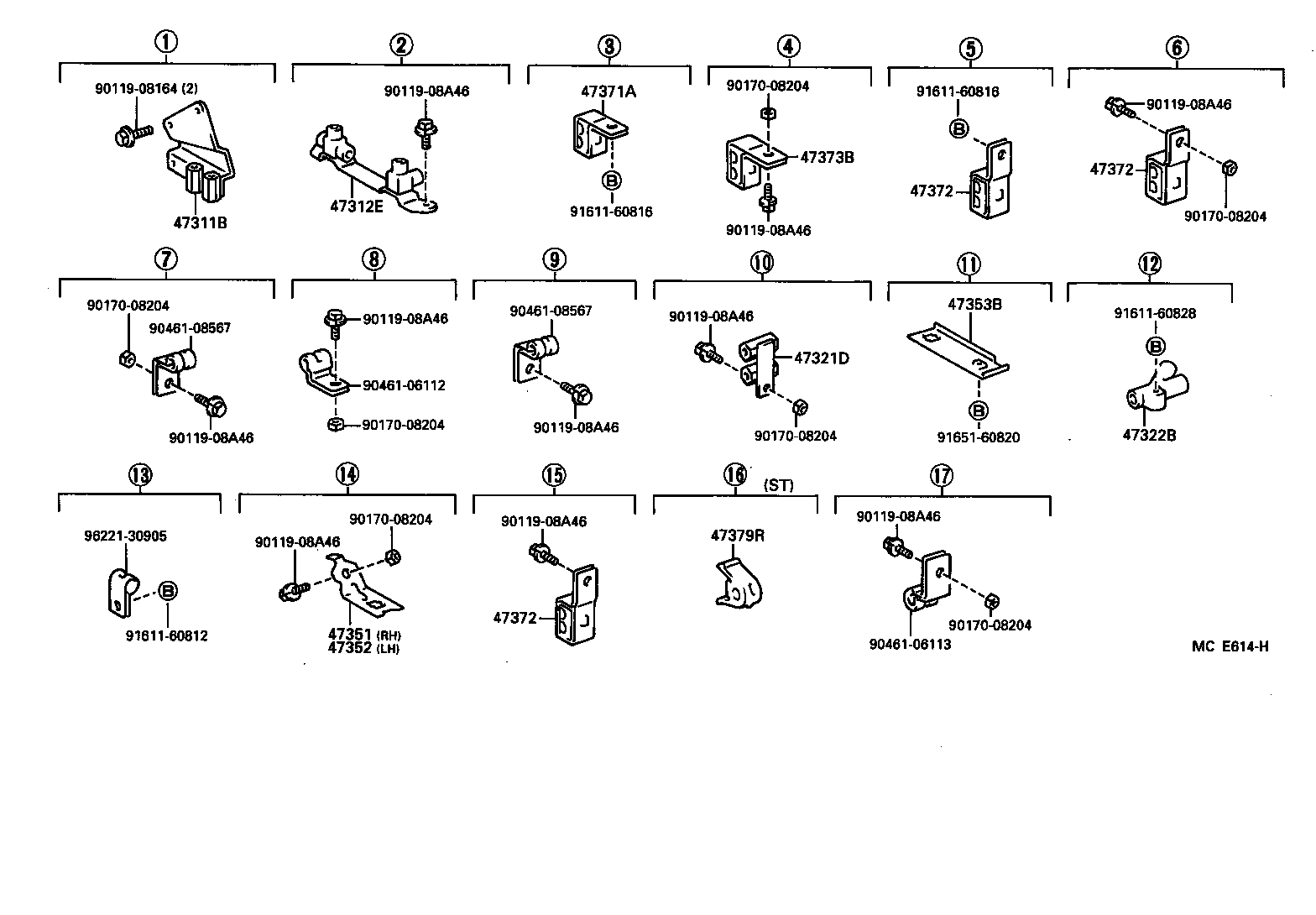

ILLUST NO. 2 OF 3(8708- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10128 |
LY6#,YY61 |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90414-10015 |
LY6#,YY61 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10126 |
LY6#,YY61 |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10147 |
LY6#,YY61 |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-25080 |
LY60,YY61 |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-25090 |
LY60,YY61 |
1 | ||
| 47353B - BRACKET, FLEXIBLE HOSE, NO.3 | ||||
| 47353-25040 |
LY6#,YY61..WT |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47373-25010 |
LY6#,YY61 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-25010 |
LY6#,YY61 |
6 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-25010 |
LY6#,YY61 |
6 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-25010 |
LY6#,YY61 |
6 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47373-25010 |
LY6#,YY61 |
4 | ||
| Common parts | ||||
| 90119-08164 | ||||
| 90119-08A46 | ||||
| 90170-08204 | ||||
| 90461-06112 | ||||
| 90461-06113 | ||||
| 90461-08567 | ||||
| 91611-60812 | ||||
| 91611-60816 | ||||
| 91611-60828 | ||||
| 91651-60820 | ||||
| 96221-30905 | ||||
