LY60L-MDB3 (1985)

Toyota Dyna150

Production Aug 1985 - Aug 1987
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )ST

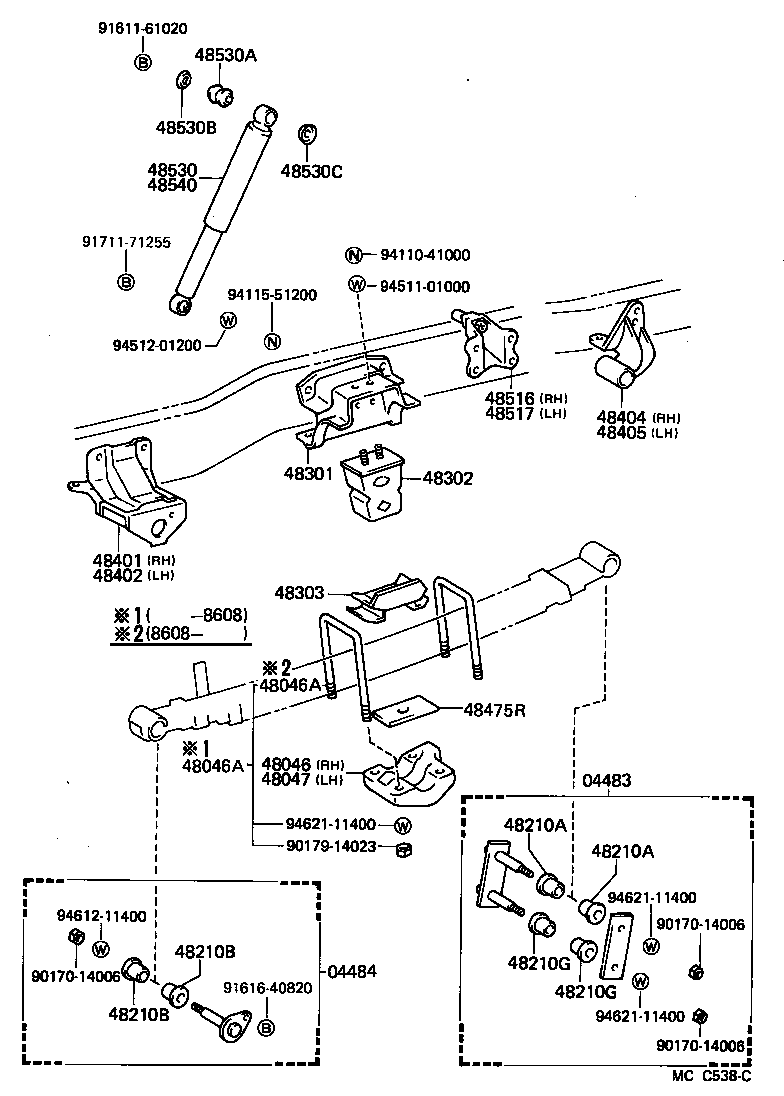

Click highlighted areas on diagram

diagram 04483 04484 48046 48046A 48046A 48047 48210A 48210A 48210B 48210B 48210G 48210G 48301 48302 48303 48401 48402 48404 48405 48475R 48516 48517 48530 48530A 48530B 48530C 48540 9017014006 9017014006 9017014006 9017914023 9161161020 9161640820 9171171255 9411041000 9411551200 9451101000 9451201200 9461211400 9462111400 9462111400 9462111400
Part # Description Qty Price
04483 - SHACKLE KIT, REAR SPRING
04483-25011

LY60,YY5#,6#

 1
04484 - PIN KIT, REAR SPRING
04482-25011

LY60,YY5#,6#

 1
48046 - SEAT SUB-ASSY, SPRING U BOLT, RH
48473-25090

LY60,YY5#,6#..ST

 1
48046A - BOLT, U(FOR REAR SPRING)
90118-14180

LY60,YY51,6#..ST

L=167

 4
90117-14014

LY60,YY52,6#..ST

L=170

 4
48046A - BOLT, U(FOR REAR SPRING)
90118-14180

LY60,YY51,6#..ST

L=167

 4
90117-14014

LY60,YY52,6#..ST

L=170

 4
48047 - SEAT SUB-ASSY, SPRING U BOLT, LH
48473-25090

LY60,YY5#,6#..ST

 1
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18005

LY60,YY5#,6#

 4
48210A - BUSH(FOR REAR SPRING SHACKLE UPPER)
90385-18005

LY60,YY5#,6#

 4
48210B - BUSH(FOR REAR SPRING PIN)
90385-18005

LY60,YY5#,6#

 4
48210B - BUSH(FOR REAR SPRING PIN)
90385-18005

LY60,YY5#,6#

 4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-18005

LY60,YY5#,6#

 4
48210G - BUSH(FOR REAR SPRING SHACKLE LOWER)
90385-18005

LY60,YY5#,6#

 4
48301 - BRACKET SUB-ASSY, HOLLOW SPRING
48312-25020

LY60,YY51,6#..ST

 1
48311-25040

LY60,YY51,6#..ST

 1
48302 - SPRING SUB-ASSY, HOLLOW
48302-25070

LY60,YY5#,6#..ST

 2
48303 - SEAT SUB-ASSY, HOLLOW SPRING
48303-25040

LY60,YY5#,6#..ARL,GEN

 2
48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH
48414-25100

LY60,YY51,6#..ST

 1
48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH
48415-25030

LY60,YY51,6#..ST

 1
48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH
48416-25040

LY60,YY51,6#..ST

 1
48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH
48417-25040

LY60,YY51,6#..ST

 1
48475R - PLATE, DISTANCE(FOR REAR)
48475-25010

LY60,YY5#,6#..ARL,GEN

 1
48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH
48505-25050

LY60,YY51,6#..ST

 1
48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH
48505-25050

LY60,YY51,6#..ST

 1
48530 - ABSORBER ASSY, SHOCK, REAR RH
48531-25070

LY60,YY5#,6#..ST

MARK 48531-25070

 1
48530A - BUSH(FOR REAR SHOCK ABSORBER)
90385-16004

LY60,YY5#,6#

 4
48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1
90948-03007

LY60,YY5#,6#

 2
48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2
90948-03004

LY60,YY5#,6#

 2
48540 - ABSORBER ASSY, SHOCK, REAR LH
48531-25070

LY60,YY5#,6#..ST

MARK 48531-25070

 1
Common parts
90170-14006
90179-14023
91611-61020
91616-40820
91711-71255
94110-41000
94115-51200
94511-01000
94512-01200
94612-11400
94621-11400

(8508- )

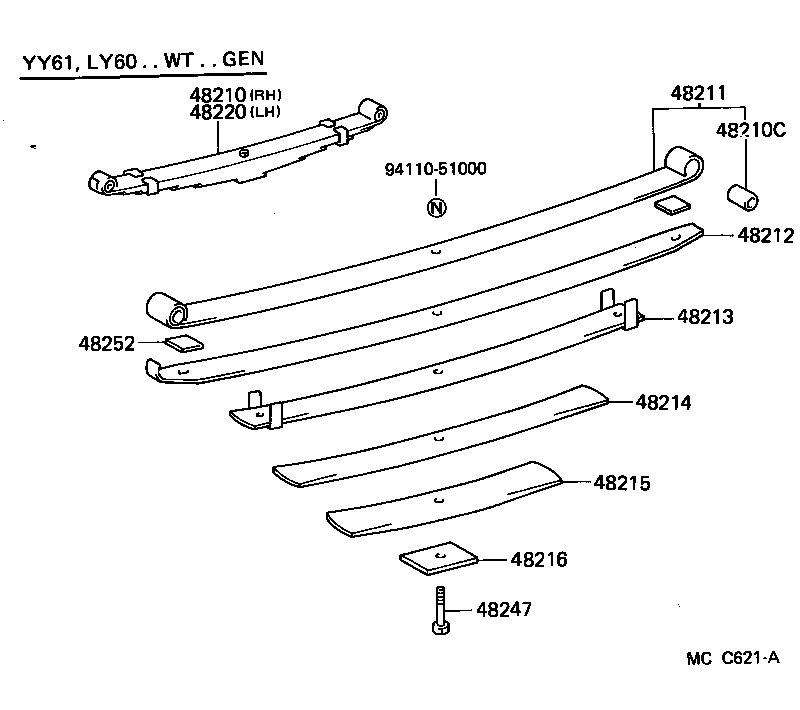

Click highlighted areas on diagram

diagram 48210 48210C 48211 48212 48213 48214 48215 48216 48220 48247 48252 9411051000
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-25370

LY60,YY51,6#..ST

4-LEAF

 1
48210-25580

YY5#,6#..ST;LY60..T3..ST;LY60..TW..GEN

4-LEAF

 1
48210C - BUSH(FOR REAR SPRING LEAF)
48299-25140

LY60,YY51,6#

 4
48211 - LEAF, REAR SPRING, NO.1
48201-25370

LY60,YY51,60..LHD..GEN

 2
48201-25580

LY60,YY5#,6#..LHD..GEN

 2
48212 - LEAF, REAR SPRING, NO.2
48212-25580

LY60,YY5#,6#..LHD..GEN

 2
48212-25370

LY60,YY51,60..LHD..GEN

 2
48213 - LEAF, REAR SPRING, NO.3
48202-25370

LY60,YY51,60..LHD..GEN

 2
48202-25580

LY60,YY5#,6#..LHD..GEN

 2
48214 - LEAF, REAR SPRING, NO.4
48203-25580

LY60,YY5#,6#..LHD..GEN

 2
48203-25370

LY60,YY51,60..LHD..GEN

 2
48220 - SPRING ASSY, REAR LH
48210-25370

LY60,YY51,60..LHD..GEN

4-LEAF

 1
48210-25580

LY60,YY5#,6#..LHD..GEN

4-LEAF

 1
48247 - BOLT, REAR SPRING, CENTER
48147-36051

LY60,YY5#,6#..ST

 2
Common parts
94110-51000

(8508- )

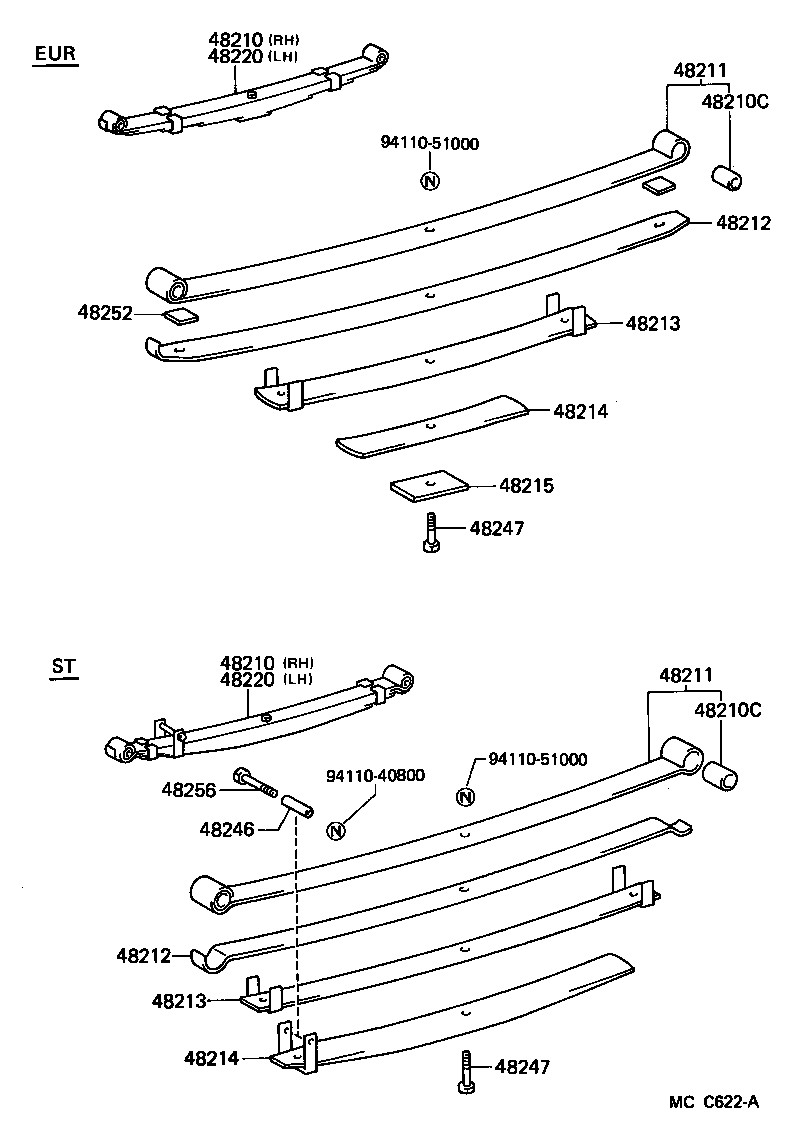

Click highlighted areas on diagram

diagram 48210 48210 48210C 48210C 48211 48211 48212 48212 48213 48213 48214 48214 48215 48220 48220 48246 48247 48247 48252 48256 9411040800 9411051000 9411051000
Part # Description Qty Price
48210 - SPRING ASSY, REAR RH
48210-25370

LY60,YY51,6#..ST

4-LEAF

 1
48210-25580

YY5#,6#..ST;LY60..T3..ST;LY60..TW..GEN

4-LEAF

 1
48210 - SPRING ASSY, REAR RH
48210-25370

LY60,YY51,6#..ST

4-LEAF

 1
48210-25580

YY5#,6#..ST;LY60..T3..ST;LY60..TW..GEN

4-LEAF

 1
48210C - BUSH(FOR REAR SPRING LEAF)
48299-25140

LY60,YY51,6#

 4
48210C - BUSH(FOR REAR SPRING LEAF)
48299-25140

LY60,YY51,6#

 4
48211 - LEAF, REAR SPRING, NO.1
48201-25370

LY60,YY51,60..LHD..GEN

 2
48201-25580

LY60,YY5#,6#..LHD..GEN

 2
48211 - LEAF, REAR SPRING, NO.1
48201-25370

LY60,YY51,60..LHD..GEN

 2
48201-25580

LY60,YY5#,6#..LHD..GEN

 2
48212 - LEAF, REAR SPRING, NO.2
48212-25580

LY60,YY5#,6#..LHD..GEN

 2
48212-25370

LY60,YY51,60..LHD..GEN

 2
48212 - LEAF, REAR SPRING, NO.2
48212-25580

LY60,YY5#,6#..LHD..GEN

 2
48212-25370

LY60,YY51,60..LHD..GEN

 2
48213 - LEAF, REAR SPRING, NO.3
48202-25370

LY60,YY51,60..LHD..GEN

 2
48202-25580

LY60,YY5#,6#..LHD..GEN

 2
48213 - LEAF, REAR SPRING, NO.3
48202-25370

LY60,YY51,60..LHD..GEN

 2
48202-25580

LY60,YY5#,6#..LHD..GEN

 2
48214 - LEAF, REAR SPRING, NO.4
48203-25580

LY60,YY5#,6#..LHD..GEN

 2
48203-25370

LY60,YY51,60..LHD..GEN

 2
48214 - LEAF, REAR SPRING, NO.4
48203-25580

LY60,YY5#,6#..LHD..GEN

 2
48203-25370

LY60,YY51,60..LHD..GEN

 2
48220 - SPRING ASSY, REAR LH
48210-25370

LY60,YY51,60..LHD..GEN

4-LEAF

 1
48210-25580

LY60,YY5#,6#..LHD..GEN

4-LEAF

 1
48220 - SPRING ASSY, REAR LH
48210-25370

LY60,YY51,60..LHD..GEN

4-LEAF

 1
48210-25580

LY60,YY5#,6#..LHD..GEN

4-LEAF

 1
48246 - CASE, REAR SPRING CLIP BOLT
48146-60010

LY60,YY5#,6#..ST

 4
48247 - BOLT, REAR SPRING, CENTER
48147-36051

LY60,YY5#,6#..ST

 2
48247 - BOLT, REAR SPRING, CENTER
48147-36051

LY60,YY5#,6#..ST

 2
48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET)
48256-25050

LY60,YY5#,6#..ST

 2
Common parts
94110-40800
94110-51000
