LY60L-MDB (1985)

Toyota Dyna150

Production Aug 1985 - Aug 1987
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )LHD

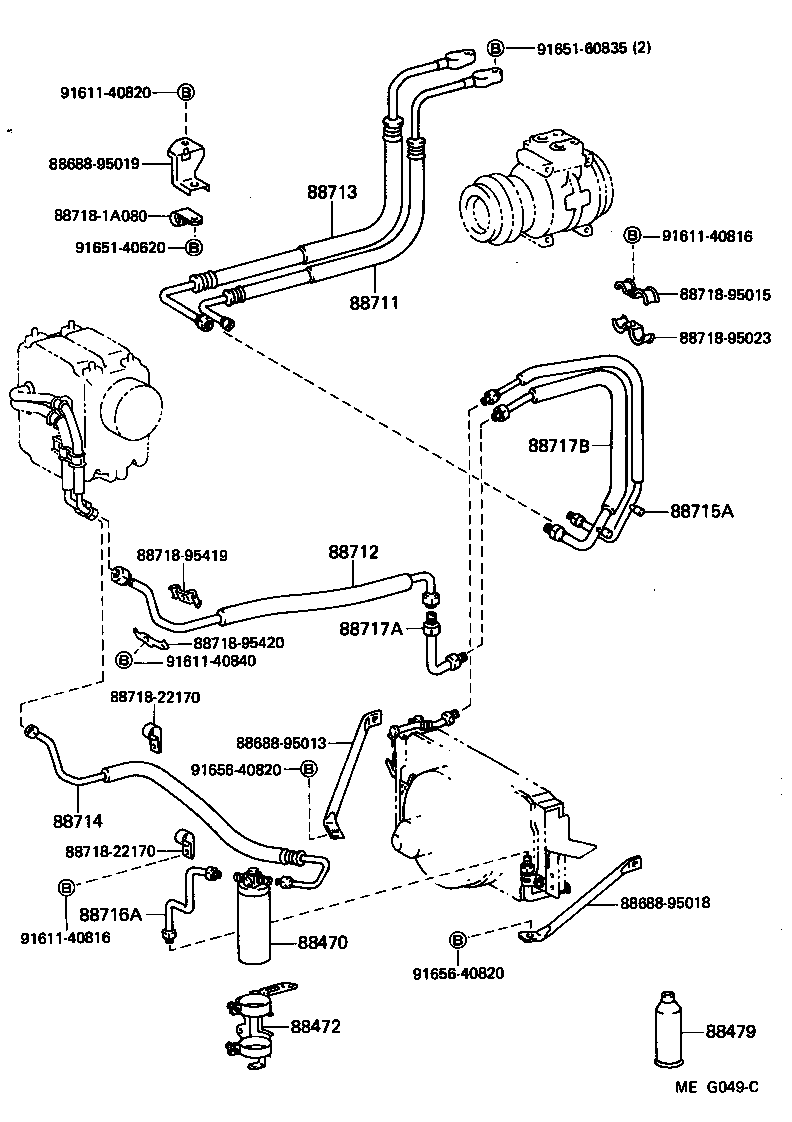

Click highlighted areas on diagram

MAKER OPTION

diagram 88470 88472 88479 8868895013 8868895018 8868895019 88711 88712 88713 88714 88715A 88716A 88717A 88717B 887181A080 8871822170 8871822170 8871895015 8871895023 8871895419 8871895420 9161140816 9161140816 9161140820 9161140840 9165140620 9165160835 9165640820 9165640820
Part # Description Qty Price
88470 - RECEIVER & DRYER ASSY, COOLER
88471-95700

YY5#,6#..GEN

DEALER OPTION

 1
88471-95401

LY60,YY5#,60..ST

MAKER OPTION

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95010

LY60,YY5#,6#..ARL,GEN

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

LY60,YY5#,6#..ARL,GEN

400G

 2
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-95013

LY60..ST

MAKER OPTION

 1
88711-95012

YY5#,60

MAKER OPTION

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95015

LY60,YY5#,6#..LHD..GEN

 1
88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2
88712-95018

YY5#,60

MAKER OPTION

 1
88712-95019

LY60..ST

MAKER OPTION

 1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-95013

LY60,YY5#,6#..LHD..GEN

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-95010

LY60,YY5#,6#..ARL,GEN

 1
88715-95011

LY60,YY52,6#..ARL,GEN

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95014

LY60,YY5#,6#..ARL,GEN

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-95012

LY60,YY5#,6#..LHD..GEN

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-95013

LY60,YY5#,6#..LHD..GEN

 1
Common parts
88688-95013
88688-95018
88688-95019
88718-1A080
88718-22170
88718-95015
88718-95023
88718-95419
88718-95420
91611-40816
91611-40820
91611-40840
91651-40620
91651-60835
91656-40820

(8508- )

Click highlighted areas on diagram

MAKER OPTION

diagram 87138S 88460 88461A 88550 88717A 8871895024 9017908065 9165640820 9331515016
Part # Description Qty Price
87138S - RESISTOR, BLOWER
88539-95410

LY60,YY52,60..ST

 1
88460 - CONDENSER ASSY, COOLER
88460-95016

LY60,YY5#,6#..LHD..GEN

 1
88461A - CORE, COOLER CONDENSER
88461-95010

LY60,YY5#,60..ST

MAKER OPTION

 1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
87104-95011

LY60,YY5#,60..ST

MAKER OPTION

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-95012

LY60,YY5#,6#..LHD..GEN

 1
Common parts
88718-95024
90179-08065
91656-40820
93315-15016

(8508- )LHD

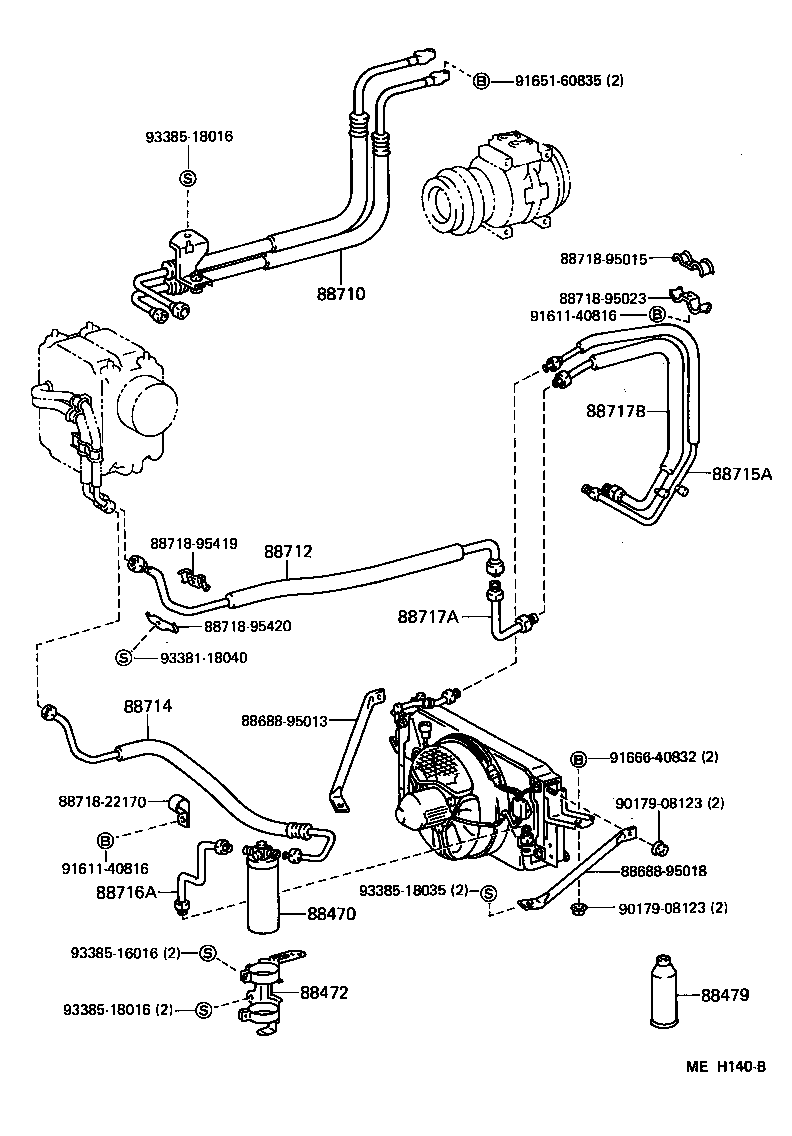

Click highlighted areas on diagram

DEALER OPTION

diagram 88470 88472 88479 8868895013 8868895018 88710 88712 88714 88715A 88716A 88717A 88717B 8871822170 8871895015 8871895023 8871895419 8871895420 9017908123 9017908123 9161140816 9161140816 9165160835 9166640832 9338118040 9338516016 9338518016 9338518016 9338518035
Part # Description Qty Price
88470 - RECEIVER & DRYER ASSY, COOLER
88471-95700

YY5#,6#..GEN

DEALER OPTION

 1
88471-95401

LY60,YY5#,60..ST

MAKER OPTION

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-95010

LY60,YY5#,6#..ARL,GEN

 1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

LY60,YY5#,6#..ARL,GEN

400G

 2
88710 - TUBE ASSY, AIR CONDITIONER
88710-95010

YY5#,6#..GEN

DEALER OPTION

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-95015

LY60,YY5#,6#..LHD..GEN

 1
88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1
88721-95013

LY60,YY5#,6#..LHD..GEN

 1
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-95010

LY60,YY5#,6#..ARL,GEN

 1
88715-95011

LY60,YY52,6#..ARL,GEN

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-95014

LY60,YY5#,6#..ARL,GEN

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-95012

LY60,YY5#,6#..LHD..GEN

 1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-95013

LY60,YY5#,6#..LHD..GEN

 1
Common parts
88688-95013
88688-95018
88718-22170
88718-95015
88718-95023
88718-95419
88718-95420
90179-08123
91611-40816
91651-60835
91666-40832
93381-18040
93385-16016
93385-18016
93385-18035
