LY60L-MDB (1985)
Toyota Dyna150

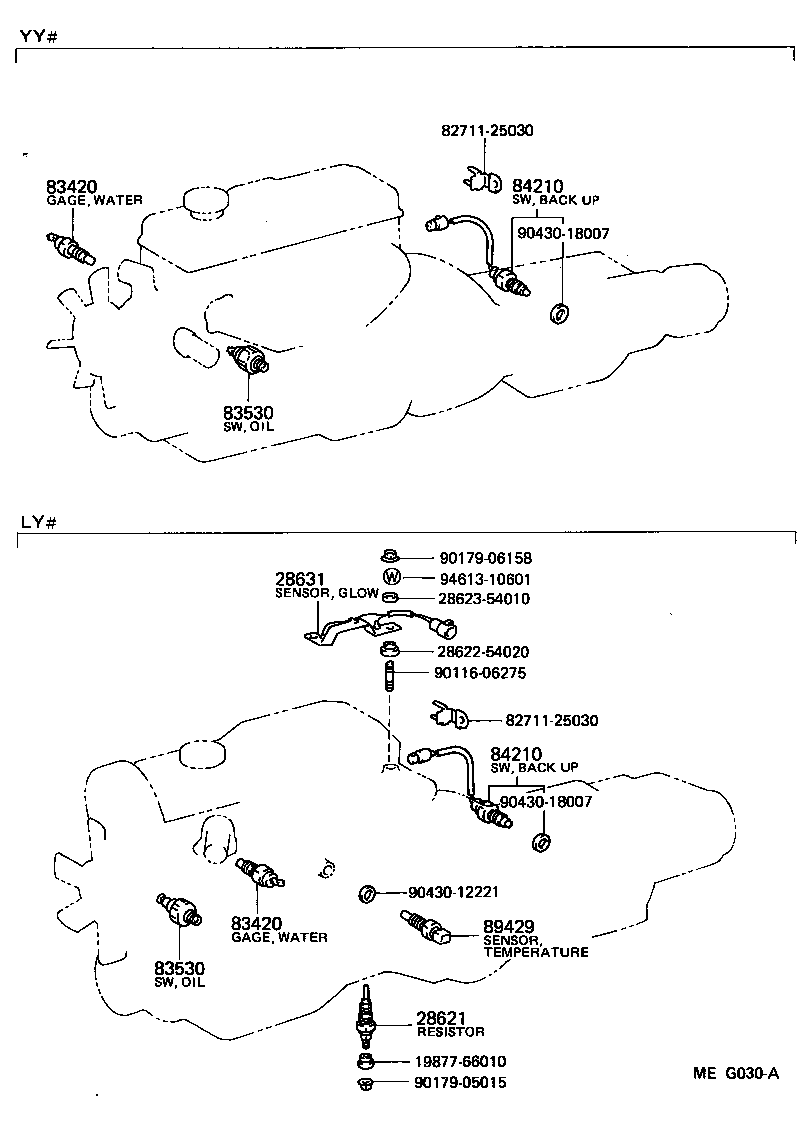

(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
LY60,YY5#,6# |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
LY60,YY5#,6# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14030 |
YY5#,6# |
1 | ||
| 83530-30060 |
LY60 |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-14030 |
YY5#,6# |
1 | ||
| 83530-30060 |
LY60 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
LY60,YY5#,6# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
LY60,YY5#,6# |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 28622-54020 | ||||
| 28623-54010 | ||||
| 82711-25030 | ||||
| 90116-06275 | ||||
| 90179-05015 | ||||
| 90179-06158 | ||||
| 90430-12221 | ||||
| 90430-18007 | ||||
| 94613-10601 | ||||

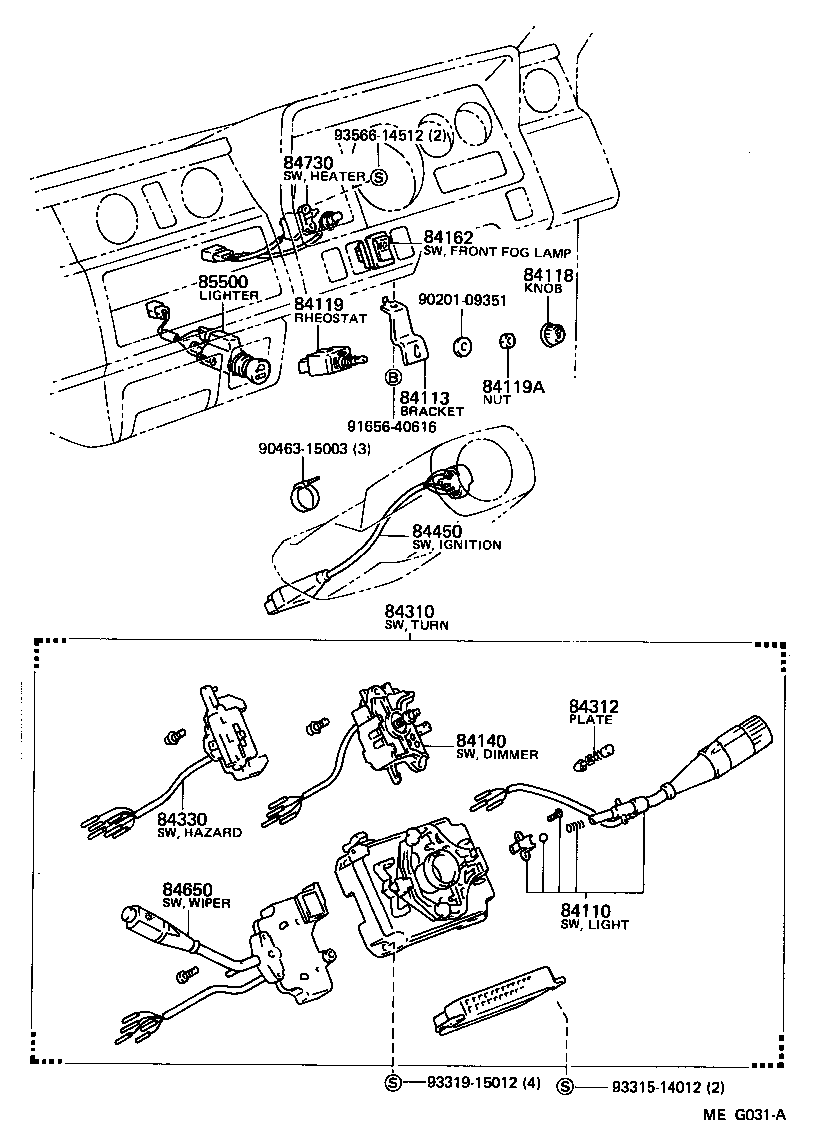

(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-39285 |
LY60,YY5#,6#..LHD |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-39125 |
LY60,YY5#,6#..LHD |
1 | ||
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-95400 |
LY60,YY5#,6#..GEN |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-26140 |
LY60,YY5#,6#..LHD |
1 | ||
| 84310-36330 |
LY60,YY5#,6#..LHD W/*IW |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
LY60,YY5#,6# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-39255 |
LY60,YY5#,6#..LHD |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-36030 |
YY5#,6# |
1 | ||
| 84510-36100 |
LY60..GEN |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-39565 |
LY60,YY5#,6#..LHD W/*IW |
1 | ||
| 84652-26110 |
LY60,YY5#,6#..LHD |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-95404 |
LY60,YY5#,6# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-95A04 |
LY60,YY5#,6# |
1 | ||
| Common parts | ||||
| 90201-09351 | ||||
| 90463-15003 | ||||
| 91656-40616 | ||||
| 93315-14012 | ||||
| 93319-15012 | ||||
| 93566-14512 | ||||

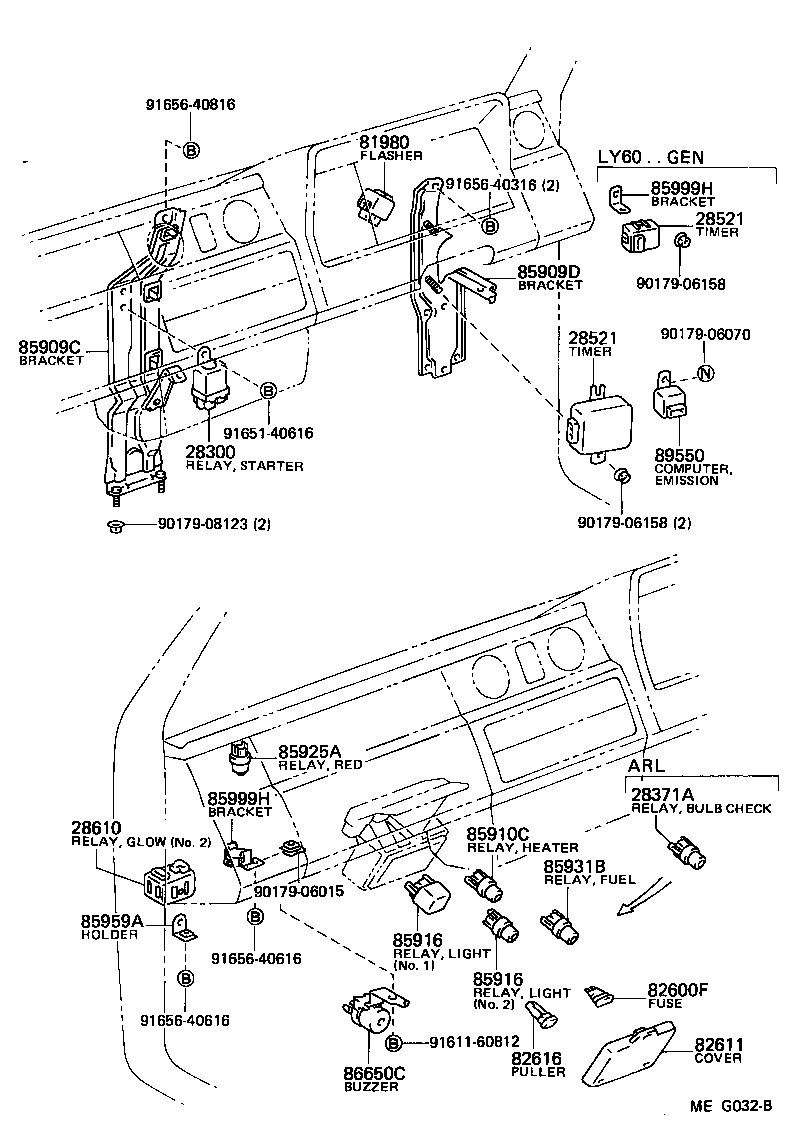

(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-48010 |
2L..LY60 |
1 | ||
| 28521 - TIMER, PREHEATING | ||||
| 28521-54021 |
2L..LY60..GEN |
1 | ||
| 28521 - TIMER, PREHEATING | ||||
| 28521-54021 |
2L..LY60..GEN |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-54021 |
2L..LY60 NO.2 |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-16010 |
LY60,YY5#,6# |
1 | ||
| 81980-22070 |
YY61..GEN;LY60,YY51,60 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09003 |
LY60,YY5#,6# 15A,15A |
8 | ||
| 90982-09004 |
LY60,YY5#,6# 20A,YELLOW,20A |
2 | ||
| 90982-09005 |
LY60,YY5#,6# 7.5A,7.5A |
5 | ||
| 90982-09002 |
LY60,YY5#,6# 10A,10A |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-95010 |
LY60,YY51,6# |
1 | ||
| 82611-95011 |
LY60,YY52,6# |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
LY60,YY5#,6# |
1 | ||
| 85909C - BRACKET SUB-ASSY, RELAY, NO.1 | ||||
| 85909-95011 |
LY60,YY5#,6#..LHD |
1 | ||
| 85909D - BRACKET SUB-ASSY, RELAY, NO.2 | ||||
| 85907-95401 |
LY60,YY5#,6#..LHD |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-02004 |
LY60 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
LY60,YY5#,6# NO.1 |
1 | ||
| 90987-01003 |
LY60,YY5#,6# NO.2 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
LY60,YY5#,6# NO.1 |
1 | ||
| 90987-01003 |
LY60,YY5#,6# NO.2 |
1 | ||
| 85959A - HOLDER, RELAY | ||||
| 85959-36010 |
LY60 |
1 | ||
| 85999H - BRACKET, RELAY | ||||
| 85999-89101 |
LY60..GEN |
1 | ||
| 85999H - BRACKET, RELAY | ||||
| 85999-89101 |
LY60..GEN |
1 | ||
| 86650C - BUZZER ASSY, SEDIMENTER WARNING | ||||
| 86650-95A05 |
LY60..ARL,GEN |
1 | ||
| Common parts | ||||
| 90179-06015 | ||||
| 90179-06070 | ||||
| 90179-06158 | ||||
| 90179-08123 | ||||
| 91611-60812 | ||||
| 91651-40616 | ||||
| 91656-40316 | ||||
| 91656-40616 | ||||
| 91656-40816 | ||||

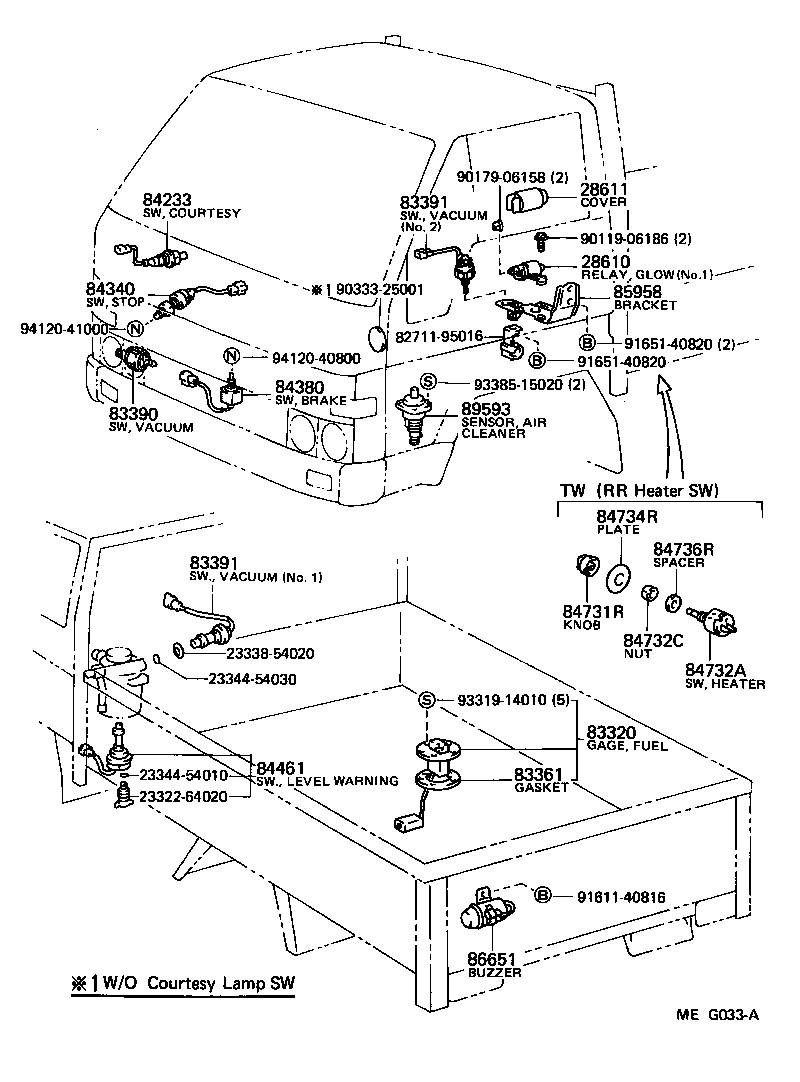

(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-54021 |
2L..LY60 NO.2 |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-39565 |
LY60,YY5#,6# |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
LY60,YY5#,6# |
1 | ||
| 83390 - SWITCH ASSY, VACUUM WARNING | ||||
| 83390-60010 |
LY60 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-20080 |
LY60,YY5#,6# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22072 |
LY60,YY5#,6# |
1 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84380-35010 |
LY60,YY5#,6# |
1 | ||
| 84461 - SWITCH, LEVEL WARNING | ||||
| 84461-14030 |
LY60 |
1 | ||
| 84461-35030 |
LY60 |
1 | ||
| 85958 - BRACKET, MAIN RELAY | ||||
| 85958-95010 |
LY60,YY6#..T2,T3 |
1 | ||
| 86651 - BUZZER ASSY, BACK | ||||
| 86650-95A04 |
LY60,YY5#,6# |
1 | ||
| 89593 - SENSOR, AIR CLEANER WARNING | ||||
| 89593-26010 |
LY60 |
1 | ||
| Common parts | ||||
| 23322-64020 | ||||
| 23338-54020 | ||||
| 23344-54010 | ||||
| 23344-54030 | ||||
| 82711-95016 | ||||
| 90119-06186 | ||||
| 90179-06158 | ||||
| 90333-25001 | ||||
| 91611-40816 | ||||
| 91651-40820 | ||||
| 93319-14010 | ||||
| 93385-15020 | ||||
| 94120-40800 | ||||
| 94120-41000 | ||||
