LY60L-MDB (1985)

Toyota Dyna150

Production Aug 1985 - Aug 1987
Engine 2L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

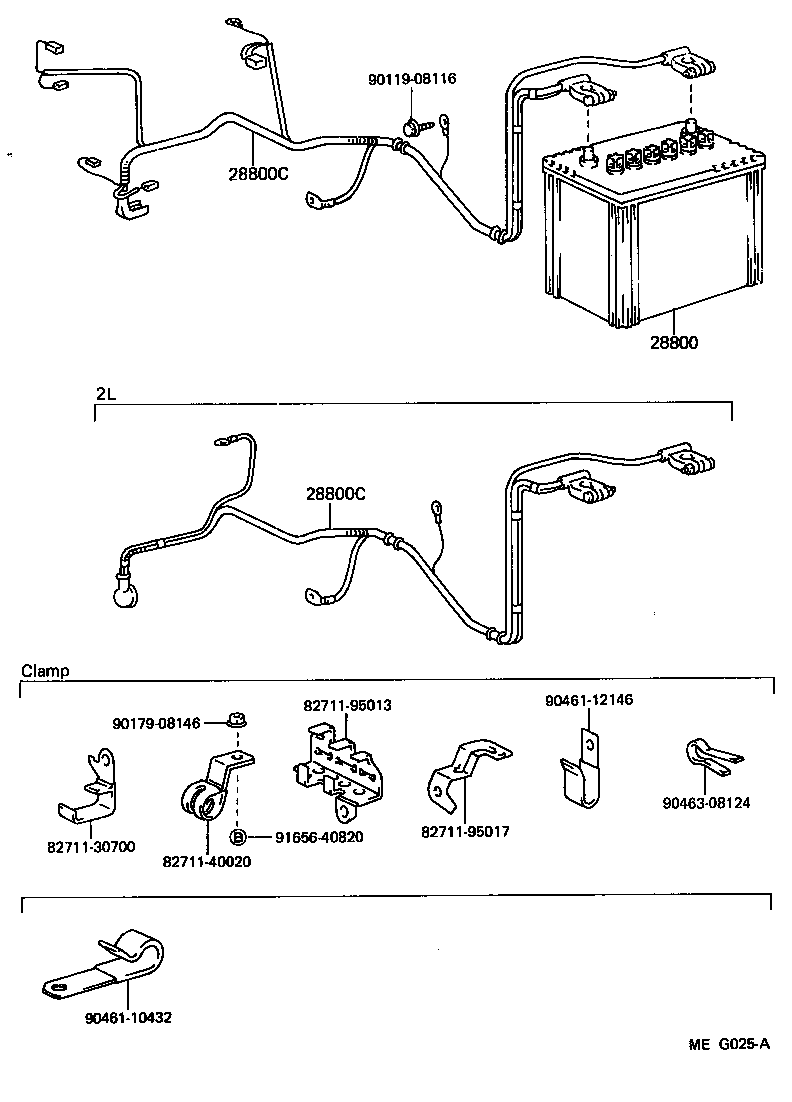

Click highlighted areas on diagram

diagram 28800 28800C 28800C 8271130700 8271140020 8271195013 8271195017 9011908116 9017908146 9046110432 9046112146 9046308124 9165640820
Part # Description Qty Price
28800 - BATTERY
28800-46012

2L..LY60

75D31R,75D31R(N70Z)

 1
28800-54030

2L..LY60..GEN

95D31L,95D31L(NX120-7L)

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82021-95043

2L..LY60..T3

75D31R(N70Z)

 1
82021-95044

2L..LY60..T3..GEN

95D31L(NX120-7L)

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82021-95043

2L..LY60..T3

75D31R(N70Z)

 1
82021-95044

2L..LY60..T3..GEN

95D31L(NX120-7L)

 1
Common parts
82711-30700
82711-40020
82711-95013
82711-95017
90119-08116
90179-08146
90461-10432
90461-12146
90463-08124
91656-40820
