YH81R-MDPQ (1987)

Toyota Dyna100

Production Aug 1987 - Mar 1992
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

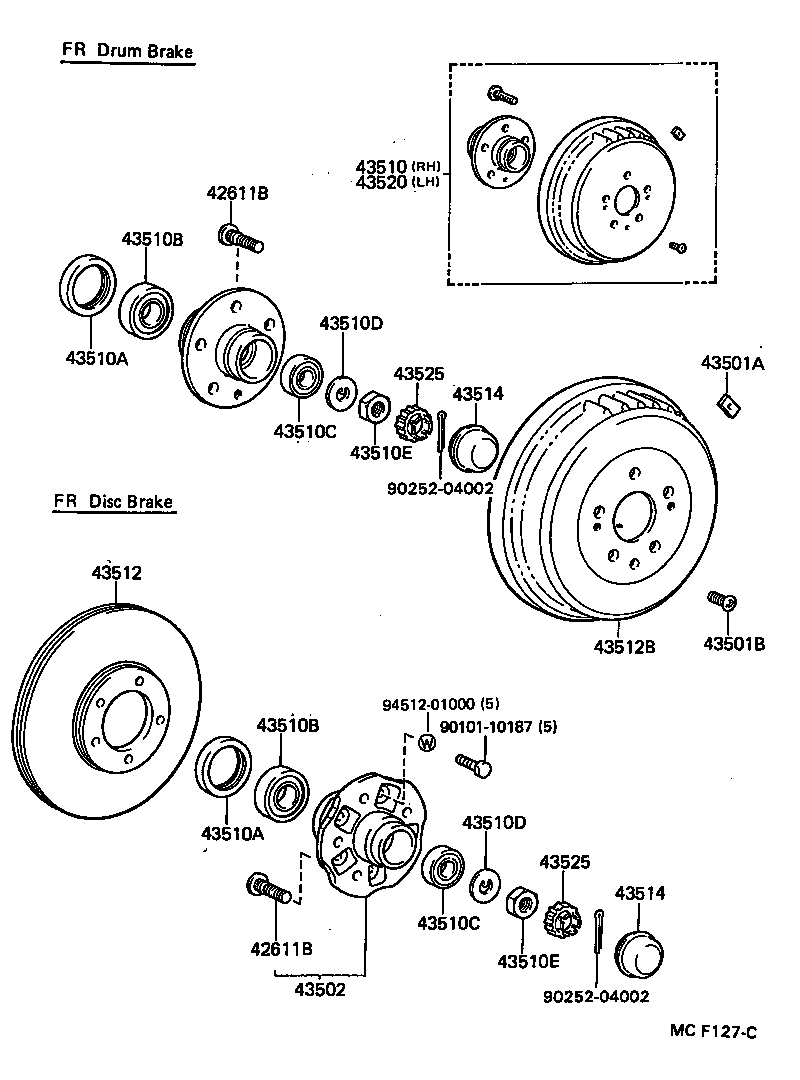

Click highlighted areas on diagram

diagram 42611B 42611B 43501A 43501B 43502 43510 43510A 43510A 43510B 43510B 43510C 43510C 43510D 43510D 43510E 43510E 43512 43512B 43514 43514 43520 43525 43525 9010110187 9025204002 9025204002 9451201000
Part # Description Qty Price
42611B - BOLT, HUB (FOR FRONT AXLE)
90942-02047

LH80,YH81..ARL,EUR

 1
42611B - BOLT, HUB (FOR FRONT AXLE)
90942-02047

LH80,YH81..ARL,EUR

 1
43502 - HUB SUB-ASSY, FRONT AXLE
43502-26050

YH81;LH80..IV;LH80..EUR..CBU

 1
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90311-50005

LH80,YH81

 2
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90311-50005

LH80,YH81

 2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90368-34001

LH80,YH81

 2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90368-34001

LH80,YH81

 2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90368-21001

LH80,YH81

 2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90368-21001

LH80,YH81

 2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-20007

LH80,YH81

 2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-20007

LH80,YH81

 2
43510E - NUT (FOR STEERING KNUCKLE)
90170-19185

LH80,YH81

 2
43510E - NUT (FOR STEERING KNUCKLE)
90170-19185

LH80,YH81

 2
43512 - DISC, FRONT
43512-26040

YH81;LH80..IV;LH80..EUR..CBU

 2
43514 - CAP, FRONT HUB GREASE
43514-35010

LH80,YH81

 2
43514 - CAP, FRONT HUB GREASE
43514-35010

LH80,YH81

 2
43525 - CAP, FRONT WHEEL ADJUSTING LOCK
43525-22010

LH80,YH81

 2
43525 - CAP, FRONT WHEEL ADJUSTING LOCK
43525-22010

LH80,YH81

 2
Common parts
90101-10187
90252-04002
94512-01000
