YH81R-MDBQ3 (1985)

Toyota Dyna100

Production Aug 1985 - Aug 1987
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

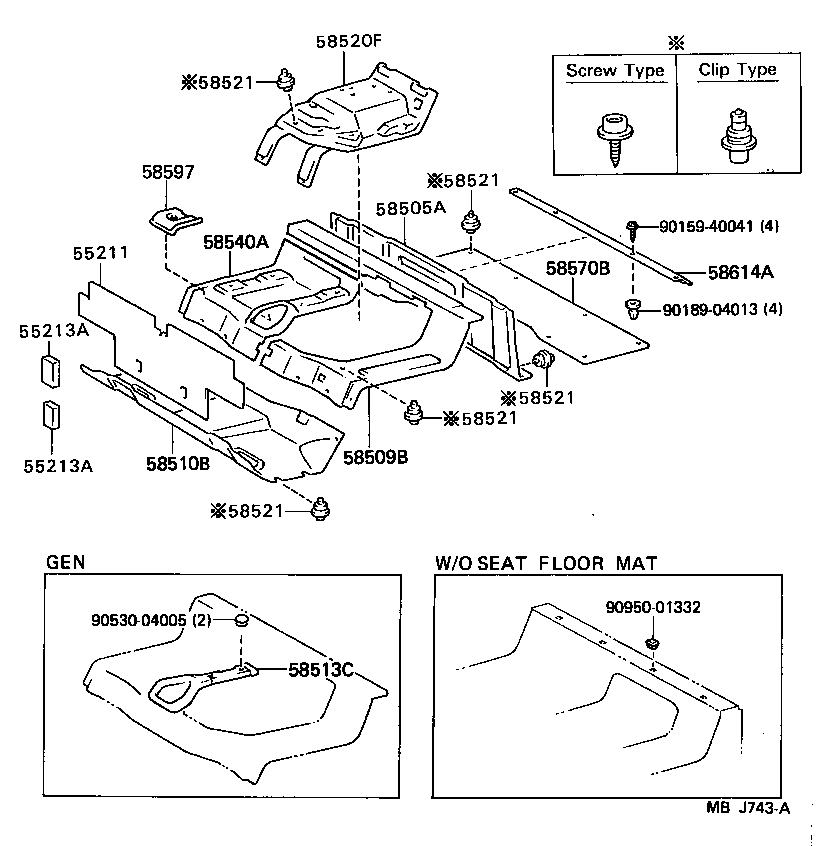

Click highlighted areas on diagram

diagram 55211 55213A 55213A 58505A 58509B 58510B 58513C 58520F 58521 58521 58521 58521 58521 58540A 58570B 58597 58614A 9015940041 9018904013 9053004005 9095001332
Part # Description Qty Price
55213A - PAD, DASH PANEL SILENCER
55213-95401

LH80,YH8#

LWR

 1
55213-95400

LH80,YH8#

UPR

 1
55213A - PAD, DASH PANEL SILENCER
55213-95401

LH80,YH8#

LWR

 1
55213-95400

LH80,YH8#

UPR

 1
58509B - MAT SUB-ASSY, SEAT FLOOR
58509-9501503

LH80,YH81..ARL..IV

GRAY,SHADOW GRAY

 1
58510B - MAT, FRONT FLOOR, FRONT
58510-9504203

LH80,YH81..ARL

GRAY,SHADOW GRAY

 1
58520F - MAT ASSY, ENGINE COVER
58520-9501403

LH80,YH81..ARL

GRAY,SHADOW GRAY

 1
58521 - HOOK, MALE, NO.1
90530-06001

LH80,YH8#

CLIP TYPE

 1
58521 - HOOK, MALE, NO.1
90530-06001

LH80,YH8#

CLIP TYPE

 1
58521 - HOOK, MALE, NO.1
90530-06001

LH80,YH8#

CLIP TYPE

 1
58521 - HOOK, MALE, NO.1
90530-06001

LH80,YH8#

CLIP TYPE

 1
58521 - HOOK, MALE, NO.1
90530-06001

LH80,YH8#

CLIP TYPE

 1
58540A - MAT ASSY, FRONT FLOOR, REAR NO.1
58540-9501303

LH80,YH81..5F..ARL

GRAY,SHADOW GRAY

 1
Common parts
90159-40041
90189-04013
90530-04005
90950-01332
