YH81R-MDBQ3 (1985)

Toyota Dyna100

Production Aug 1985 - Aug 1987
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

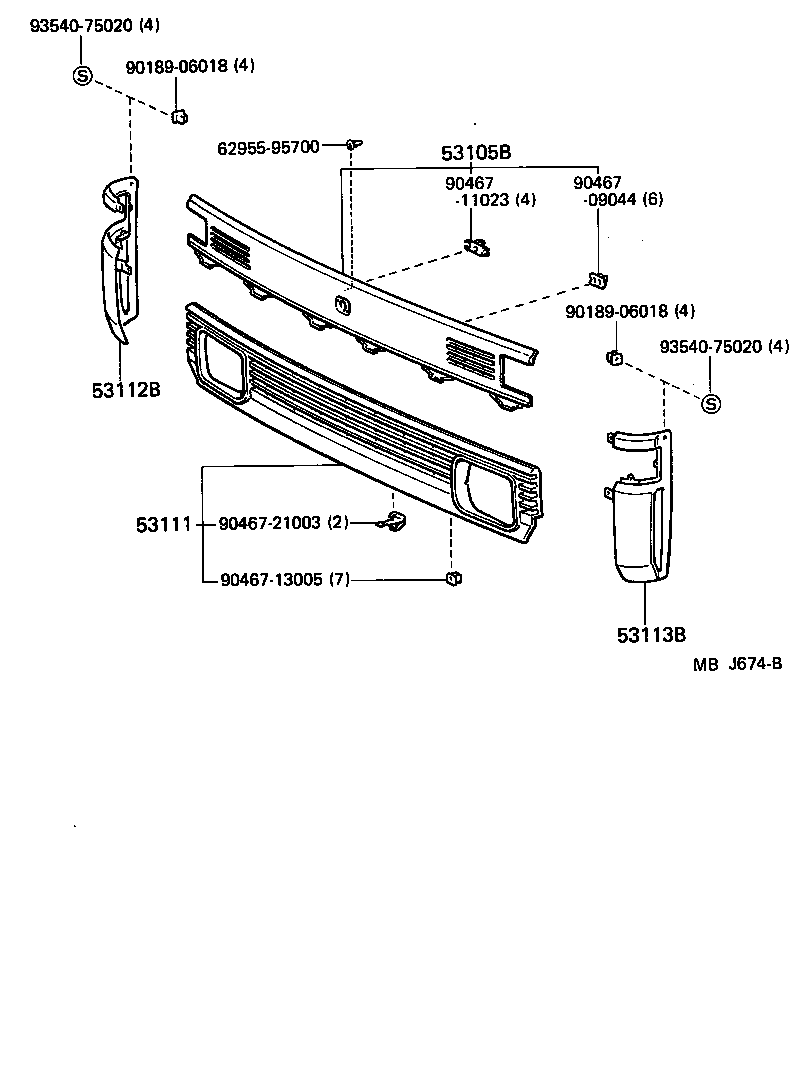

Click highlighted areas on diagram

diagram 53105B 53111 53112B 53113B 6295595700 9018906018 9018906018 9046709044 9046711023 9046713005 9046721003 9354075020 9354075020
Part # Description Qty Price
53105B - GARNISH SUB-ASSY, RADIATOR GRILLE
53105-95A01

LH80,YH8#

 1
53111 - GRILLE, RADIATOR
53111-95A00

LH80,YH8#

 1
53112B - GRILLE, RADIATOR SIDE, RH
53112-95A00

LH80,YH8#

 1
53113B - GRILLE, RADIATOR SIDE, LH
53113-95A00

LH80,YH8#

 1
Common parts
62955-95700
90189-06018
90467-09044
90467-11023
90467-13005
90467-21003
93540-75020
