YH81R-MDBQ3 (1985)

Toyota Dyna100

Production Aug 1985 - Aug 1987
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )1Y,2Y

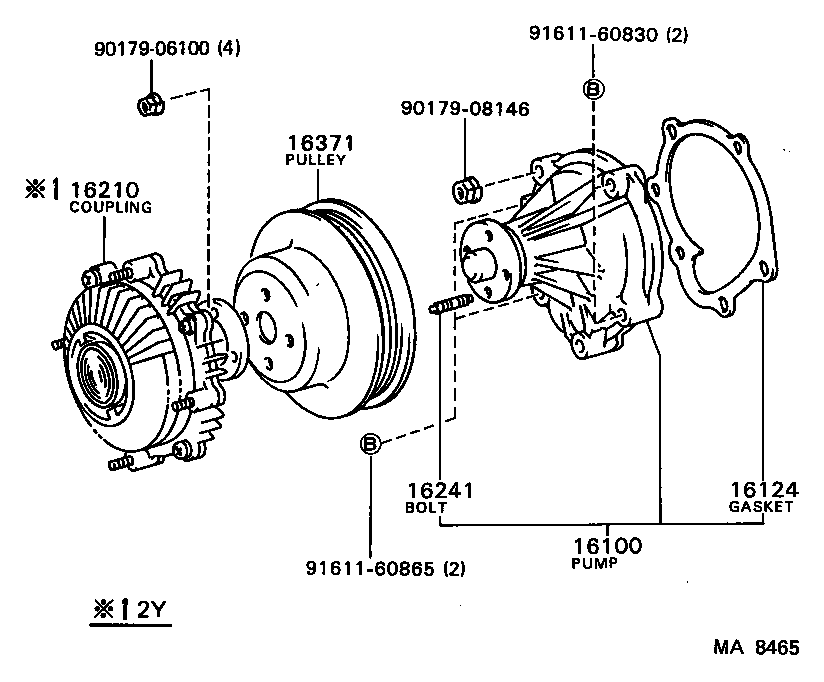

Click highlighted areas on diagram

diagram 16100 16124 16210 16241 16371 9017906100 9017908146 9161160830 9161160865
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-79036

1Y,2Y..YH8#

 1
16100-79035

1Y,2Y..YH8#

 1
16124 - GASKET, WATER PUMP COVER
16124-71010

1Y,2Y..YH8#

 1
16210 - COUPLING ASSY, FLUID
16210-73010

2Y..YH81

 1
16241 - BOLT, STUD(FOR WATER PUMP COUPLING)
16192-70010

1Y,2Y..YH8#

 4
16371 - PULLEY, FAN
16371-73011

1Y,2Y..YH8#

 1
Common parts
90179-06100
90179-08146
91611-60830
91611-60865
