YH81R-MDBQ3 (1987)

Toyota Dyna100

Production Aug 1987 - May 1995
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

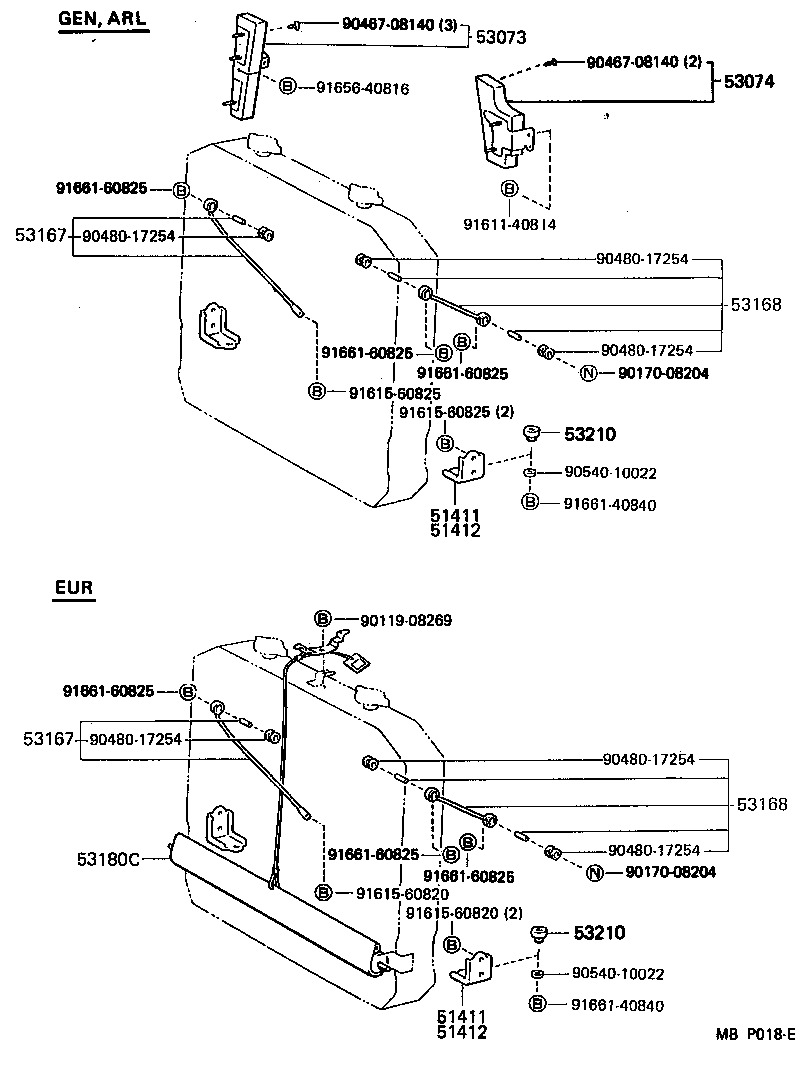

Click highlighted areas on diagram

diagram 51411 51411 51412 51412 53073 53074 53167 53167 53168 53168 53180C 53210 53210 9011908269 9017008204 9017008204 9046708140 9046708140 9048017254 9048017254 9048017254 9048017254 9048017254 9048017254 9054010022 9054010022 9161140814 9161560820 9161560820 9161560825 9161560825 9165640816 9166140840 9166140840 9166160825 9166160825 9166160825 9166160825 9166160825 9166160825
Part # Description Qty Price
51411 - BRACKET, RADIATOR SUPPORT, RH
51411-26010

LH80,YH81

 1
51411 - BRACKET, RADIATOR SUPPORT, RH
51411-26010

LH80,YH81

 1
51412 - BRACKET, RADIATOR SUPPORT, LH
51411-26010

LH80,YH81

 1
51412 - BRACKET, RADIATOR SUPPORT, LH
51411-26010

LH80,YH81

 1
53167 - ROD, RADIATOR BRACE, RH
53016-26020

LH80,YH81

 1
53167 - ROD, RADIATOR BRACE, RH
53016-26020

LH80,YH81

 1
53168 - ROD, RADIATOR BRACE, LH
53018-26010

LH80,YH81

 1
53168 - ROD, RADIATOR BRACE, LH
53018-26010

LH80,YH81

 1
53210 - SUPPORT ASSY, RADIATOR
53210-26010

LH80,YH81

 2
53210 - SUPPORT ASSY, RADIATOR
53210-26010

LH80,YH81

 2
Common parts
90119-08269
90170-08204
90467-08140
90480-17254
90540-10022
91611-40814
91615-60820
91615-60825
91656-40816
91661-40840
91661-60825
