YH81R-MDB3 (1987)
Toyota Dyna100

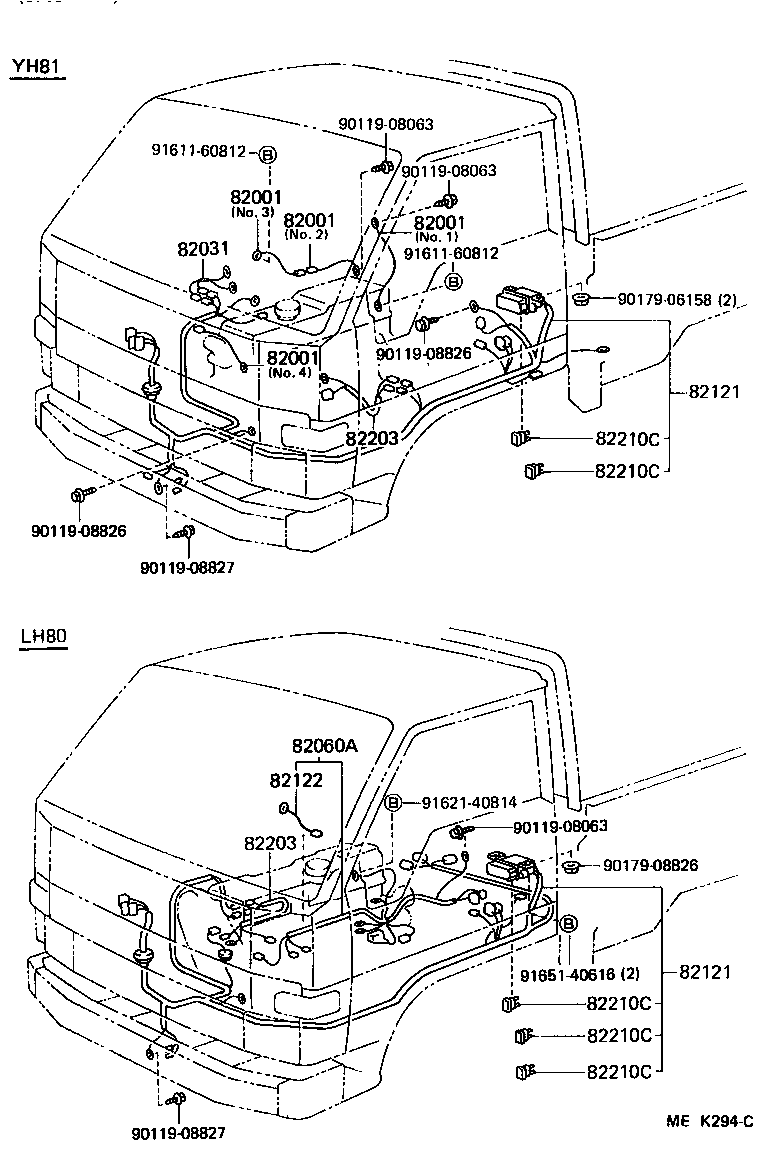

ILLUST NO. 1 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07256 |
YH81 NO.4 |
1 | ||
| 90980-07256 |
YH81..ARL,GEN NO.4 |
1 | ||
| 90980-07181 |
YH81 NO.1,L=460 |
1 | ||
| 90980-07228 |
YH81 NO.2,L=170 |
1 | ||
| 90980-07227 |
YH81 NO.3,L=300 |
1 | ||
| 90980-07317 |
YH81 NO.3,L=300 |
1 | ||
| 90980-07291 |
YH81 NO.2,L=170 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07256 |
YH81 NO.4 |
1 | ||
| 90980-07256 |
YH81..ARL,GEN NO.4 |
1 | ||
| 90980-07181 |
YH81 NO.1,L=460 |
1 | ||
| 90980-07228 |
YH81 NO.2,L=170 |
1 | ||
| 90980-07227 |
YH81 NO.3,L=300 |
1 | ||
| 90980-07317 |
YH81 NO.3,L=300 |
1 | ||
| 90980-07291 |
YH81 NO.2,L=170 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07256 |
YH81 NO.4 |
1 | ||
| 90980-07256 |
YH81..ARL,GEN NO.4 |
1 | ||
| 90980-07181 |
YH81 NO.1,L=460 |
1 | ||
| 90980-07228 |
YH81 NO.2,L=170 |
1 | ||
| 90980-07227 |
YH81 NO.3,L=300 |
1 | ||
| 90980-07317 |
YH81 NO.3,L=300 |
1 | ||
| 90980-07291 |
YH81 NO.2,L=170 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07256 |
YH81 NO.4 |
1 | ||
| 90980-07256 |
YH81..ARL,GEN NO.4 |
1 | ||
| 90980-07181 |
YH81 NO.1,L=460 |
1 | ||
| 90980-07228 |
YH81 NO.2,L=170 |
1 | ||
| 90980-07227 |
YH81 NO.3,L=300 |
1 | ||
| 90980-07317 |
YH81 NO.3,L=300 |
1 | ||
| 90980-07291 |
YH81 NO.2,L=170 |
1 | ||
| 82031 - WIRE SUB-ASSY, IGNITION COIL | ||||
| 82031-95010 |
YH81..EUR,GEN |
1 | ||
| 82031-95010 |
YH81 |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-95A38 |
YH81..RHD..GEN |
1 | ||
| 82121-95A64 |
YH81..RHD..GEN |
1 | ||
| 82121-26110 |
YH81..RHD..GEN |
1 | ||
| 82121-26111 |
YH81..RHD..GEN |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-95A38 |
YH81..RHD..GEN |
1 | ||
| 82121-95A64 |
YH81..RHD..GEN |
1 | ||
| 82121-26110 |
YH81..RHD..GEN |
1 | ||
| 82121-26111 |
YH81..RHD..GEN |
1 | ||
| 82203 - WIRE SUB-ASSY, ALTERNATOR | ||||
| 82203-95A06 |
YH81 |
1 | ||
| 82203-95015 |
YH81 |
1 | ||
| 82203-26050 |
YH81 |
1 | ||
| 82203 - WIRE SUB-ASSY, ALTERNATOR | ||||
| 82203-95A06 |
YH81 |
1 | ||
| 82203-95015 |
YH81 |
1 | ||
| 82203-26050 |
YH81 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
LH80,YH81 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08202 |
LH80..GEN;YH81..EUR,GEN 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08189 |
LH80..4FC;LH80,YH81..EUR,GEN 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08202 |
YH81;LH80..GEN 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08189 |
LH80,YH81 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08202 |
YH81;LH80..RHD..5F 60A,TERM.:MALE,YEL |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
LH80,YH81 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08202 |
LH80..GEN;YH81..EUR,GEN 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08189 |
LH80..4FC;LH80,YH81..EUR,GEN 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08202 |
YH81;LH80..GEN 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08189 |
LH80,YH81 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08202 |
YH81;LH80..RHD..5F 60A,TERM.:MALE,YEL |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
LH80,YH81 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08202 |
LH80..GEN;YH81..EUR,GEN 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08189 |
LH80..4FC;LH80,YH81..EUR,GEN 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08202 |
YH81;LH80..GEN 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08189 |
LH80,YH81 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08202 |
YH81;LH80..RHD..5F 60A,TERM.:MALE,YEL |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
LH80,YH81 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08202 |
LH80..GEN;YH81..EUR,GEN 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08189 |
LH80..4FC;LH80,YH81..EUR,GEN 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08202 |
YH81;LH80..GEN 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08189 |
LH80,YH81 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08202 |
YH81;LH80..RHD..5F 60A,TERM.:MALE,YEL |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08189 |
LH80,YH81 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08202 |
LH80..GEN;YH81..EUR,GEN 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08189 |
LH80..4FC;LH80,YH81..EUR,GEN 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08202 |
YH81;LH80..GEN 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08189 |
LH80,YH81 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08202 |
YH81;LH80..RHD..5F 60A,TERM.:MALE,YEL |
1 | ||
| Common parts | ||||
| 90119-08063 | ||||
| 90119-08826 | ||||
| 90119-08827 | ||||
| 90179-06158 | ||||
| 90179-08826 | ||||
| 91611-60812 | ||||
| 91621-40814 | ||||
| 91651-40616 | ||||

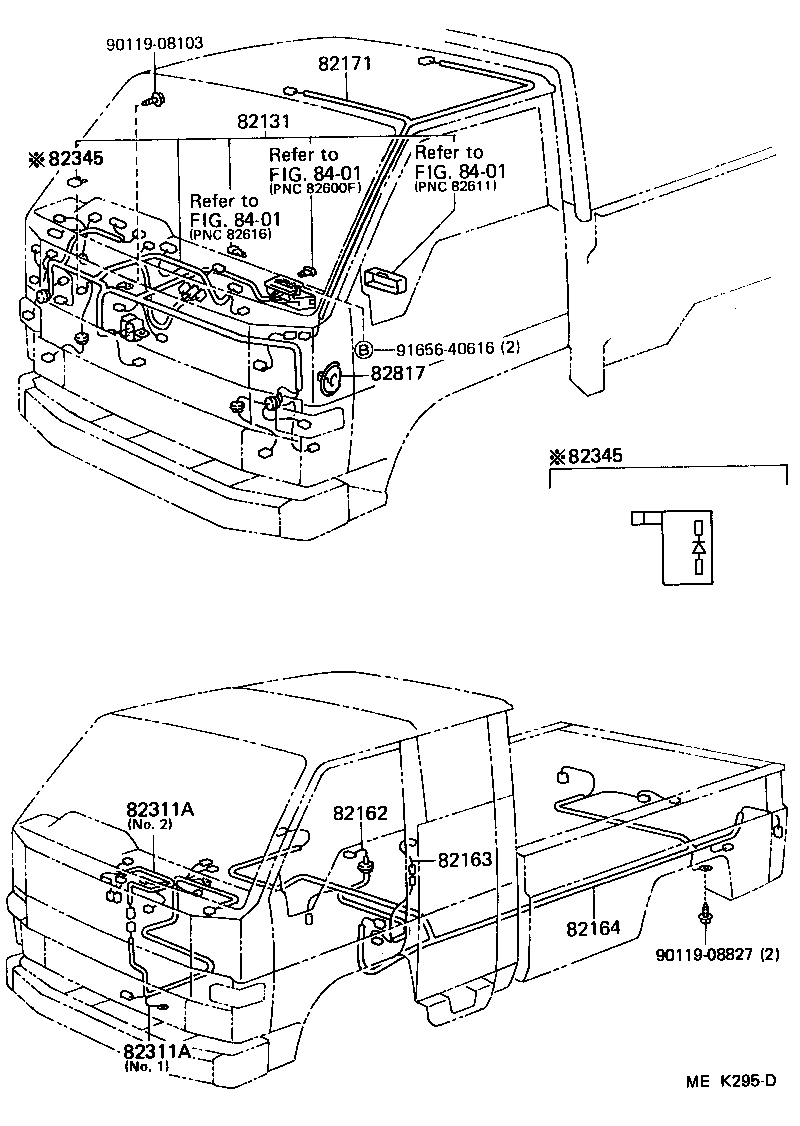

ILLUST NO. 2 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-95A77 |
YH81..RHD..GEN |
1 | ||
| 82131-95K25 |
YH81..RHD..GEN |
1 | ||
| 82131-26120 |
YH81..RHD..GEN |
1 | ||
| 82131-26121 |
YH81..RHD..GEN |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-95A40 |
YH81..ARL,GEN |
1 | ||
| 82164-95A47 |
YH81..ARL,GEN |
1 | ||
| 82164-26100 |
YH81..ARL,GEN |
1 | ||
| 82164-26101 |
YH81..GEN |
1 | ||
| 82164-26100 |
YH81..GEN |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-95400 |
LH80,YH81..T3 |
1 | ||
| 82311A - WIRE, AIR CONDITIONER | ||||
| 88648-95A13 |
YH81..ARL,GEN NO.1 |
1 | ||
| 88648-95409 |
YH81..RHD NO.2 |
1 | ||
| 88648-95409 |
YH81..RHD..GEN NO.2 |
1 | ||
| 88648-95409 |
YH81..RHD NO.2 |
1 | ||
| 88648-95A19 |
YH81..RHD..GEN MAKER OPT,NO.1 |
1 | ||
| 88648-95A19 |
YH81..RHD NO.1 |
1 | ||
| 88648-95A13 |
YH81..RHD..GEN DEALER OPT,NO.1 |
1 | ||
| 82311A - WIRE, AIR CONDITIONER | ||||
| 88648-95A13 |
YH81..ARL,GEN NO.1 |
1 | ||
| 88648-95409 |
YH81..RHD NO.2 |
1 | ||
| 88648-95409 |
YH81..RHD..GEN NO.2 |
1 | ||
| 88648-95409 |
YH81..RHD NO.2 |
1 | ||
| 88648-95A19 |
YH81..RHD..GEN MAKER OPT,NO.1 |
1 | ||
| 88648-95A19 |
YH81..RHD NO.1 |
1 | ||
| 88648-95A13 |
YH81..RHD..GEN DEALER OPT,NO.1 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-14350 |
LH80,YH81 |
2 | ||
| Common parts | ||||
| 90119-08103 | ||||
| 90119-08827 | ||||
| 91656-40616 | ||||
| Linked diagrams | ||||
| 8401 | ||||

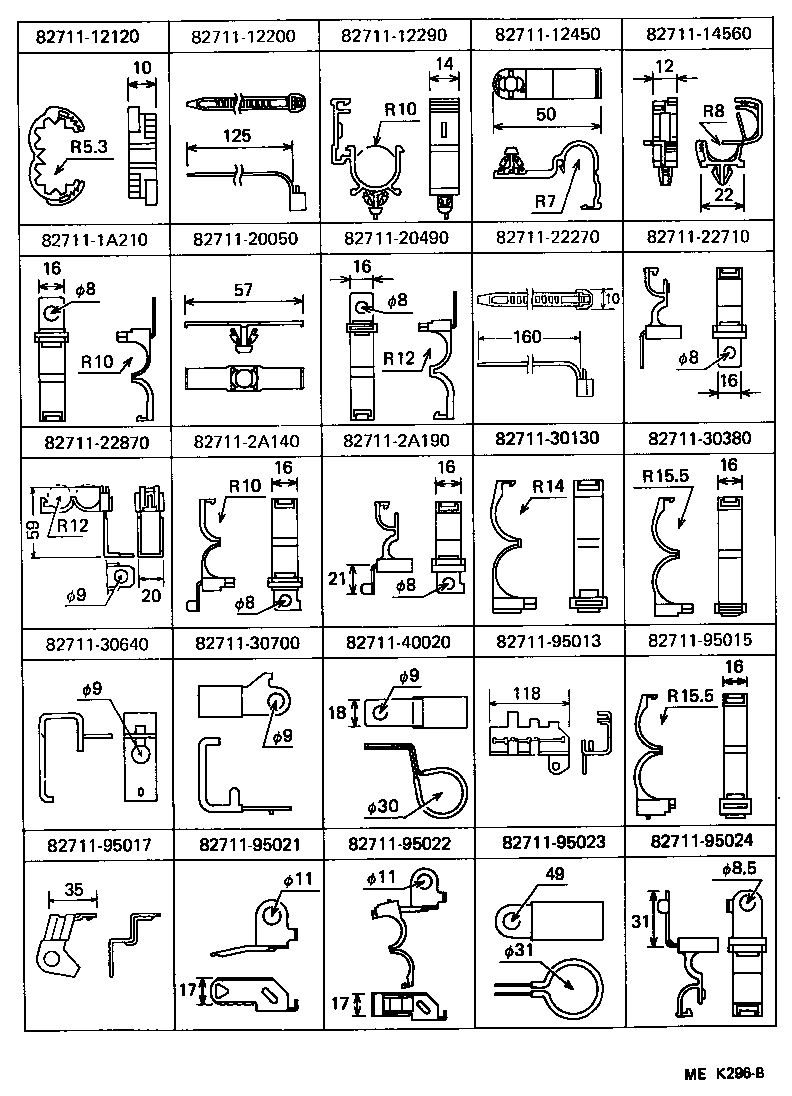

ILLUST NO. 3 OF 3(8708- )
CLAMP & GROMET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12120 | ||||
| 82711-12200 | ||||
| 82711-12290 | ||||
| 82711-12450 | ||||
| 82711-14560 | ||||
| 82711-1A210 | ||||
| 82711-20050 | ||||
| 82711-20490 | ||||
| 82711-22270 | ||||
| 82711-22710 | ||||
| 82711-22870 | ||||
| 82711-2A140 | ||||
| 82711-2A190 | ||||
| 82711-30130 | ||||
| 82711-30380 | ||||
| 82711-30640 | ||||
| 82711-30700 | ||||
| 82711-40020 | ||||
| 82711-95013 | ||||
| 82711-95015 | ||||
| 82711-95017 | ||||
| 82711-95021 | ||||
| 82711-95022 | ||||
| 82711-95023 | ||||
| 82711-95024 | ||||

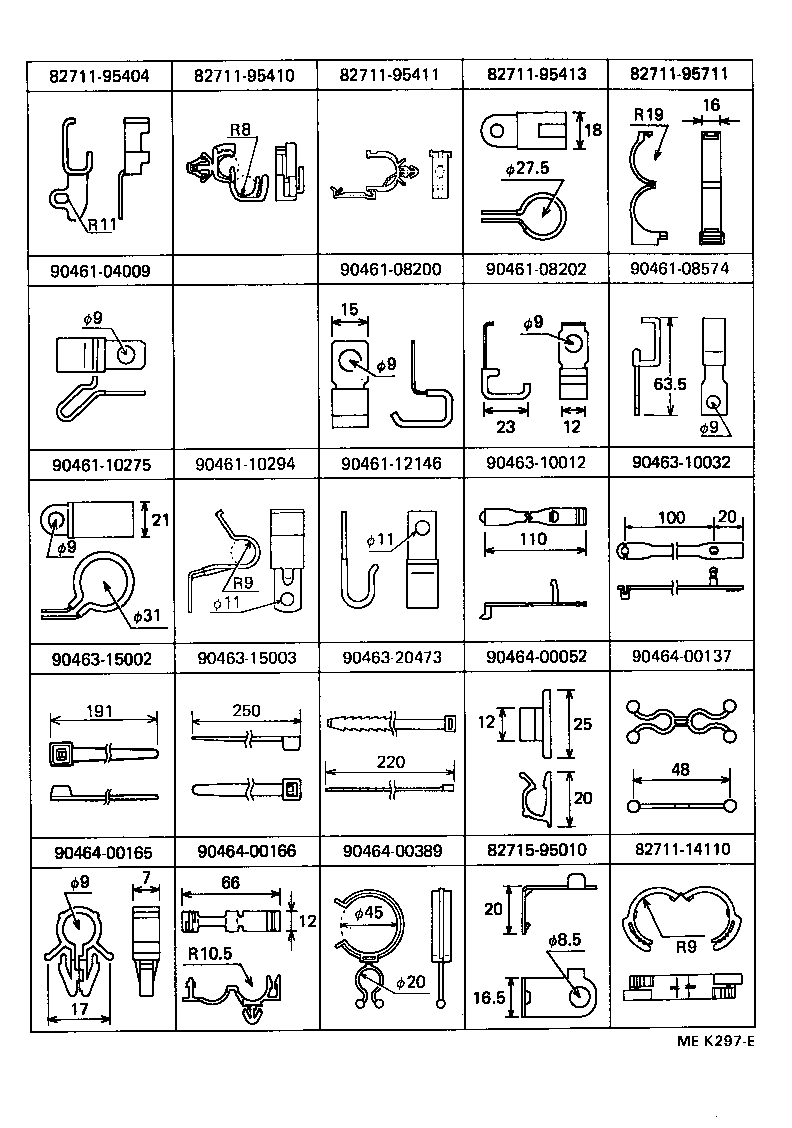

ILLUST NO. 3 OF 3(8708- )
CLAMP & GROMET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-14110 | ||||
| 82711-95404 | ||||
| 82711-95410 | ||||
| 82711-95411 | ||||
| 82711-95413 | ||||
| 82711-95711 | ||||
| 82715-95010 | ||||
| 90461-04009 | ||||
| 90461-08200 | ||||
| 90461-08202 | ||||
| 90461-08574 | ||||
| 90461-10275 | ||||
| 90461-10294 | ||||
| 90461-12146 | ||||
| 90463-10012 | ||||
| 90463-10032 | ||||
| 90463-15002 | ||||
| 90463-15003 | ||||
| 90463-20473 | ||||
| 90464-00052 | ||||
| 90464-00137 | ||||
| 90464-00165 | ||||
| 90464-00166 | ||||
| 90464-00389 | ||||

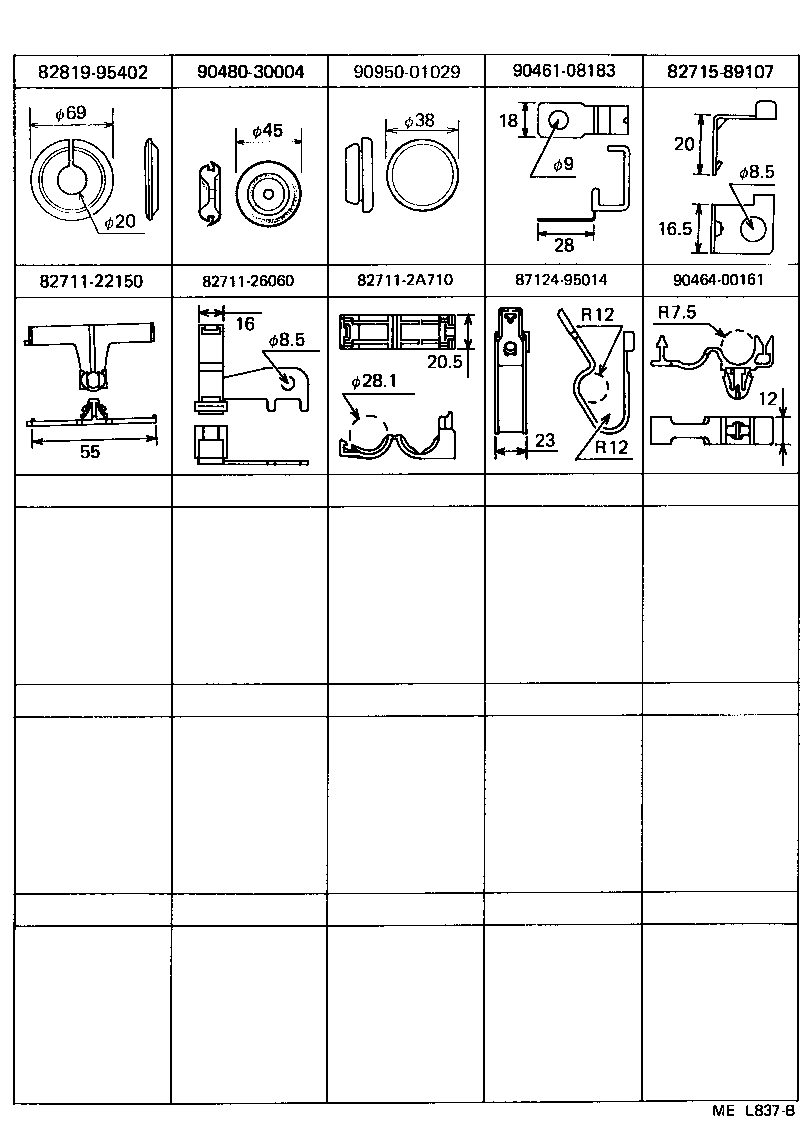

ILLUST NO. 3 OF 3(8708- )
CLAMP & GROMET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-22150 | ||||
| 82711-26060 | ||||
| 82711-2A710 | ||||
| 82715-89107 | ||||
| 82819-95402 | ||||
| 87124-95014 | ||||
| 90461-08183 | ||||
| 90464-00161 | ||||
| 90480-30004 | ||||
| 90950-01029 | ||||
