YH81R-MDB3 (1987)

Toyota Dyna100

Production Aug 1987 - May 1995
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )2Y

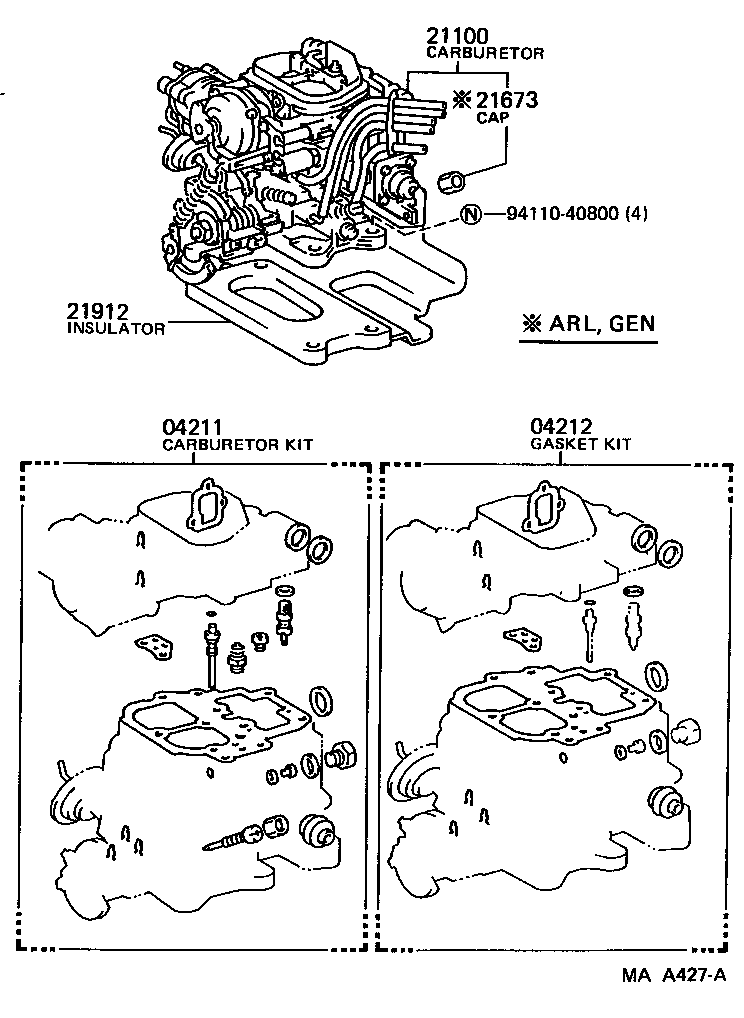

Click highlighted areas on diagram

diagram 04211 04212 21100 21673 21912 9411040800
Part # Description Qty Price
04211 - CARBURETOR KIT
04211-71070

2Y..YH81..ARL,GEN

 1
04211-71072

2Y..YH81..ARL,GEN

 1
04211-71071

2Y..YH81..ARL,GEN

 1
04212 - GASKET KIT, CARBURETOR
04212-72010

2Y..YH81

 1
04212-72012

2Y..YH81..ARL,GEN

 1
04212-72010

2Y..YH81..ARL,GEN

 1
04212-72011

2Y..YH81..ARL,GEN

 1
21100 - CARBURETOR ASSY
21100-71121

2Y..YH81..ARL,GEN

 1
21673 - CAP, IDLE LIMIT
21673-13280

2Y..YH81..ARL,GEN

 1
21912 - INSULATOR, CARBURETOR HEAT
21912-72011

2Y..YH81

 1
21912-72010

2Y..YH81

 1
Common parts
94110-40800
