YH81R-MDB (1987)
Toyota Dyna100
Production
Aug 1987
-
May 1995
Engine
2Y
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

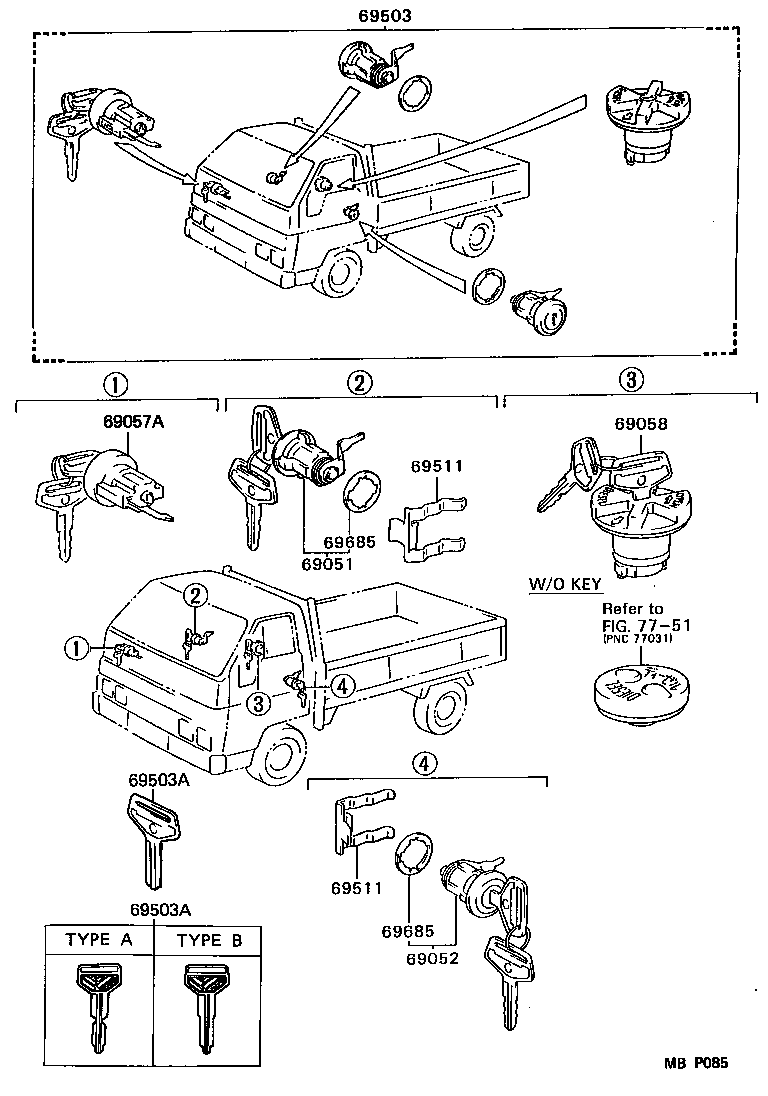

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-95403 |
LH80,YH81..GEN |
1 | ||
| 69051-95403 |
LH80,YH81..ARL,GEN |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-95403 |
LH80,YH81..ARL,GEN |
1 | ||
| 69052-95403 |
LH80,YH81..GEN |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-95412 |
LH80..ARL;YH81..ARL,GEN |
1 | ||
| 69057-95412 |
YH81..GEN |
1 | ||
| 69058 - CYLINDER & KEY SET, FUEL FILLER LID | ||||
| 69058-95400 |
YH81..ARL,GEN |
1 | ||
| 69058-95400 |
YH81..GEN |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69503-95466 |
YH81..ARL,GEN W(FUEL TANK CAP KEY) |
1 | ||
| 69503-95461 |
LH80..ARL;YH81..ARL,GEN |
1 | ||
| 69503-95461 |
YH81..GEN |
1 | ||
| 69503-95466 |
YH81..GEN W(FUEL TANK CAP KEY) |
1 | ||
| 69503-95466 |
YH81..GEN |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00066 |
LH80,YH81..ARL,GEN MASTER KEY |
1 | ||
| 90999-00129 |
LH80,YH81..ARL,GEN MASTER KEY,W(*68) |
1 | ||
| 90999-00129 |
LH80,YH81..GEN MASTER KEY,W(*68) |
1 | ||
| 90999-00066 |
LH80,YH81..GEN MASTER KEY |
1 | ||
| 69503A - KEY, BLANK | ||||
| 90999-00066 |
LH80,YH81..ARL,GEN MASTER KEY |
1 | ||
| 90999-00129 |
LH80,YH81..ARL,GEN MASTER KEY,W(*68) |
1 | ||
| 90999-00129 |
LH80,YH81..GEN MASTER KEY,W(*68) |
1 | ||
| 90999-00066 |
LH80,YH81..GEN MASTER KEY |
1 | ||
| 69511 - RETAINER, FRONT DOOR LOCK CYLINDER | ||||
| 69511-95400 |
LH80,YH81 |
2 | ||
| 69511 - RETAINER, FRONT DOOR LOCK CYLINDER | ||||
| 69511-95400 |
LH80,YH81 |
2 | ||
| 69685 - PAD, LOCK CYLINDER | ||||
| 69513-32010 |
LH80,YH81 |
2 | ||
| 69685 - PAD, LOCK CYLINDER | ||||
| 69513-32010 |
LH80,YH81 |
2 | ||
| Linked diagrams | ||||
| 7751 | ||||
