YH81R-MDB (1987)
Toyota Dyna100
Production
Aug 1987
-
May 1995
Engine
2Y
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

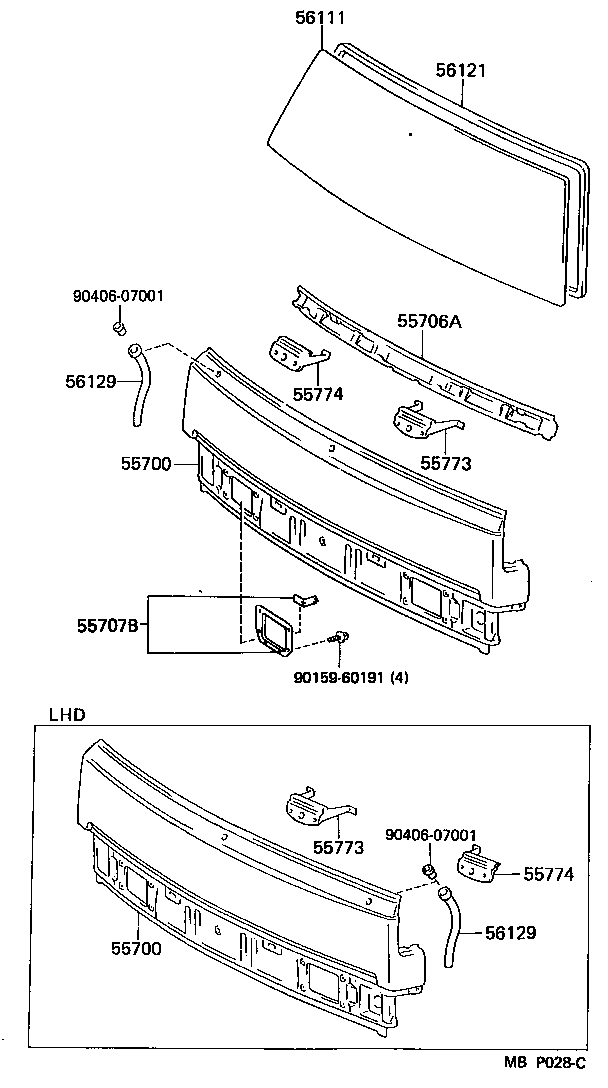

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55700 - PANEL ASSY, FRONT | ||||
| 55701-95A38 |
LH80,YH81..RHD |
1 | ||
| 55701-95A37 |
LH80,YH81..RHD |
1 | ||
| 55700 - PANEL ASSY, FRONT | ||||
| 55701-95A38 |
LH80,YH81..RHD |
1 | ||
| 55701-95A37 |
LH80,YH81..RHD |
1 | ||
| 55706A - REINFORCEMENT SUB-ASSY, FRONT PANEL, UPPER | ||||
| 55706-95405 |
LH80,YH81..RHD |
1 | ||
| 55707B - SHUTTER SUB-ASSY, FRONT AIR | ||||
| 55707-95404 |
YH81;LH80..IV;LH80..EUR..CBU |
1 | ||
| 55707-95404 |
YH81;LH80..IV;LH80..EUR..CBU |
1 | ||
| 55707-95404 |
LH80,YH81 |
1 | ||
| 55773 - RETAINER, WIPER SHAFT, CENTER | ||||
| 55773-95406 |
LH80,YH81 |
1 | ||
| 55773 - RETAINER, WIPER SHAFT, CENTER | ||||
| 55773-95406 |
LH80,YH81 |
1 | ||
| 55774 - RETAINER, WIPER SHAFT SIDE | ||||
| 55774-95402 |
LH80,YH81..RHD |
1 | ||
| 55774 - RETAINER, WIPER SHAFT SIDE | ||||
| 55774-95402 |
LH80,YH81..RHD |
1 | ||
| 56111 - GLASS, WINDSHIELD | ||||
| 56111-37010 |
LH80,YH81..EUR,GEN *TL,T=5.7 |
1 | ||
| 56111-37020 |
LH80,YH81..T3..GEN *LAM,T=5.7,BRONZE |
1 | ||
| 56111-95416 |
LH80,YH81..EUR,GEN *LAM,T=5.3 |
1 | ||
| 56111-95415 |
LH80,YH81..GEN *ZT,T=5.0 |
1 | ||
| 56111-95417 |
LH80,YH81..GEN *LAM,T=5.3,W(TOP SHADE) |
1 | ||
| 56111-37010 |
LH80,YH81 *TL,T=5.7 |
1 | ||
| 56111-95415 |
LH80,YH81..EUR,GEN *ZT,T=5.0 |
1 | ||
| 56111-37010 |
LH80,YH81..GEN *TL,T=5.7 |
1 | ||
| 56121 - WEATHERSTRIP, WINDSHIELD | ||||
| 56121-95A06 |
LH80,YH81 |
1 | ||
| 56129 - HOSE, WINDSHIELD DRAIN | ||||
| 56129-95400 |
LH80,YH81 |
2 | ||
| 56129 - HOSE, WINDSHIELD DRAIN | ||||
| 56129-95400 |
LH80,YH81 |
2 | ||
| Common parts | ||||
| 90159-60191 | ||||
| 90406-07001 | ||||
