YH81R-MDB (1987)
Toyota Dyna100

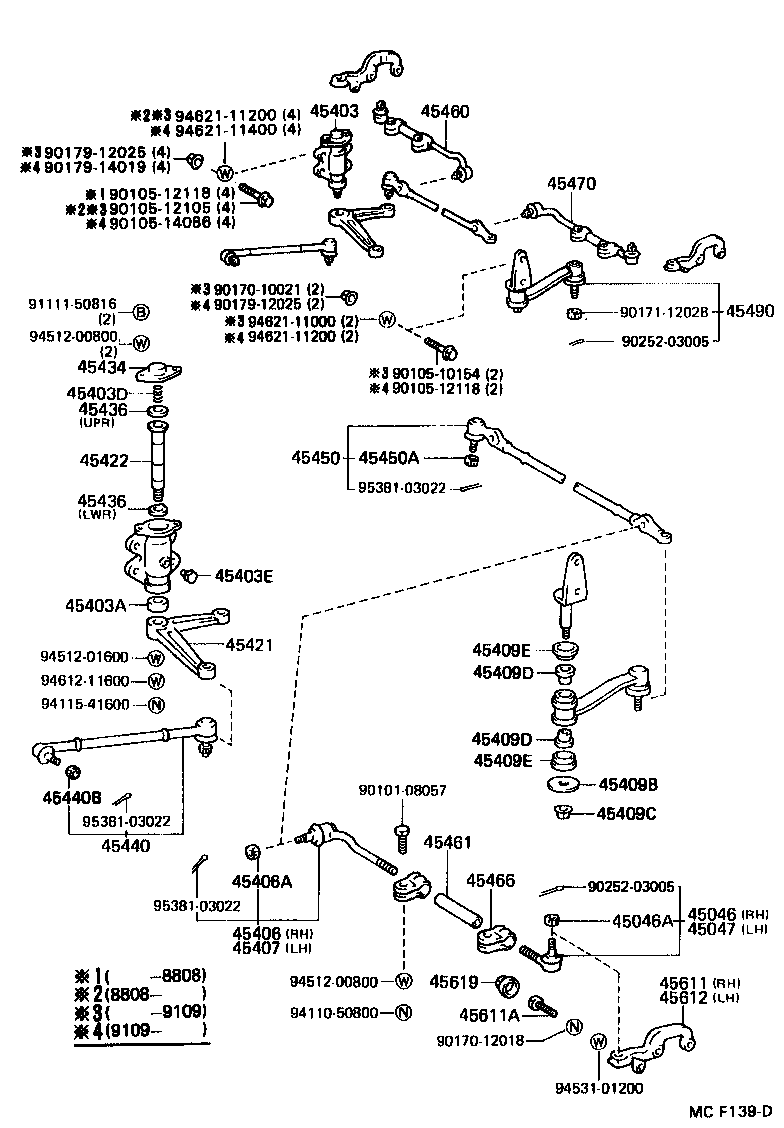

ILLUST NO. 1 OF 3(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-29125 |
LH80,YH81 |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14042 |
LH80,YH81 |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-29125 |
LH80,YH81 |
1 | ||
| 45403 - BRACKET SUB-ASSY, CENTER ARM | ||||
| 45403-26080 |
LH80,YH81..RHD |
1 | ||
| 45403-26060 |
LH80,YH81..RHD |
1 | ||
| 45403A - SEAL, OIL(FOR CENTER ARM BRACKET) | ||||
| 90311-25004 |
LH80,YH81 |
1 | ||
| 45403D - SPRING, COMPRESSION(FOR CENTER ARM SHAFT SET) | ||||
| 90501-30369 |
LH80,YH81 |
1 | ||
| 45403E - PLUG, W/HEAD TAPER SCREW(FOR CENTER ARM SHAFT) | ||||
| 90345-06014 |
LH80,YH81 |
1 | ||
| 45406 - ROD SUB-ASSY, TIE, RH | ||||
| 45406-29145 |
LH80,YH81 |
1 | ||
| 45406A - NUT, CASTLE(FOR TIE ROD) | ||||
| 90171-14042 |
LH80,YH81 |
2 | ||
| 45407 - ROD SUB-ASSY, TIE, LH | ||||
| 45406-29145 |
LH80,YH81 |
1 | ||
| 45409B - WASHER, PLATE(FOR IDLER ARM RUBBER BUSH) | ||||
| 90201-14519 |
LH80,YH81 |
1 | ||
| 45409C - NUT(FOR IDLER ARM SUPPORT) | ||||
| 94184-61401 |
LH80,YH81 |
1 | ||
| 94184-61400 |
LH80,YH81 |
1 | ||
| 45409D - BUSH(FOR IDLER ARM) | ||||
| 90385-18068 |
LH80,YH81 |
1 | ||
| 45409D - BUSH(FOR IDLER ARM) | ||||
| 90385-18068 |
LH80,YH81 |
1 | ||
| 45409E - SEAL, DUST(FOR IDLER ARM SUPPORT) | ||||
| 90304-31012 |
LH80,YH81 |
1 | ||
| 45409E - SEAL, DUST(FOR IDLER ARM SUPPORT) | ||||
| 90304-31012 |
LH80,YH81 |
1 | ||
| 45421 - ARM, STEERING CENTER | ||||
| 45421-26060 |
LH80,YH81..RHD |
1 | ||
| 45422 - SHAFT, CENTER ARM | ||||
| 45422-26010 |
LH80,YH81 |
1 | ||
| 45434 - CAP, CENTER ARM BRACKET | ||||
| 45434-26011 |
LH80,YH81 |
1 | ||
| 45436 - SEAT, CENTER ARM SHAFT | ||||
| 45436-28010 |
LH80,YH81 LWR |
1 | ||
| 45436-26010 |
LH80,YH81 UPR |
1 | ||
| 45436 - SEAT, CENTER ARM SHAFT | ||||
| 45436-28010 |
LH80,YH81 LWR |
1 | ||
| 45436-26010 |
LH80,YH81 UPR |
1 | ||
| 45440 - LINK ASSY, STEERING DRAG | ||||
| 45440-29195 |
LH80,YH81..RHD |
1 | ||
| 45440B - NUT, CASTLE(FOR STEERING DRAG LINK) | ||||
| 90171-14042 |
LH80,YH81 |
2 | ||
| 90171-14042 |
LH80,YH81 |
1 | ||
| 45450 - ROD ASSY, STEERING RELAY | ||||
| 45450-29165 |
LH80,YH81..RHD |
1 | ||
| 45450A - NUT, CASTLE(FOR RELAY ROD) | ||||
| 90171-14042 |
LH80,YH81 |
1 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-29285 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
1 | ||
| 45460-29265 |
LH80,YH81..GEN |
2 | ||
| 45460-29285 |
LH80,YH81 |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45465-35020 |
LH80,YH81 |
2 | ||
| 45465-26010 |
LH80,YH81..GEN |
2 | ||
| 45465-35020 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
2 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30020 |
LH80,YH81 |
4 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45470-29075 |
LH80,YH81 |
1 | ||
| 45490 - ARM ASSY, STEERING IDLER | ||||
| 45490-29475 |
LH80,YH81 |
1 | ||
| 45490-29515 |
LH80,YH81 |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-26031 |
LH80,YH81..GEN |
1 | ||
| 45611-26040 |
LH80,YH81 |
1 | ||
| 45611-26040 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
1 | ||
| 45611A - BOLT, KNUCKLE STOPPER | ||||
| 90106-12005 |
LH80,YH81 |
2 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-26031 |
LH80,YH81..GEN |
1 | ||
| 45612-26040 |
LH80,YH81 |
1 | ||
| 45612-26040 |
LH80,YH81..GEN W(FRONT DISC BRAKE) |
1 | ||
| 45619 - COVER, KNUCKLE STOPPER | ||||
| 45619-36010 |
LH80,YH81 |
2 | ||
| Common parts | ||||
| 90101-08057 | ||||
| 90105-10154 | ||||
| 90105-12105 | ||||
| 90105-12118 | ||||
| 90105-14086 | ||||
| 90170-10021 | ||||
| 90170-12018 | ||||
| 90171-12028 | ||||
| 90179-12025 | ||||
| 90179-14019 | ||||
| 90252-03005 | ||||
| 91111-50816 | ||||
| 94110-50800 | ||||
| 94115-41600 | ||||
| 94512-00800 | ||||
| 94512-01600 | ||||
| 94531-01200 | ||||
| 94612-11600 | ||||
| 94621-11000 | ||||
| 94621-11200 | ||||
| 94621-11400 | ||||
| 95381-03022 | ||||

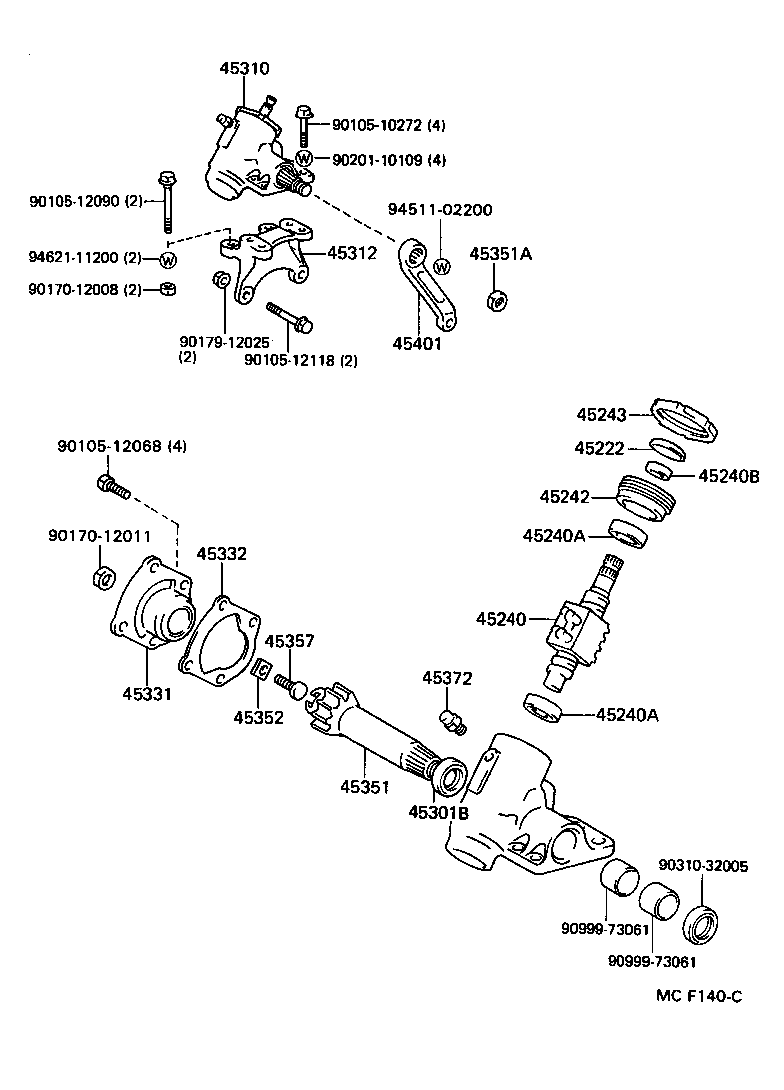

ILLUST NO. 2 OF 3(8708-9109)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-26010 |
LH80,YH81 |
1 | ||
| 45222-26010 |
YH81;LH80..GEN |
1 | ||
| 45240 - WORM ASSY, STEERING | ||||
| 45240-60040 |
LH80,YH81..RHD |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90363-20024 |
LH80,YH81 |
2 | ||
| 90363-20024 |
YH81;LH80..GEN |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90363-20024 |
LH80,YH81 |
2 | ||
| 90363-20024 |
YH81;LH80..GEN |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-18010 |
LH80,YH81 |
1 | ||
| 90311-18010 |
YH81;LH80..GEN |
1 | ||
| 45242 - SCREW, WORM BEARING ADJUSTING | ||||
| 45242-25010 |
YH81;LH80..GEN |
1 | ||
| 45242-25010 |
LH80,YH81 |
1 | ||
| 45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK | ||||
| 45243-60020 |
LH80,YH81 |
1 | ||
| 45243-60020 |
YH81;LH80..GEN |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90311-32014 |
LH80,YH81 |
1 | ||
| 90311-32014 |
YH81;LH80..GEN |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-25070 |
LH80,YH81..RHD |
1 | ||
| 45310-25090 |
LH80,YH81..RHD |
1 | ||
| 45312 - BRACKET, STEERING GEAR HOUSING | ||||
| 45312-26070 |
LH80,YH81..RHD |
1 | ||
| 45312-26160 |
LH80,YH81..RHD |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-25020 |
YH81;LH80..GEN |
1 | ||
| 45304-25020 |
LH80,YH81 |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-26010 |
LH80,YH81 |
1 | ||
| 45332-26010 |
YH81;LH80..GEN |
1 | ||
| 45351 - SHAFT, STEERING SECTOR | ||||
| 45351-25020 |
LH80,YH81 |
1 | ||
| 45351-25020 |
YH81;LH80..GEN |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-22058 |
LH80,YH81 |
1 | ||
| 90170-22058 |
YH81;LH80..GEN |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45352-37010 |
LH80,YH81 T=1.95 |
1 | ||
| 45354-37010 |
LH80,YH81 T=2.05 |
1 | ||
| 45353-37010 |
LH80,YH81 T=2.00 |
1 | ||
| 45353-37010 |
YH81;LH80..GEN T=2.00 |
1 | ||
| 45354-37010 |
YH81;LH80..GEN T=2.05 |
1 | ||
| 45352-37010 |
YH81;LH80..GEN T=1.95 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-36010 |
YH81;LH80..GEN |
1 | ||
| 45357-36010 |
LH80,YH81 |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03058 |
YH81;LH80..GEN |
1 | ||
| 90930-03058 |
LH80,YH81 |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45411-26090 |
LH80,YH81..RHD |
1 | ||
| Common parts | ||||
| 90105-10272 | ||||
| 90105-12068 | ||||
| 90105-12090 | ||||
| 90105-12118 | ||||
| 90170-12008 | ||||
| 90170-12011 | ||||
| 90179-12025 | ||||
| 90201-10109 | ||||
| 90310-32005 | ||||
| 90999-73061 | ||||
| 94511-02200 | ||||
| 94621-11200 | ||||

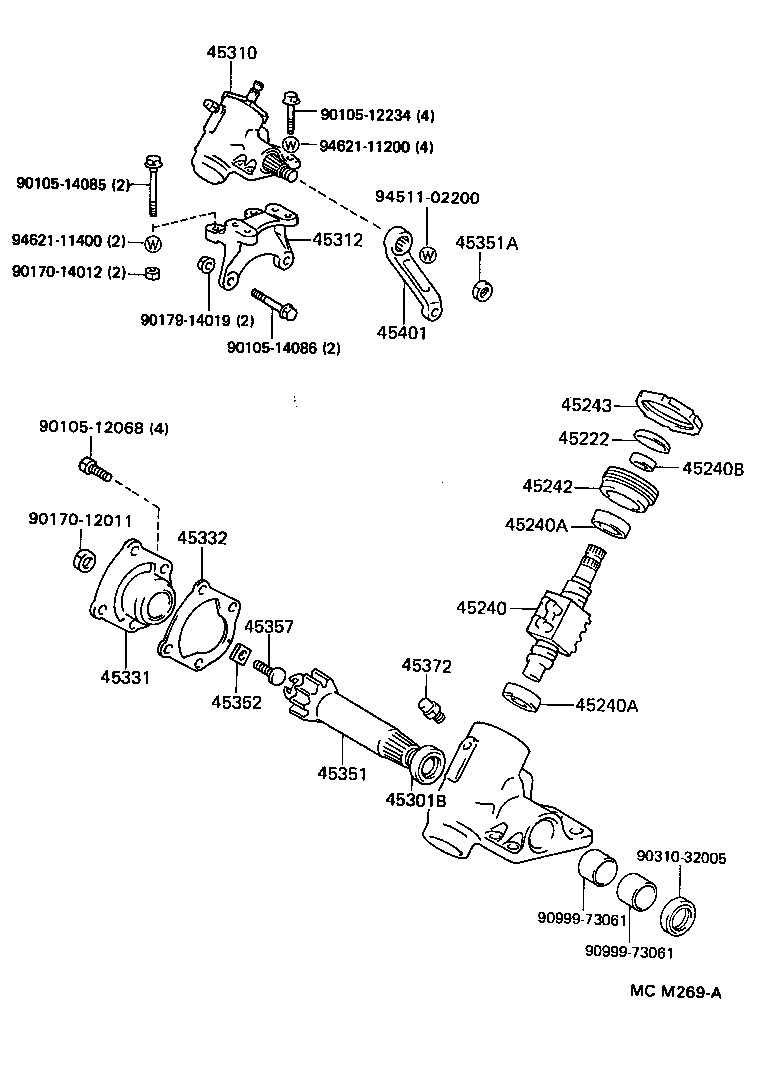

ILLUST NO. 2 OF 3(9109- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-26010 |
YH81;LH80..GEN |
1 | ||
| 45222-26010 |
LH80,YH81 |
1 | ||
| 45240 - WORM ASSY, STEERING | ||||
| 45240-60040 |
LH80,YH81..RHD |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90363-20024 |
LH80,YH81 |
2 | ||
| 90363-20024 |
YH81;LH80..GEN |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90363-20024 |
LH80,YH81 |
2 | ||
| 90363-20024 |
YH81;LH80..GEN |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-18010 |
LH80,YH81 |
1 | ||
| 90311-18010 |
YH81;LH80..GEN |
1 | ||
| 45242 - SCREW, WORM BEARING ADJUSTING | ||||
| 45242-25010 |
YH81;LH80..GEN |
1 | ||
| 45242-25010 |
LH80,YH81 |
1 | ||
| 45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK | ||||
| 45243-60020 |
LH80,YH81 |
1 | ||
| 45243-60020 |
YH81;LH80..GEN |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90311-32014 |
LH80,YH81 |
1 | ||
| 90311-32014 |
YH81;LH80..GEN |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-25070 |
LH80,YH81..RHD |
1 | ||
| 45310-25090 |
LH80,YH81..RHD |
1 | ||
| 45312 - BRACKET, STEERING GEAR HOUSING | ||||
| 45312-26070 |
LH80,YH81..RHD |
1 | ||
| 45312-26160 |
LH80,YH81..RHD |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-25020 |
YH81;LH80..GEN |
1 | ||
| 45304-25020 |
LH80,YH81 |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-26010 |
LH80,YH81 |
1 | ||
| 45332-26010 |
YH81;LH80..GEN |
1 | ||
| 45351 - SHAFT, STEERING SECTOR | ||||
| 45351-25020 |
LH80,YH81 |
1 | ||
| 45351-25020 |
YH81;LH80..GEN |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-22058 |
LH80,YH81 |
1 | ||
| 90170-22058 |
YH81;LH80..GEN |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45352-37010 |
LH80,YH81 T=1.95 |
1 | ||
| 45354-37010 |
LH80,YH81 T=2.05 |
1 | ||
| 45353-37010 |
LH80,YH81 T=2.00 |
1 | ||
| 45353-37010 |
YH81;LH80..GEN T=2.00 |
1 | ||
| 45354-37010 |
YH81;LH80..GEN T=2.05 |
1 | ||
| 45352-37010 |
YH81;LH80..GEN T=1.95 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-36010 |
YH81;LH80..GEN |
1 | ||
| 45357-36010 |
LH80,YH81 |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03058 |
YH81;LH80..GEN |
1 | ||
| 90930-03058 |
LH80,YH81 |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45411-26090 |
LH80,YH81..RHD |
1 | ||
| Common parts | ||||
| 90105-12068 | ||||
| 90105-12234 | ||||
| 90105-14085 | ||||
| 90105-14086 | ||||
| 90170-12011 | ||||
| 90170-14012 | ||||
| 90179-14019 | ||||
| 90310-32005 | ||||
| 90999-73061 | ||||
| 94511-02200 | ||||
| 94621-11200 | ||||
| 94621-11400 | ||||
