YH81R-MDB (1987)

Toyota Dyna100

Production Aug 1987 - May 1995
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )2Y

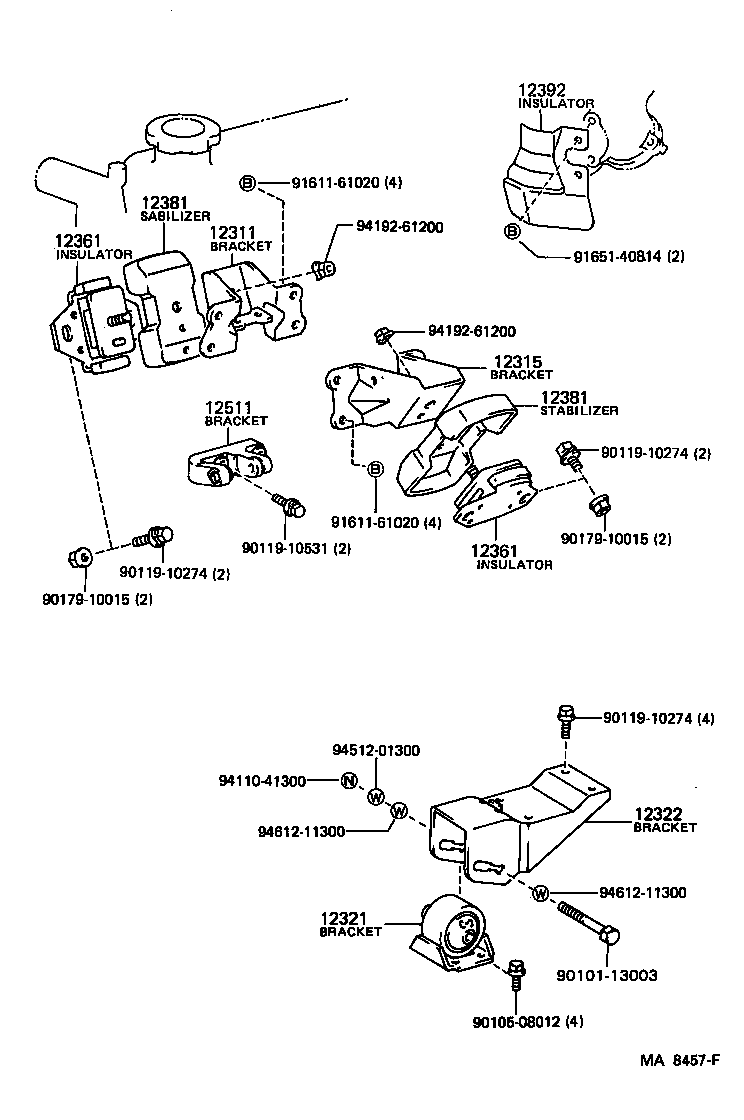

Click highlighted areas on diagram

diagram 12311 12315 12321 12322 12361 12361 12381 12381 12392 12511 9010113003 9010508012 9011910274 9011910274 9011910274 9011910531 9017910015 9017910015 9161161020 9161161020 9165140814 9411041300 9419261200 9419261200 9451201300 9461211300 9461211300
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-71010

2Y..YH81

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-71010

2Y..YH81

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12303-54020

2Y..YH81

 1
12303-67020

2Y..YH81

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-54050

2Y..YH81

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-71020

2Y..YH81

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-71020

2Y..YH81

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-71030

2Y..YH81

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-71030

2Y..YH81

 2
12392 - INSULATOR, ENGINE MOUNTING HEAT, FRONT LH
12391-72010

2Y..YH81

 1
12511 - BRACKET, ALTERNATOR, NO.1
12501-73011

2Y..YH81

 1
Common parts
90101-13003
90105-08012
90119-10274
90119-10531
90179-10015
91611-61020
91651-40814
94110-41300
94192-61200
94512-01300
94612-11300
