YH81L-MDPW (1985)

Toyota Dyna100

Production Aug 1985 - Aug 1987
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

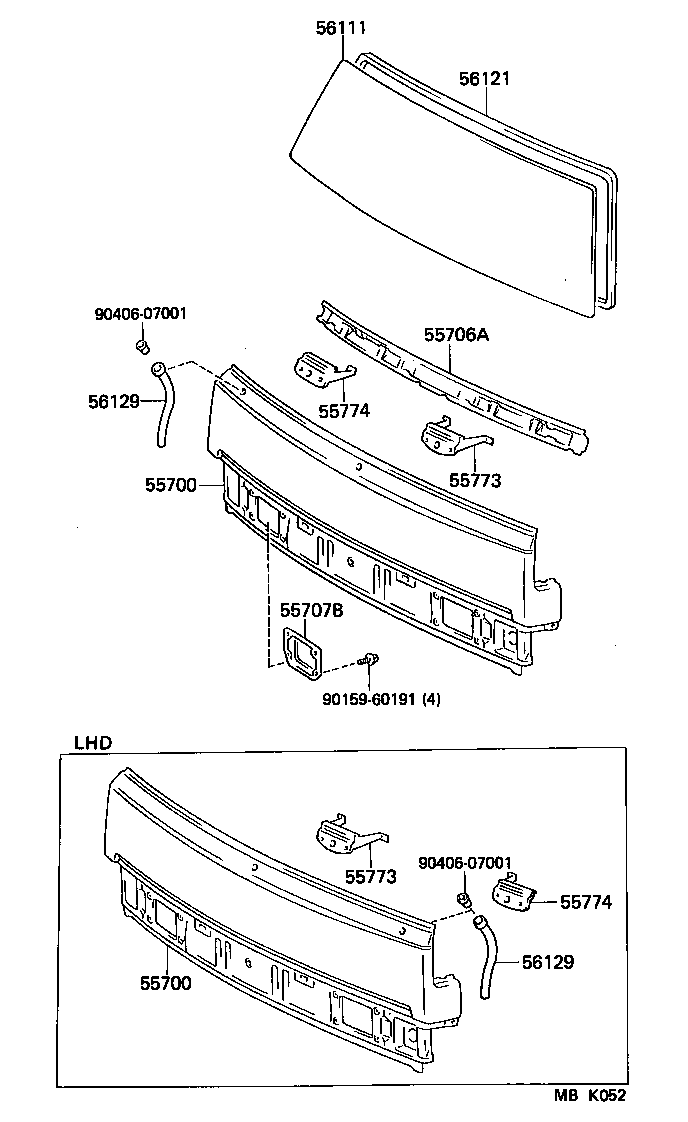

Click highlighted areas on diagram

diagram 55700 55700 55706A 55707B 55773 55773 55774 55774 56111 56121 56129 56129 9015960191 9040607001 9040607001
Part # Description Qty Price
55700 - PANEL ASSY, FRONT
55701-95A35

LH80,YH8#..LHD

 1
55700 - PANEL ASSY, FRONT
55701-95A35

LH80,YH8#..LHD

 1
55706A - REINFORCEMENT SUB-ASSY, FRONT PANEL, UPPER
55706-95406

LH80,YH8#..LHD

 1
55707B - SHUTTER SUB-ASSY, FRONT AIR
55707-95403

LH80,YH8#

 1
55773 - RETAINER, WIPER SHAFT, CENTER
55773-95406

LH80,YH8#

 1
55773 - RETAINER, WIPER SHAFT, CENTER
55773-95406

LH80,YH8#

 1
55774 - RETAINER, WIPER SHAFT SIDE
55774-95403

LH80,YH8#..LHD

 1
55774 - RETAINER, WIPER SHAFT SIDE
55774-95403

LH80,YH8#..LHD

 1
56111 - GLASS, WINDSHIELD
56111-95416

LH80,YH8#

*LAM,T=5.3,*LAM,T=5.3

 1
56111-95415

LH80,YH8#..EUR,GEN

*ZT,T=5.0,*ZT,T=5.0

 1
56121 - WEATHERSTRIP, WINDSHIELD
56121-95A06

LH80,YH8#

 1
56129 - HOSE, WINDSHIELD DRAIN
56129-95400

LH80,YH8#

 2
56129 - HOSE, WINDSHIELD DRAIN
56129-95400

LH80,YH8#

 2
Common parts
90159-60191
90406-07001
