YH81L-MDPW (1985)

Toyota Dyna100

Production Aug 1985 - Aug 1987
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )YH8#

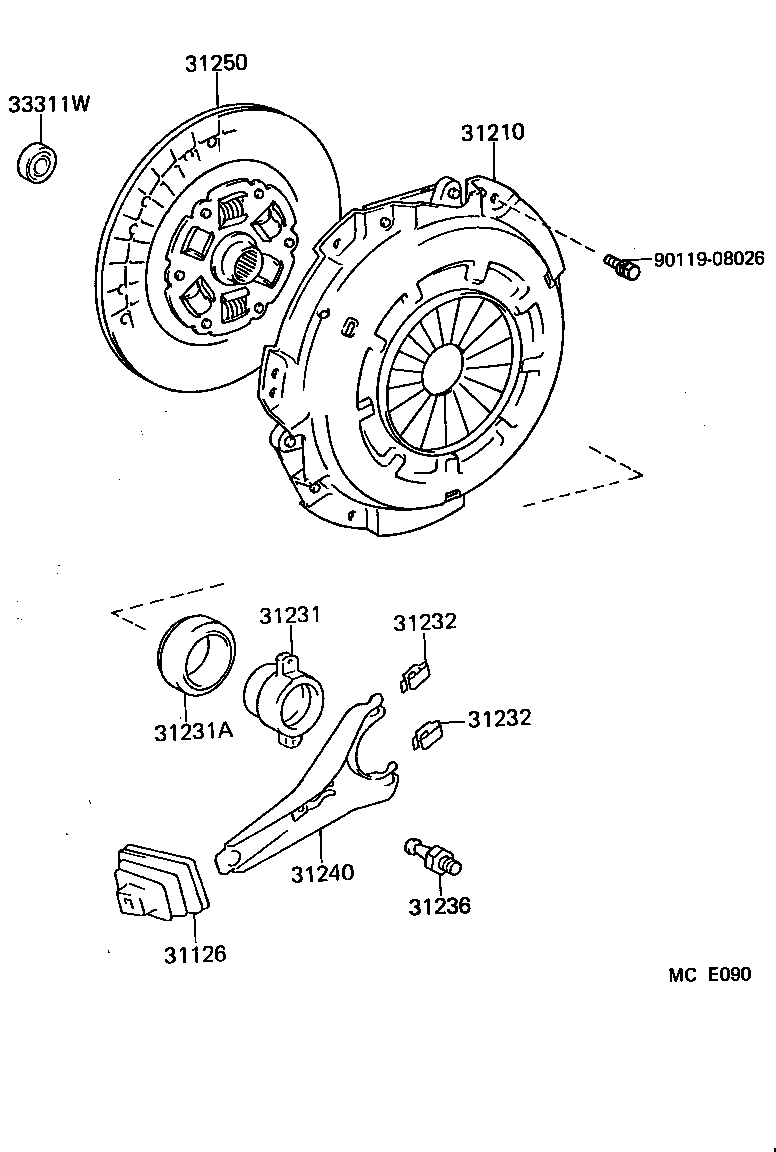

Click highlighted areas on diagram

diagram 31126 31210 31231 31231A 31232 31232 31236 31240 31250 33311W 9011908026
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-20060

YH8#

 1
31210 - COVER ASSY, CLUTCH
31210-14130

LH80,YH81..5F

 1
31231 - HUB, CLUTCH RELEASE BEARING
31231-36070

YH8#

 1
31231A - BEARING, BALL(FOR CLUTCH RELEASE HUB)
90363-40022

LH80,YH8#..5F

 1
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-22010

LH80,YH8#..5F

 2
31232 - CLIP OR SPRING, RELEASE BEARING HUB
31232-22010

LH80,YH8#..5F

 2
31236 - BALL, RELEASE FORK
31236-30060

LH80,YH8#..5F

 1
31240 - FORK ASSY, CLUTCH RELEASE
31204-20071

YH8#

 1
31250 - DISC ASSY, CLUTCH
31250-25120

YH81

 1
31250-25121

YH81

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-12002

LH80,YH8#..5F

 1
Common parts
90119-08026
