YH81L-MDP (1987)

Toyota Dyna100

Production Aug 1987 - Mar 1992
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

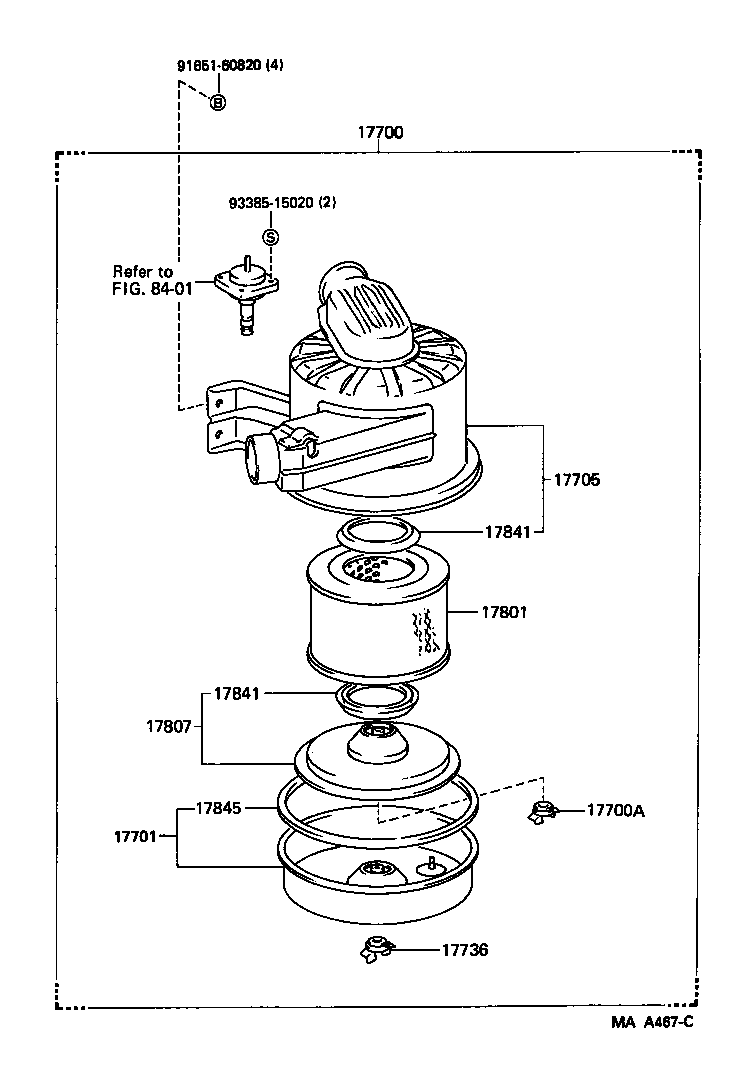

ILLUST NO. 1 OF 2(8708- )2Y

Click highlighted areas on diagram

diagram 17700 17700A 17701 17705 17736 17801 17807 17841 17841 17845 8401 9165160820 9338515020
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-54340

2Y..YH81..ARL,GEN

 1
17700-54340

2Y..YH81..ARL,GEN

 1
17700A - NUT, WING(FOR AIR CLEANER)
90175-08008

2Y..YH81

 1
90175-08008

2Y..YH81

 1
17701 - CASE SUB-ASSY, AIR CLEANER
17701-54200

2Y..YH81

 1
17701-54200

2Y..YH81

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-54130

2Y..YH81..ARL,GEN

 1
17705-54130

2Y..YH81..ARL,GEN

 1
17736 - NUT, AIR CLEANER CASE
90175-06003

2Y..YH81

 1
90175-06003

2Y..YH81

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-54070

2Y..YH81..ARL,GEN

 1
17801-54070

2Y..YH81..ARL,GEN

 1
17807 - PLATE SUB-ASSY, AIR CLEANER FILTER SET
17807-54010

2Y..YH81

 1
17807-54010

2Y..YH81

 1
17841 - GASKET, FILTER ELEMENT
17841-54010

2Y..YH81

 2
17841-54010

2Y..YH81

 2
17841 - GASKET, FILTER ELEMENT
17841-54010

2Y..YH81

 2
17841-54010

2Y..YH81

 2
17845 - GASKET, AIR CLEANER CAP
17845-54010

2Y..YH81

 1
17845-54010

2Y..YH81

 1
Common parts
91651-60820
93385-15020
Linked diagrams
8401

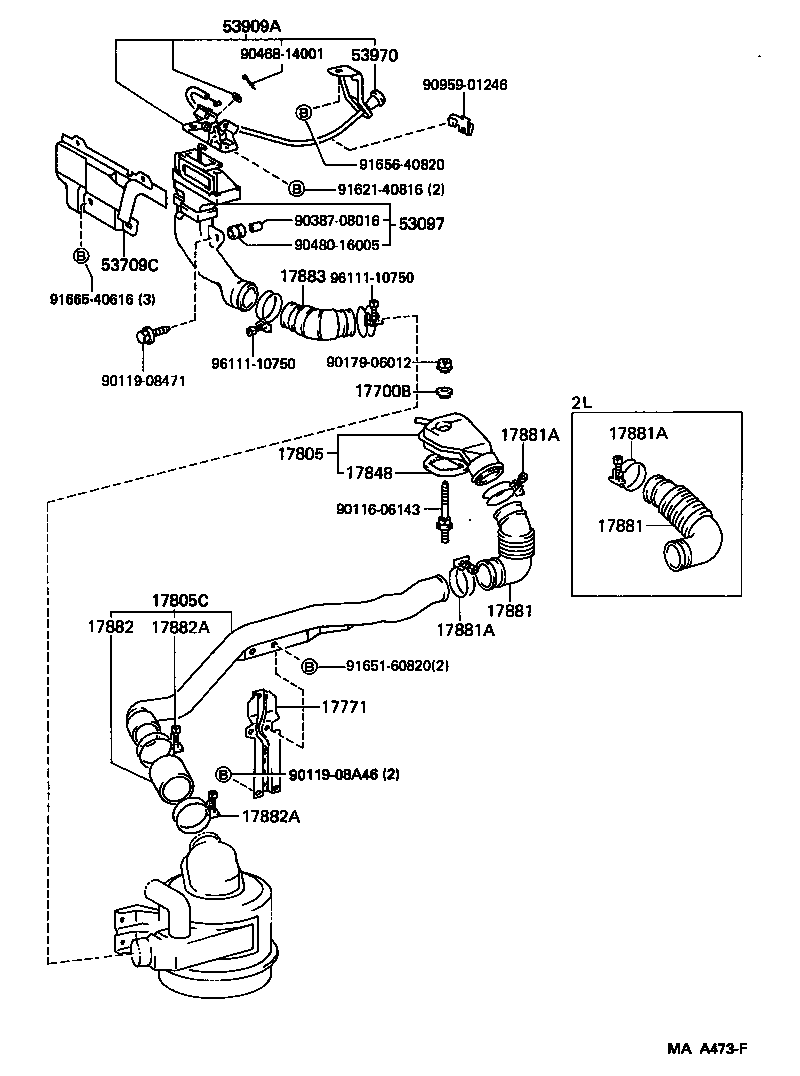

ILLUST NO. 2 OF 2(8708- )2Y..ARL,GEN

Click highlighted areas on diagram

diagram 17700B 17771 17805 17805C 17848 17881 17881 17881A 17881A 17881A 17882 17882A 17882A 17883 53097 53709C 53909A 53970 9011606143 9011908471 9011908A46 9017906012 9038708016 9046814001 9048016005 9095901246 9162140816 9165160820 9165640820 9166540616 9611110750 9611110750
Part # Description Qty Price
17700B - WASHER, SEAL(FOR AIR CLEANER)
90210-09026

2Y..YH81

 1
90210-09026

2Y..YH81

 1
17771 - BRACKET, AIR CLEANER INLET DUCT
17771-54020

2Y..YH81

 1
17771-54020

2Y..YH81

 1
17805 - CONNECTOR SUB-ASSY, INTAKE AIR
17805-72030

2Y..YH81

 1
17805-72030

2Y..YH81

 1
17805C - PIPE SUB-ASSY, AIR CLEANER, NO.1
17805-54061

2Y..YH81

 1
17805-54061

2Y..YH81

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
17848-35010

2Y..YH81

 1
17848-35010

2Y..YH81

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-71070

2Y..YH81

 1
17881-71070

2Y..YH81

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-71070

2Y..YH81

 1
17881-71070

2Y..YH81

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10690

2Y..YH81

AIR CLEANER SIDE

 1
96111-10690

2Y..YH81

AIR CLEANER SIDE

 1
96111-10750

2Y..YH81

CARBURETOR SIDE

 1
96111-10750

2Y..YH81

CARBURETOR SIDE

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10690

2Y..YH81

AIR CLEANER SIDE

 1
96111-10690

2Y..YH81

AIR CLEANER SIDE

 1
96111-10750

2Y..YH81

CARBURETOR SIDE

 1
96111-10750

2Y..YH81

CARBURETOR SIDE

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10690

2Y..YH81

AIR CLEANER SIDE

 1
96111-10690

2Y..YH81

AIR CLEANER SIDE

 1
96111-10750

2Y..YH81

CARBURETOR SIDE

 1
96111-10750

2Y..YH81

CARBURETOR SIDE

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-54220

2Y..YH81

 1
17882-54220

2Y..YH81

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10750

2Y..YH81

 2
96111-10750

2Y..YH81

 2
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10750

2Y..YH81

 2
96111-10750

2Y..YH81

 2
17883 - HOSE, AIR CLEANER, NO.3
17883-95A00

2Y..YH81

 1
17883-95A00

2Y..YH81

 1
53097 - INLET SUB-ASSY
53097-95A01

YH81

 1
53097-95A01

YH81

 1
53709C - COVER SUB-ASSY, AIR CLEANER INLET
53709-95A04

YH81

 1
53709-95A04

YH81

 1
53909A - BRACKET SUB-ASSY, AIR CLEANER SHUTTER, NO.1
53909-95A02

YH81..LHD

 1
53909-95A02

YH81..LHD

 1
53970 - CABLE ASSY, AIR CLEANER INLET SHUTTER CONTROL
53970-95A02

YH81..LHD

 1
53970-95A02

YH81..LHD

 1
Common parts
90116-06143
90119-08471
90119-08A46
90179-06012
90387-08016
90468-14001
90480-16005
90959-01246
91621-40816
91651-60820
91656-40820
91665-40616
96111-10750
