YH81L-MDBW3 (1985)

Toyota Dyna100

Production Aug 1985 - Aug 1987
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

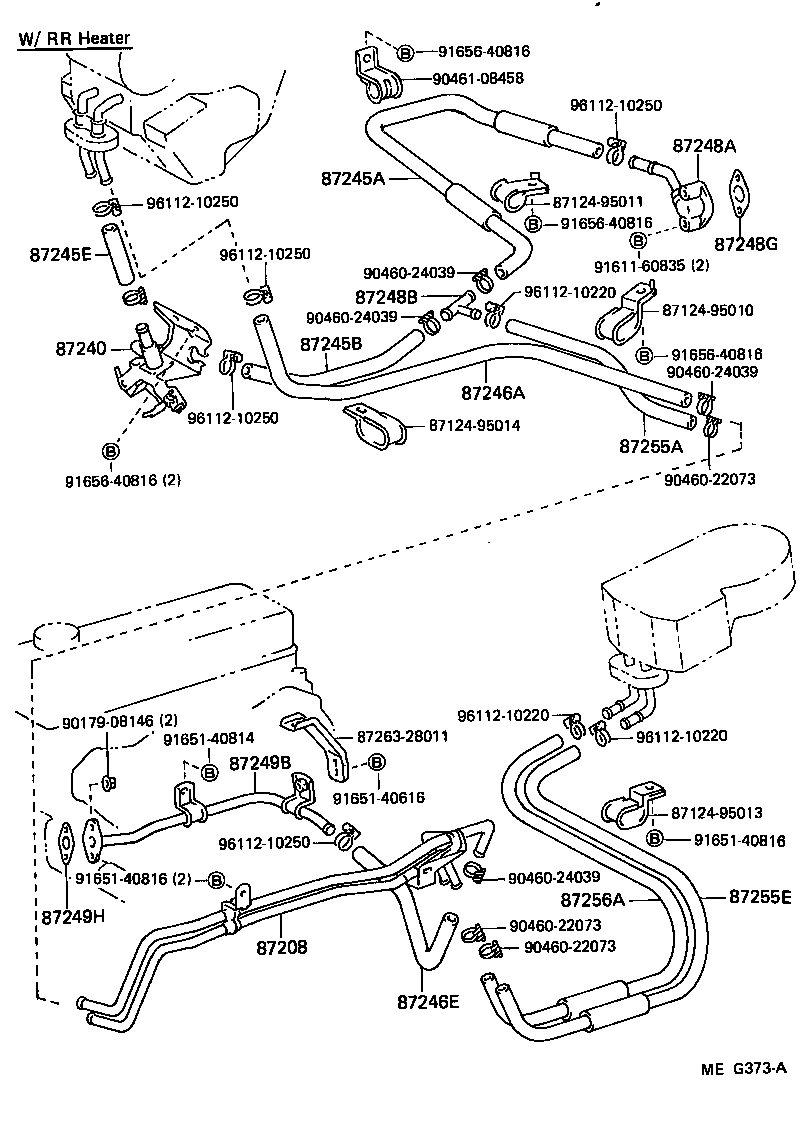

(8508- )YH8#

Click highlighted areas on diagram

diagram 8712495010 8712495011 8712495013 8712495014 87208 87240 87245A 87245B 87245E 87246A 87246E 87248A 87248B 87248G 87249B 87249H 87255A 87255E 87256A 8726328011 9017908146 9046022073 9046022073 9046022073 9046024039 9046024039 9046024039 9046024039 9046108458 9161160835 9165140616 9165140814 9165140816 9165140816 9165640816 9165640816 9165640816 9165640816 9611210220 9611210220 9611210220 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-95406

LH80,YH8#..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95045

YH8#

 1
87245E - HOSE, HEATER WATER, INLET E
99556-30100

LH80,YH8#

*H,L=60

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30980

LH80,YH8#..LHD

*H,L=820

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95051

YH8#

 1
87248A - PIPE, HEATER WATER INLET, A
87208-28010

YH8#

 1
87248G - GASKET, WATER INLET PIPE
11493-71010

YH8#

 1
87249B - PIPE, HEATER WATER OUTLET, B
87208-28021

YH8#

 1
87249H - GASKET, WATER OUTLET PIPE
17175-72010

YH8#

 1
Common parts
87124-95010
87124-95011
87124-95013
87124-95014
87263-28011
90179-08146
90460-22073
90460-24039
90461-08458
91611-60835
91651-40616
91651-40814
91651-40816
91656-40816
96112-10220
96112-10250

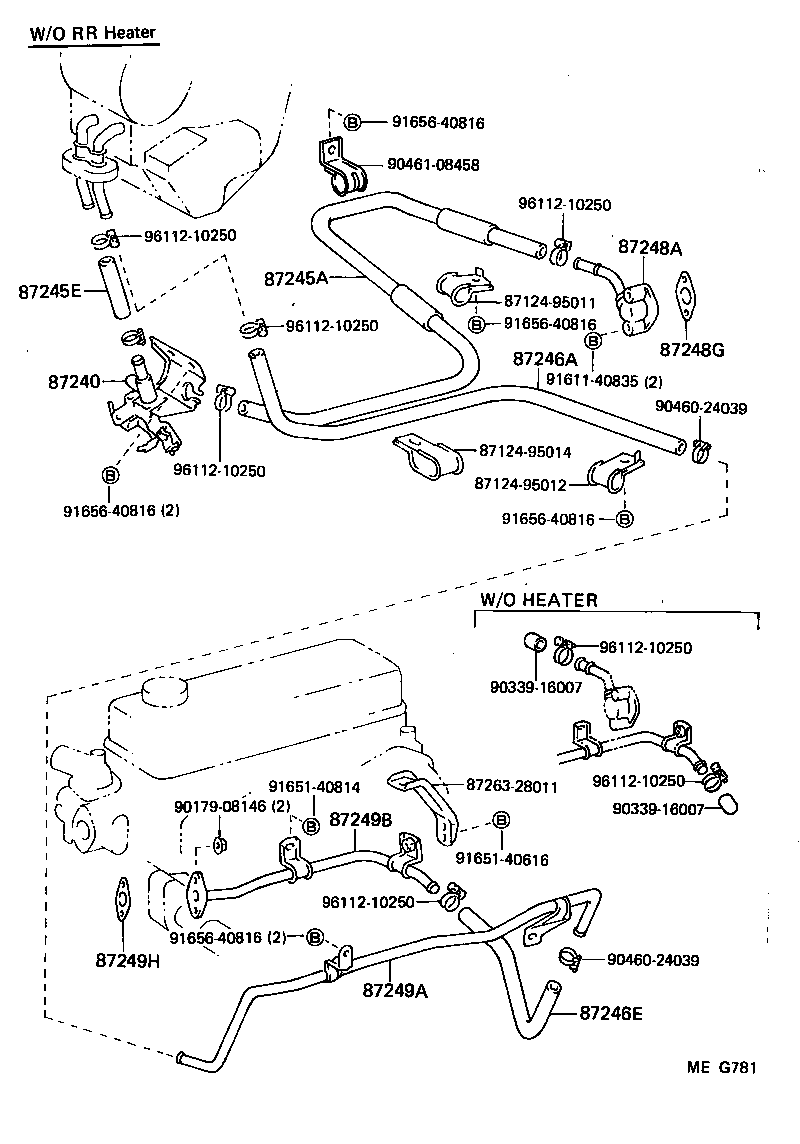

(8508- )YH8#

Click highlighted areas on diagram

diagram 8712495011 8712495012 8712495014 87240 87245A 87245E 87246A 87246E 87248A 87248G 87249A 87249B 87249H 8726328011 9017908146 9033916007 9033916007 9046024039 9046024039 9046108458 9161140835 9165140616 9165140814 9165640816 9165640816 9165640816 9165640816 9165640816 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-95406

LH80,YH8#..LHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-95045

YH8#

 1
87245E - HOSE, HEATER WATER, INLET E
99556-30100

LH80,YH8#

*H,L=60

 1
87246A - HOSE, HEATER WATER, OUTLET A
99556-30980

LH80,YH8#..LHD

*H,L=820

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-95051

YH8#

 1
87248A - PIPE, HEATER WATER INLET, A
87208-28010

YH8#

 1
87248G - GASKET, WATER INLET PIPE
11493-71010

YH8#

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-95A02

YH8#

 1
87249B - PIPE, HEATER WATER OUTLET, B
87208-28021

YH8#

 1
87249H - GASKET, WATER OUTLET PIPE
17175-72010

YH8#

 1
Common parts
87124-95011
87124-95012
87124-95014
87263-28011
90179-08146
90339-16007
90460-24039
90461-08458
91611-40835
91651-40616
91651-40814
91656-40816
96112-10250
