YH81L-MDBW3 (1987)

Toyota Dyna100

Production Aug 1987 - May 1995
Engine 2Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

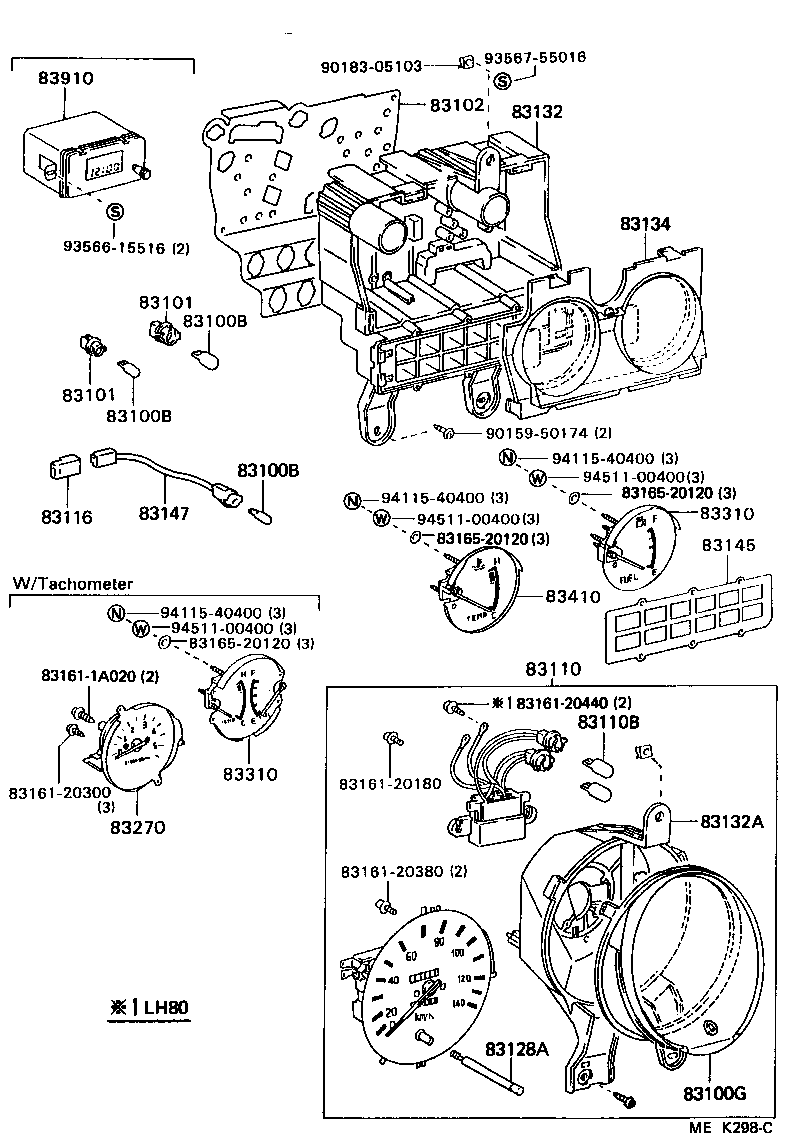

ILLUST NO. 1 OF 3(8708- )

Click highlighted areas on diagram

diagram 83100B 83100B 83100B 83100G 83101 83101 83102 83110 83110B 83116 83128A 83132 83132A 83134 83145 83147 831611A020 8316120180 8316120300 8316120380 8316120440 8316520120 8316520120 8316520120 83270 83310 83310 83410 83910 9015950174 9018305103 9356615516 9356755016 9411540400 9411540400 9411540400 9451100400 9451100400 9451100400
Part # Description Qty Price
83100B - BULB, COMBINATION METER, NO.1
99132-12034

YH81..EUR

12V 3.4W

 9
99132-12034

YH81..ARL,EUR

12V 3.4W

 9
83100B - BULB, COMBINATION METER, NO.1
99132-12034

YH81..EUR

12V 3.4W

 9
99132-12034

YH81..ARL,EUR

12V 3.4W

 9
83100B - BULB, COMBINATION METER, NO.1
99132-12034

YH81..EUR

12V 3.4W

 9
99132-12034

YH81..ARL,EUR

12V 3.4W

 9
83100G - GLASS, COMBINATION METER
83134-95000

LH80,YH81..EUR,GEN

 1
83134-95408

LH80,YH81..EUR

W(TRIP METER)

 1
83134-95408

LH80,YH81..EUR,GEN

W(TRIP METER)

 1
83134-95000

LH80,YH81..EUR

 1
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-20040

YH81..EUR

12V 3.4W

 9
83101-20040

YH81..EUR

 9
83101 - SOCKET SUB-ASSY, COMBINATION METER BULB
83101-20040

YH81..EUR

12V 3.4W

 9
83101-20040

YH81..EUR

 9
83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1
83247-95K01

YH81

W(TACHOMETER)

 1
83247-95K00

YH81

 1
83110 - SPEEDOMETER ASSY
83110-95453

YH81..EUR,GEN

W(TRIP METER)

 1
83110-95035

YH81..EUR,GEN

 1
83110-95453

YH81..EUR

W(TRIP METER)

 1
83110-95035

YH81..EUR

 1
83110B - BULB, SPEEDOMETER
99132-12034

LH80,YH81

 2
83116 - BRACKET, SPEEDOMETER
83116-95M00

LH80,YH81

 1
83128A - KNOB, METER
83128-89300

LH80,YH81

 1
83132 - CASE, COMBINATION METER
83132-95B00

YH81;LH80..ARL,EUR

W(TACHOMETER)

 1
83132-95B00

YH81;LH80..5F..(ARL,EUR)

W(TACHOMETER)

 1
83132-95B01

LH80,YH81

 1
83132-95B01

LH80,YH81..5F

 1
83132A - CASE, METER
83132-95404

LH80,YH81

 1
83134 - COVER, COMBINATION METER, NO.1
83134-95B00

YH81;LH80..ARL,EUR

W(TACHOMETER)

 1
83134-95B01

LH80,YH81

 1
83134-95B01

LH80,YH81..5F

 1
83134-95B00

YH81;LH80..5F..(ARL,EUR)

W(TACHOMETER)

 1
83145 - LENS, METER, NO.1
83145-95036

YH81..EUR

 1
83145-95L03

YH81..EUR

 1
83147 - LAMP, METER NO.1
83147-95M02

LH80,YH81

 1
83270 - TACHOMETER ASSY, ENGINE
83242-95B04

YH81

 1
83310 - GAGE ASSY, FUEL RECEIVER
83243-95B03

LH80..EUR;YH81..EUR,GEN

W(TACHOMETER)

 1
83243-95B01

LH80,YH81..EUR,GEN

 1
83310 - GAGE ASSY, FUEL RECEIVER
83243-95B03

LH80..EUR;YH81..EUR,GEN

W(TACHOMETER)

 1
83243-95B01

LH80,YH81..EUR,GEN

 1
83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER
83244-95M01

LH80,YH81..EUR,GEN

 1
83244-95B01

LH80,YH81..EUR,GEN

 1
83910 - CLOCK ASSY
83910-37030

LH80,YH81

 1
83910-95403

LH80,YH81

 1
Common parts
83161-1A020
83161-20180
83161-20300
83161-20380
83161-20440
83165-20120
90159-50174
90183-05103
93566-15516
93567-55016
94115-40400
94511-00400

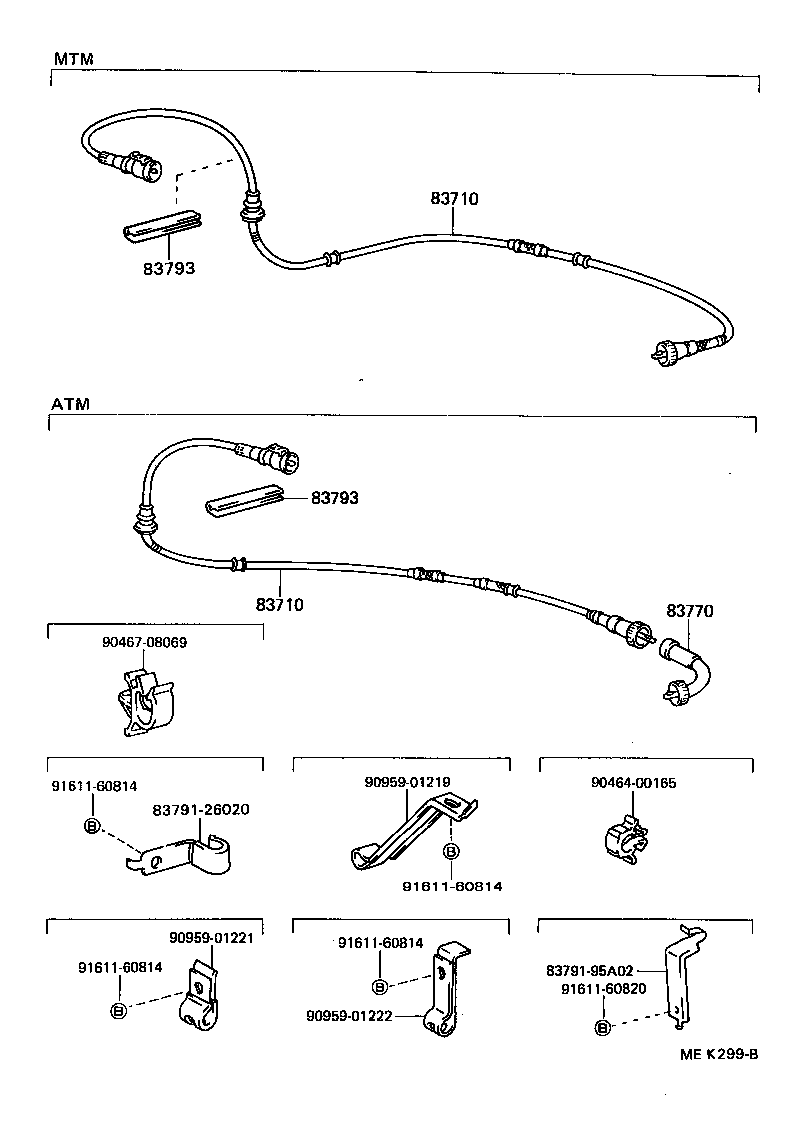

ILLUST NO. 2 OF 3(8708- )

Click highlighted areas on diagram

diagram 83710 83710 83770 8379126020 8379195A02 83793 83793 9046400165 9046708069 9095901219 9095901221 9095901222 9161160814 9161160814 9161160814 9161160814 9161160820
Part # Description Qty Price
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-95A23

YH81..LHD

 1
83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1
83710-95A23

YH81..LHD

 1
83793 - PROTECTOR, SPEED CONTROL CABLE
83739-95401

LH80,YH81

 1
83739-95400

LH80,YH81

 1
83793 - PROTECTOR, SPEED CONTROL CABLE
83739-95401

LH80,YH81

 1
83739-95400

LH80,YH81

 1
Common parts
83791-26020
83791-95A02
90464-00165
90467-08069
90959-01219
90959-01221
90959-01222
91611-60814
91611-60820

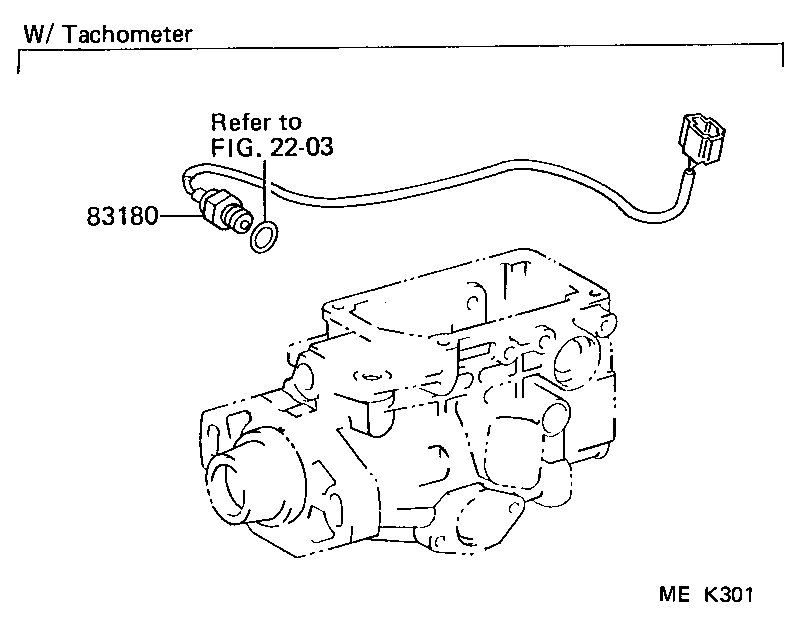

ILLUST NO. 3 OF 3(8708- )

Click highlighted areas on diagram

diagram 2203 83180
Part # Description Qty Price
Linked diagrams
2203
