YH81L-MDBW (1987)
Toyota Dyna100
Production
Aug 1987
-
May 1995
Engine
2Y
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

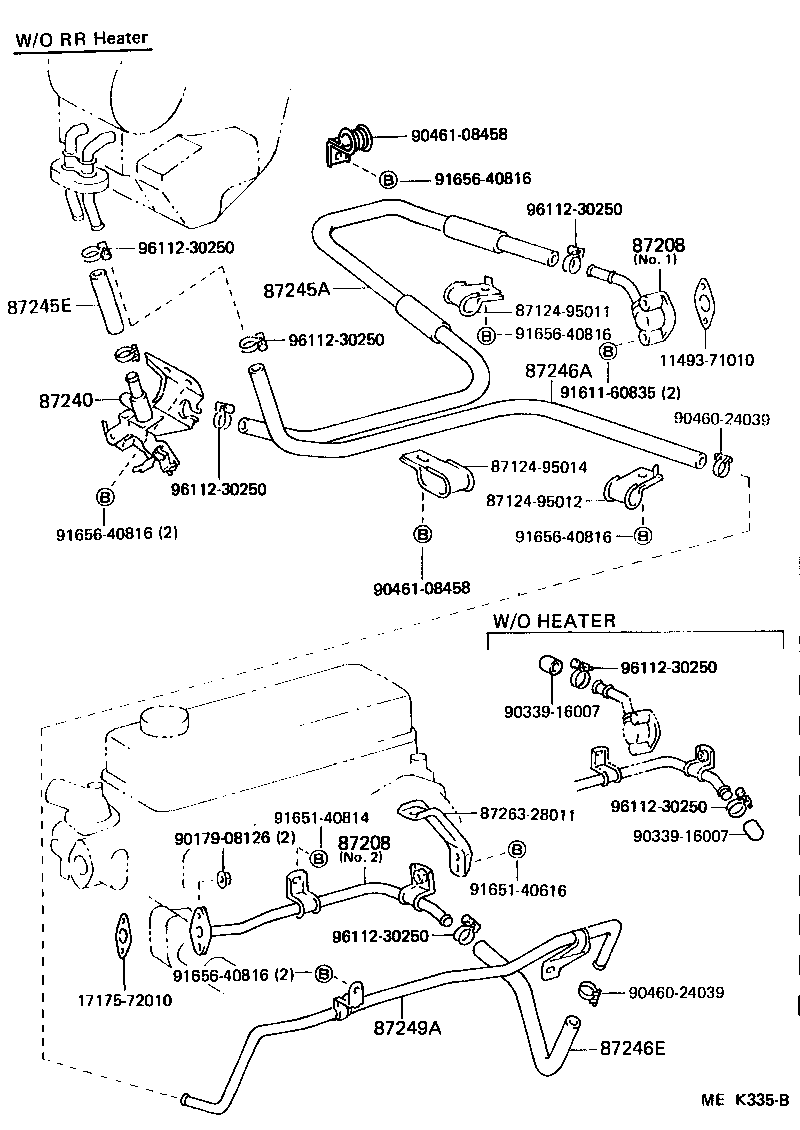

(8708- )YH81
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-28021 |
YH81 NO.2 |
1 | ||
| 87208-28010 |
YH81 NO.1 |
1 | ||
| 87208-28500 |
YH81 NO.1 |
1 | ||
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-28021 |
YH81 NO.2 |
1 | ||
| 87208-28010 |
YH81 NO.1 |
1 | ||
| 87208-28500 |
YH81 NO.1 |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-95408 |
LH80,YH81..LHD |
1 | ||
| 87240-95410 |
LH80,YH81..LHD |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-95045 |
YH81 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 99556-30135 |
LH80,YH81 *H,L=135 |
1 | ||
| 99556-30100 |
LH80,YH81 *H,L=60 |
1 | ||
| 99556-30135 |
YH81;LH80..IV;LH80..EUR..CBU *H,L=135 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 99556-30980 |
LH80,YH81..LHD *H,L=980 |
1 | ||
| 99556-30980 |
LH80,YH81..LHD *H,L=980 |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-95051 |
YH81 |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87208-95A10 |
YH81 |
1 | ||
| Common parts | ||||
| 11493-71010 | ||||
| 17175-72010 | ||||
| 87124-95011 | ||||
| 87124-95012 | ||||
| 87124-95014 | ||||
| 87263-28011 | ||||
| 90179-08126 | ||||
| 90339-16007 | ||||
| 90460-24039 | ||||
| 90461-08458 | ||||
| 91611-60835 | ||||
| 91651-40616 | ||||
| 91651-40814 | ||||
| 91656-40816 | ||||
| 96112-30250 | ||||

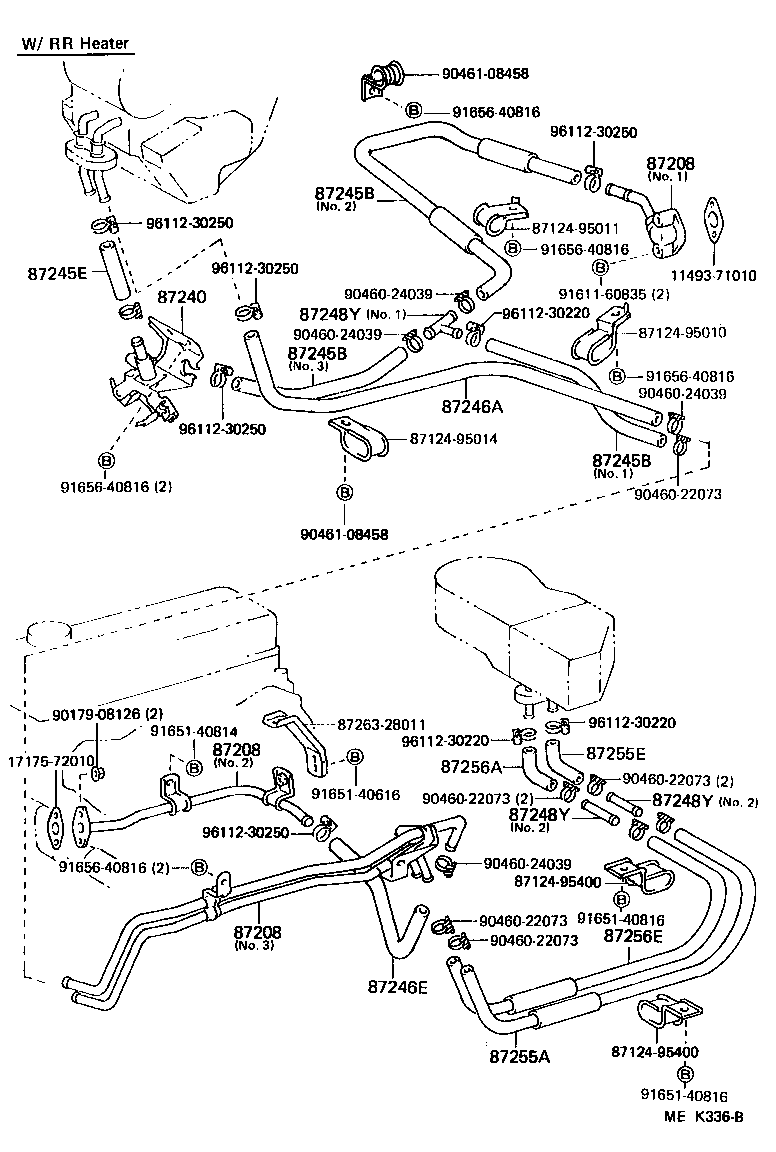

(8708- )YH81
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-28021 |
YH81 NO.2 |
1 | ||
| 87208-28010 |
YH81 NO.1 |
1 | ||
| 87208-28500 |
YH81 NO.1 |
1 | ||
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-28021 |
YH81 NO.2 |
1 | ||
| 87208-28010 |
YH81 NO.1 |
1 | ||
| 87208-28500 |
YH81 NO.1 |
1 | ||
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-28021 |
YH81 NO.2 |
1 | ||
| 87208-28010 |
YH81 NO.1 |
1 | ||
| 87208-28500 |
YH81 NO.1 |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-95408 |
LH80,YH81..LHD |
1 | ||
| 87240-95410 |
LH80,YH81..LHD |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 99556-30135 |
LH80,YH81 *H,L=135 |
1 | ||
| 99556-30100 |
LH80,YH81 *H,L=60 |
1 | ||
| 99556-30135 |
YH81;LH80..IV;LH80..EUR..CBU *H,L=135 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 99556-30980 |
LH80,YH81..LHD *H,L=980 |
1 | ||
| 99556-30980 |
LH80,YH81..LHD *H,L=980 |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-95051 |
YH81 |
1 | ||
| Common parts | ||||
| 11493-71010 | ||||
| 17175-72010 | ||||
| 87124-95010 | ||||
| 87124-95011 | ||||
| 87124-95014 | ||||
| 87124-95400 | ||||
| 87263-28011 | ||||
| 90179-08126 | ||||
| 90460-22073 | ||||
| 90460-24039 | ||||
| 90461-08458 | ||||
| 91611-60835 | ||||
| 91651-40616 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91656-40816 | ||||
| 96112-30220 | ||||
| 96112-30250 | ||||
