YH81L-MDBW (1987)
Toyota Dyna100
Production
Aug 1987
-
May 1995
Engine
2Y
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

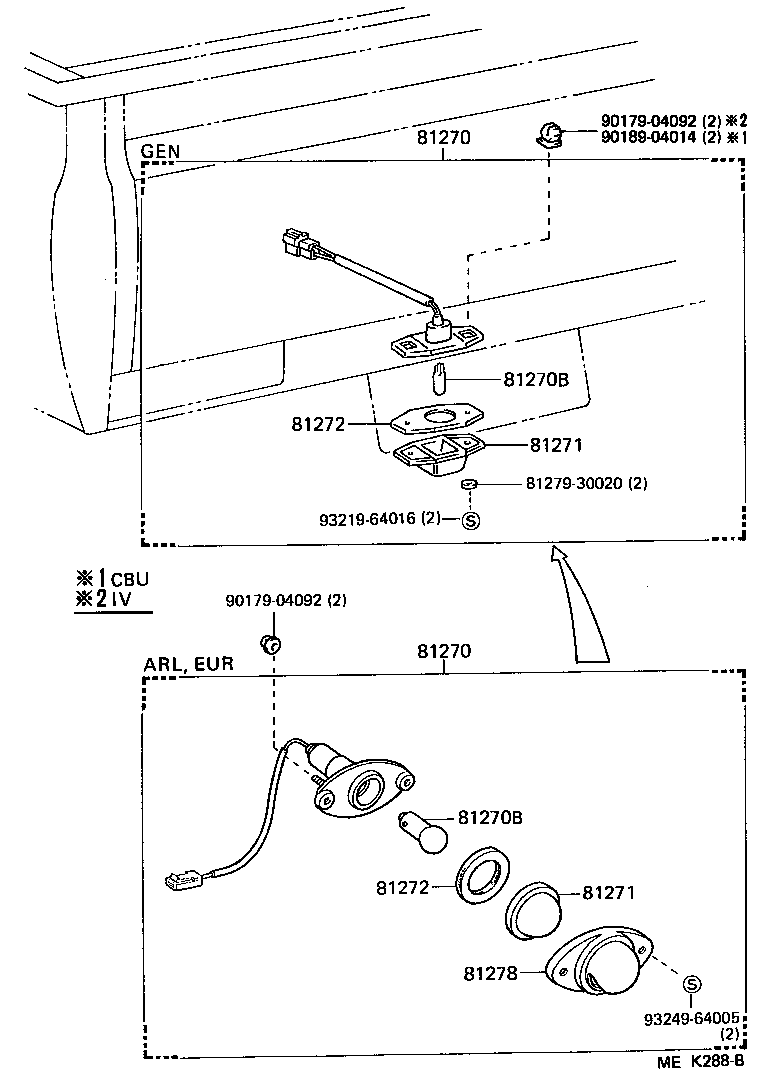

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-37030 |
LH80,YH81..ARL,EUR |
2 | ||
| 81270-95015 |
LH80,YH81..ARL,EUR |
2 | ||
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-37030 |
LH80,YH81..ARL,EUR |
2 | ||
| 81270-95015 |
LH80,YH81..ARL,EUR |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 90981-12013 |
LH80,YH81..ARL,EUR 12V 10W |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 90981-12013 |
LH80,YH81..ARL,EUR 12V 10W |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-10010 |
LH80,YH81..ARL,EUR |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-10010 |
LH80,YH81..ARL,EUR |
2 | ||
| 81272 - GASKET, LICENSE PLATE LAMP LENS | ||||
| 81272-10010 |
LH80,YH81..ARL,EUR |
2 | ||
| 81272 - GASKET, LICENSE PLATE LAMP LENS | ||||
| 81272-10010 |
LH80,YH81..ARL,EUR |
2 | ||
| 81278 - COVER, LICENSE PLATE LAMP | ||||
| 81278-10011 |
LH80,YH81..ARL,EUR |
2 | ||
| Common parts | ||||
| 81279-30020 | ||||
| 90179-04092 | ||||
| 90189-04014 | ||||
| 93219-64016 | ||||
| 93249-64005 | ||||
