YH80R-MDB3 (1985)

Toyota Dyna100

Production Aug 1985 - Aug 1987
Engine 1Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

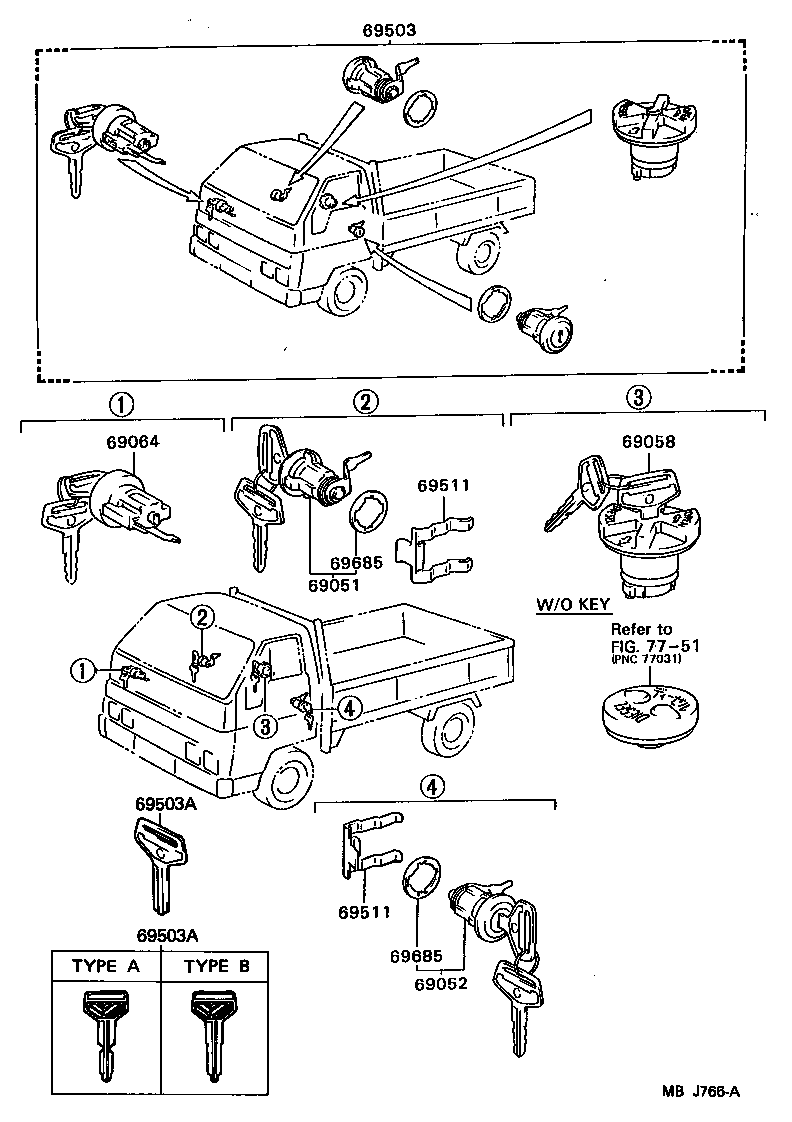

Click highlighted areas on diagram

diagram 69051 69052 69058 69064 69503 69503A 69503A 69511 69511 69685 69685 7751
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-95403

LH80,YH8#..ARL,GEN

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-95403

LH80,YH8#..ARL,GEN

 1
69058 - CYLINDER & KEY SET, FUEL FILLER LID
69058-95400

YH8#..ARL,GEN

 1
69064 - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-95407

YH80;LH80,YH81..ARL

 1
69503 - CYLINDER SET, LOCK
69503-95438

YH80;LH80,YH81..ARL

 1
69503-95444

LH80,YH8#..ARL,GEN

W/FUEL TANK CAP KEY

 1
69503A - KEY, BLANK
90999-00066

LH80,YH8#..ARL,GEN

MASTER KEY

 1
69503A - KEY, BLANK
90999-00066

LH80,YH8#..ARL,GEN

MASTER KEY

 1
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-95400

LH80,YH8#

 2
69511 - RETAINER, FRONT DOOR LOCK CYLINDER
69511-95400

LH80,YH8#

 2
69685 - PAD, LOCK CYLINDER
69513-32010

LH80,YH8#

 2
69685 - PAD, LOCK CYLINDER
69513-32010

LH80,YH8#

 2
Linked diagrams
7751
