YH80R-MDB3 (1985)

Toyota Dyna100

Production Aug 1985 - Aug 1987
Engine 1Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )T3

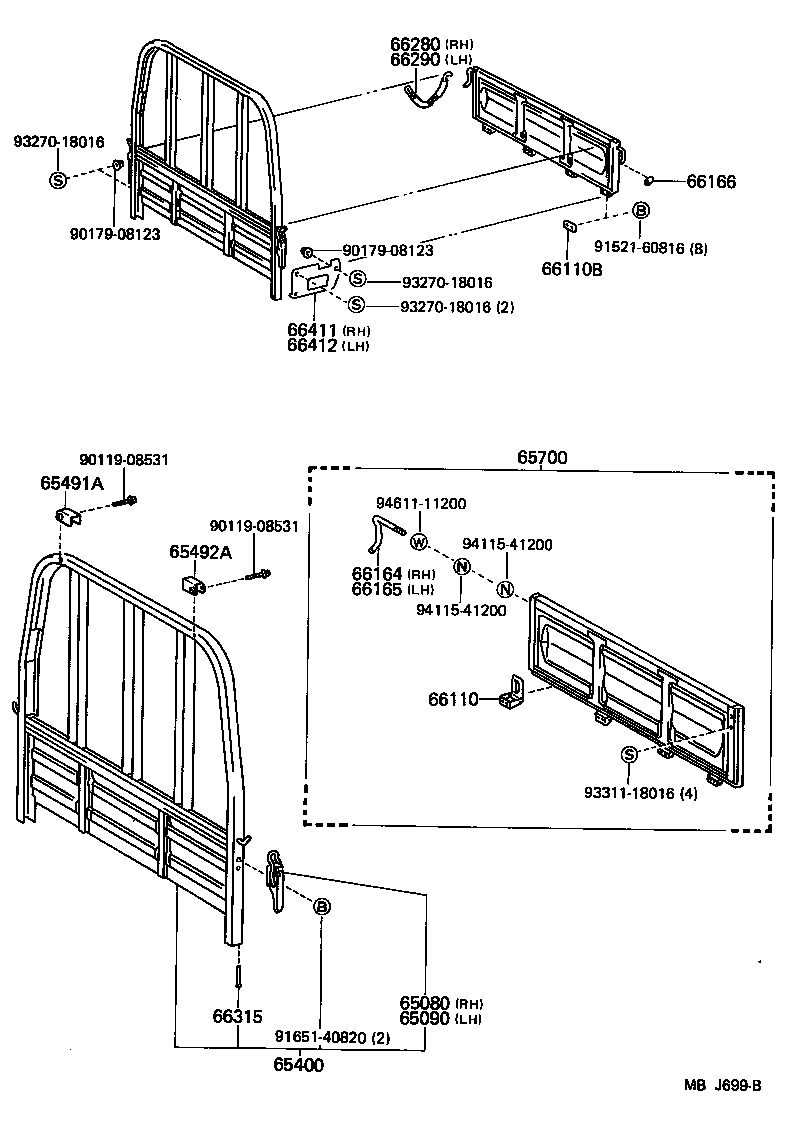

Click highlighted areas on diagram

diagram 65080 65090 65400 65491A 65492A 65700 66110 66110B 66164 66165 66166 66280 66290 66315 66411 66412 9011908531 9011908531 9017908123 9017908123 9152160816 9165140820 9327018016 9327018016 9327018016 9331118016 9411541200 9411541200 9461111200
Part # Description Qty Price
65080 - HANDLE ASSY, SIDE GATE LATCK, RH
65480-92700

LH80,YH8#..T3..(EUR,GEN)

 1
65090 - HANDLE ASSY, SIDE GATE LATCH, LH
65490-92701

LH80,YH8#..T3..(EUR,GEN)

 1
65400 - FRAME ASSY, REAR BODY GUARD
65400-95A06

LH80,YH8#..T3..(EUR,GEN)

 1
65491A - STOP, GUARD FRAME LOAD SLIDE, RH
65491-95A03

LH80,YH8#..T3..(EUR,GEN)

 1
65492A - STOP, GUARD FRAME LOAD SLIDE, LH
65492-95A00

LH80,YH8#..T3..(EUR,GEN)

 1
65700 - GATE ASSY, REAR BODY TAIL
65700-95031

LH80,YH8#..T3..(EUR,GEN)

 1
65700-95A03

LH80,YH8#..T3..(EUR,GEN)

 1
66110 - HINGE ASSY, TAIL GATE
66110-95020

LH80,YH8#..T3..(EUR,GEN)

 4
66110B - RETAINER, TAIL GATE HINGE, LOWER
66115-95013

LH80,YH8#..T3..(EUR,GEN)

 4
66164 - HANDLE, TAIL GATE LATCH, RH
66264-95A00

LH80,YH8#..T3..(EUR,GEN)

 1
66264-95010

LH80,YH8#..T3..(EUR,GEN)

 1
66165 - HANDLE, TAIL GATE LATCH, LH
66265-95011

LH80,YH8#..T3..(EUR,GEN)

 1
66265-95A00

LH80,YH8#..T3..(EUR,GEN)

 1
66166 - CAP, GATE LATCH HANDLE
66165-95011

LH80,YH8#..T3..(EUR,GEN)

 2
66280 - CHAIN ASSY, TAIL GATE, RH
66280-95A00

LH80,YH8#..T3..(EUR,GEN)

 1
66290 - CHAIN ASSY, TAIL GATE, LH
66280-95A00

LH80,YH8#..T3..(EUR,GEN)

 1
66315 - HOOK, ROPE
66312-95A01

LH80,YH8#..T3..(EUR,GEN)

 2
66411 - BRACKET, GUARD FRAME, RH
66411-95022

LH80,YH8#..T3..(EUR,GEN)

 1
66412 - BRACKET, GUARD FRAME, LH
66412-95022

LH80,YH8#..T3..(EUR,GEN)

 1
Common parts
90119-08531
90179-08123
91521-60816
91651-40820
93270-18016
93311-18016
94115-41200
94611-11200
