YH80R-MDB (1985)

Toyota Dyna100

Production Aug 1985 - Aug 1987
Engine 1Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )YH8#..RHD

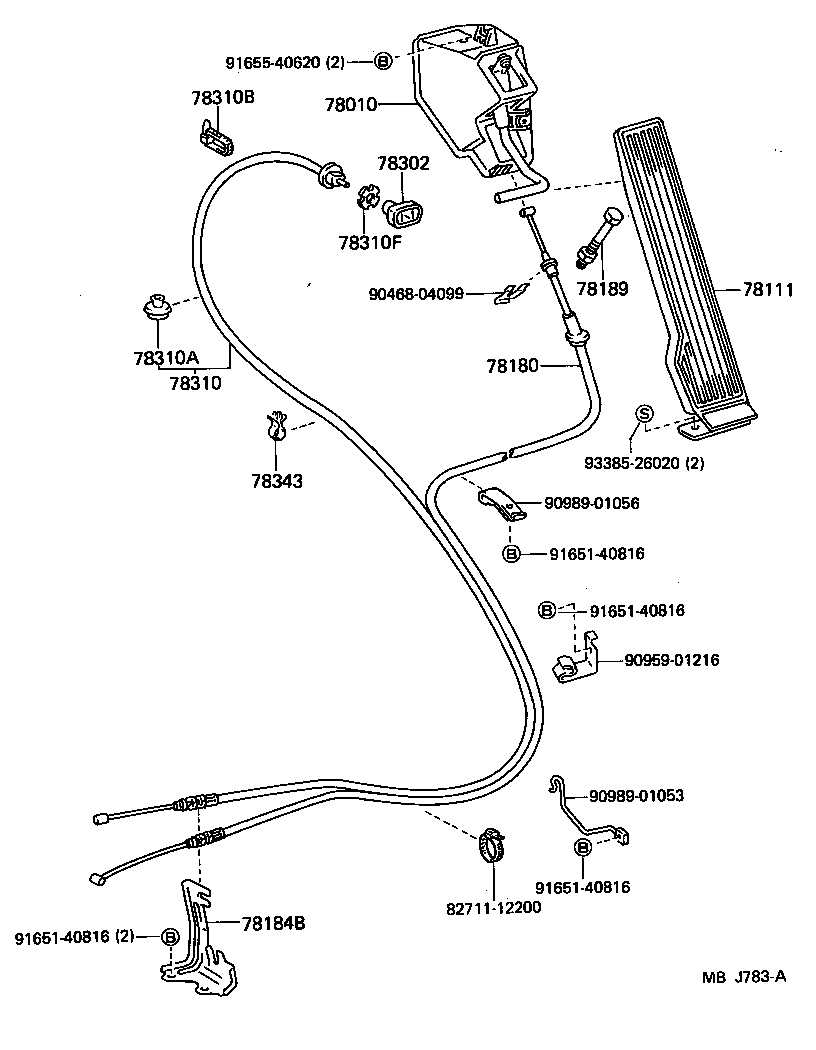

Click highlighted areas on diagram

diagram 78010 78111 78180 78184B 78189 78302 78310 78310A 78310B 78310F 78343 8271112200 9046804099 9095901216 9098901053 9098901056 9165140816 9165140816 9165140816 9165140816 9165540620 9338526020
Part # Description Qty Price
78010 - LINK, ACCELERATOR
78202-95010

LH80,YH8#..RHD

 1
78111 - PEDAL, ACCELERATOR
78110-95410

LH80,YH8#..RHD

 1
78180 - WIRE ASSY, ACCELERATOR
78150-95055

YH8#..RHD

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-95010

YH8#

 1
78189 - BOLT, ACCELERATOR PEDAL STOPPER
78208-95400

LH80,YH8#..RHD

 1
78302 - KNOB SUB-ASSY, CHOKE ROD
78302-95400

YH8#

 1
78310 - CABLE ASSY, CHOKE
78304-95A01

YH8#..RHD

 1
78310A - GROMMET, CHOKE CABLE
90480-15194

YH8#

 1
78310B - CLAMP, CHOKE CABLE
82711-12200

YH8#

 1
78310F - NUT, CHOKE
78314-95010

YH8#

 1
78343 - BRACKET, CHOKE ROD
78183-95701

YH8#

 1
Common parts
82711-12200
90468-04099
90959-01216
90989-01053
90989-01056
91651-40816
91655-40620
93385-26020
