YH80R-MDB (1985)
Toyota Dyna100
Production
Aug 1985
-
Aug 1987
Engine
1Y
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )

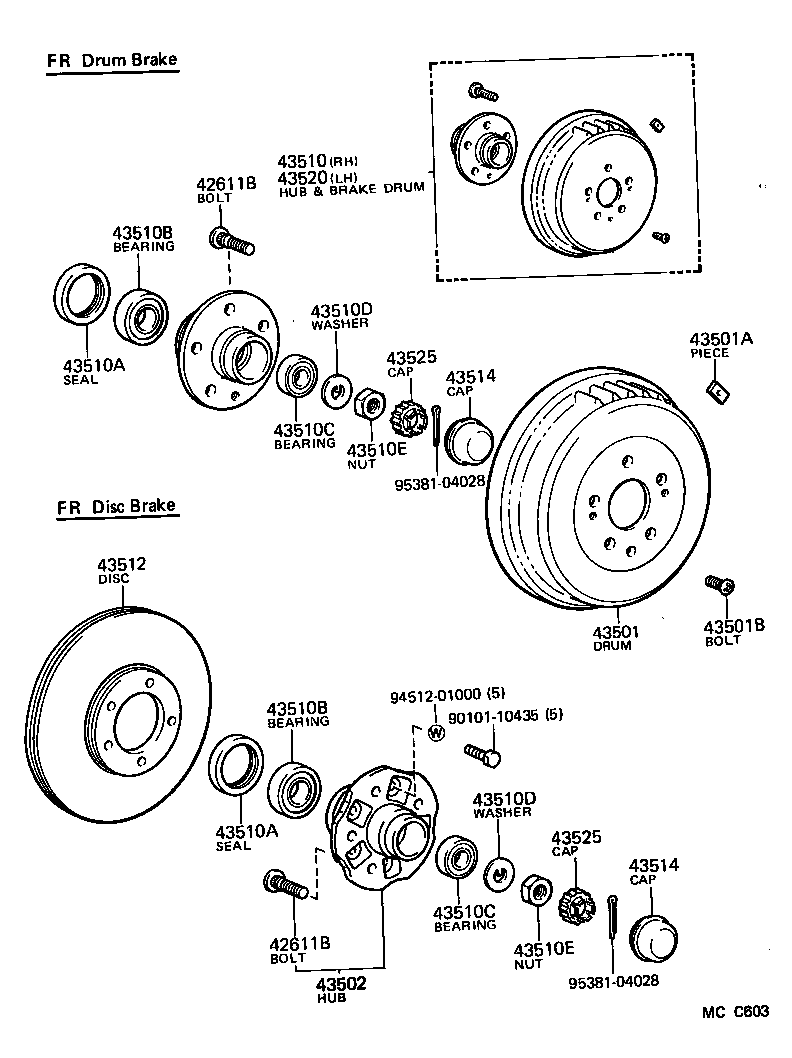

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42611B - BOLT, HUB (FOR FRONT AXLE) | ||||
| 90942-02035 |
LH80,YH8# FR DISC BRAKE |
10 | ||
| 90942-02052 |
LH80,YH80..GEN FR DRUM BRAKE |
10 | ||
| 42611B - BOLT, HUB (FOR FRONT AXLE) | ||||
| 90942-02035 |
LH80,YH8# FR DISC BRAKE |
10 | ||
| 90942-02052 |
LH80,YH80..GEN FR DRUM BRAKE |
10 | ||
| 43501 - DRUM SUB-ASSY, FRONT BRAKE | ||||
| 43512-26050 |
LH80,YH80..GEN |
2 | ||
| 43501A - PIECE, BALANCE (FOR FRONT BRAKE DRUM) | ||||
| 90937-01100 |
LH80,YH80..GEN 40.5G,40.5G |
1 | ||
| 90937-01146 |
LH80,YH80..GEN 25G,50G |
1 | ||
| 90937-01117 |
LH80,YH80..GEN 10G,10G |
1 | ||
| 90937-01118 |
LH80,YH80..GEN 20G,20G |
1 | ||
| 90937-01119 |
LH80,YH80..GEN 30G,30G |
1 | ||
| 43501B - BOLT, SET (FOR FRONT BRAKE DRUM SETTING) | ||||
| 90113-10035 |
LH80,YH80..GEN |
2 | ||
| 43502 - HUB SUB-ASSY, FRONT AXLE | ||||
| 43502-26050 |
LH80,YH8# |
2 | ||
| 43510 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH | ||||
| 43510-26060 |
LH80,YH80..GEN |
1 | ||
| 43510A - SEAL, OIL (FOR FRONT AXLE HUB) | ||||
| 90311-50005 |
LH80,YH8# |
2 | ||
| 43510A - SEAL, OIL (FOR FRONT AXLE HUB) | ||||
| 90311-50005 |
LH80,YH8# |
2 | ||
| 43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING) | ||||
| 90368-34001 |
LH80,YH8# |
2 | ||
| 43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING) | ||||
| 90368-34001 |
LH80,YH8# |
2 | ||
| 43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING) | ||||
| 90368-21001 |
LH80,YH8# |
2 | ||
| 43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING) | ||||
| 90368-21001 |
LH80,YH8# |
2 | ||
| 43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER) | ||||
| 90214-20007 |
LH80,YH8# |
2 | ||
| 43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER) | ||||
| 90214-20007 |
LH80,YH8# |
2 | ||
| 43510E - NUT (FOR STEERING KNUCKLE) | ||||
| 90170-19185 |
LH80,YH8# |
2 | ||
| 43510E - NUT (FOR STEERING KNUCKLE) | ||||
| 90170-19185 |
LH80,YH8# |
2 | ||
| 43512 - DISC, FRONT | ||||
| 43512-26040 |
LH80,YH8# |
2 | ||
| 43514 - CAP, FRONT HUB GREASE | ||||
| 43514-35010 |
LH80,YH8# |
2 | ||
| 43514 - CAP, FRONT HUB GREASE | ||||
| 43514-35010 |
LH80,YH8# |
2 | ||
| 43520 - HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH | ||||
| 43510-26060 |
LH80,YH80..GEN |
1 | ||
| 43525 - CAP, FRONT WHEEL ADJUSTING LOCK | ||||
| 43525-22010 |
LH80,YH8# |
2 | ||
| 43525 - CAP, FRONT WHEEL ADJUSTING LOCK | ||||
| 43525-22010 |
LH80,YH8# |
2 | ||
| Common parts | ||||
| 90101-10435 | ||||
| 94512-01000 | ||||
| 95381-04028 | ||||
