YH80R-MDB (1985)

Toyota Dyna100

Production Aug 1985 - Aug 1987
Engine 1Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )1Y,2Y

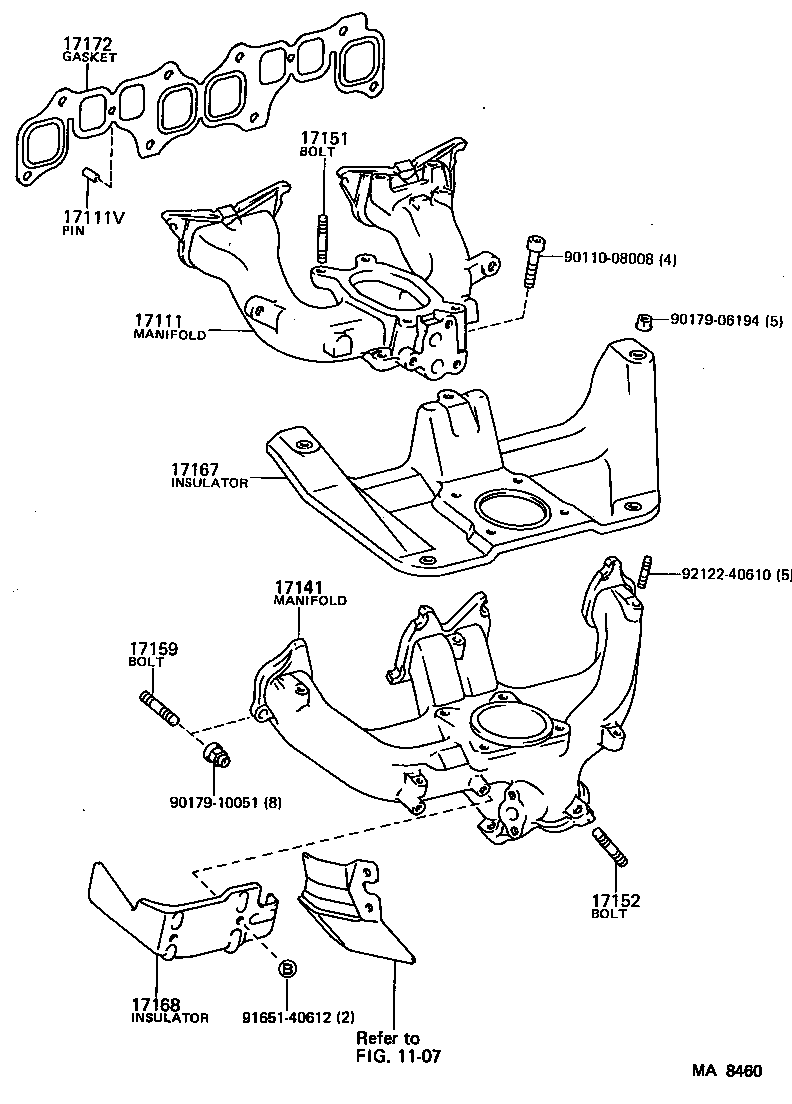

Click highlighted areas on diagram

diagram 1107 17111 17111V 17141 17151 17152 17159 17167 17168 17172 9011008008 9017906194 9017910051 9165140612 9212240610
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17111-71020

1Y,2Y..YH8#

 1
17111V - PIN, STRAIGHT(FOR INTAKE MANIFOLD SETTING)
90250-08120

1Y,2Y..YH8#

 2
17141 - MANIFOLD, EXHAUST
17141-71020

1Y,2Y..YH8#

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
92122-40835

1Y,2Y..YH8#

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10058

1Y,2Y..YH8#

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
90116-10063

1Y,2Y..YH8#

 8
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-71020

1Y,2Y..YH8#

 1
17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
12521-72010

1Y,2Y..YH8#

 1
17172 - GASKET, MANIFOLD TO CYLINDER HEAD
17172-71011

1Y,2Y..YH8#

 1
Common parts
90110-08008
90179-06194
90179-10051
91651-40612
92122-40610
Linked diagrams
1107
