YH80L-MDB (1985)
Toyota Dyna100
Production
Aug 1985
-
Aug 1987
Engine
1Y
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )

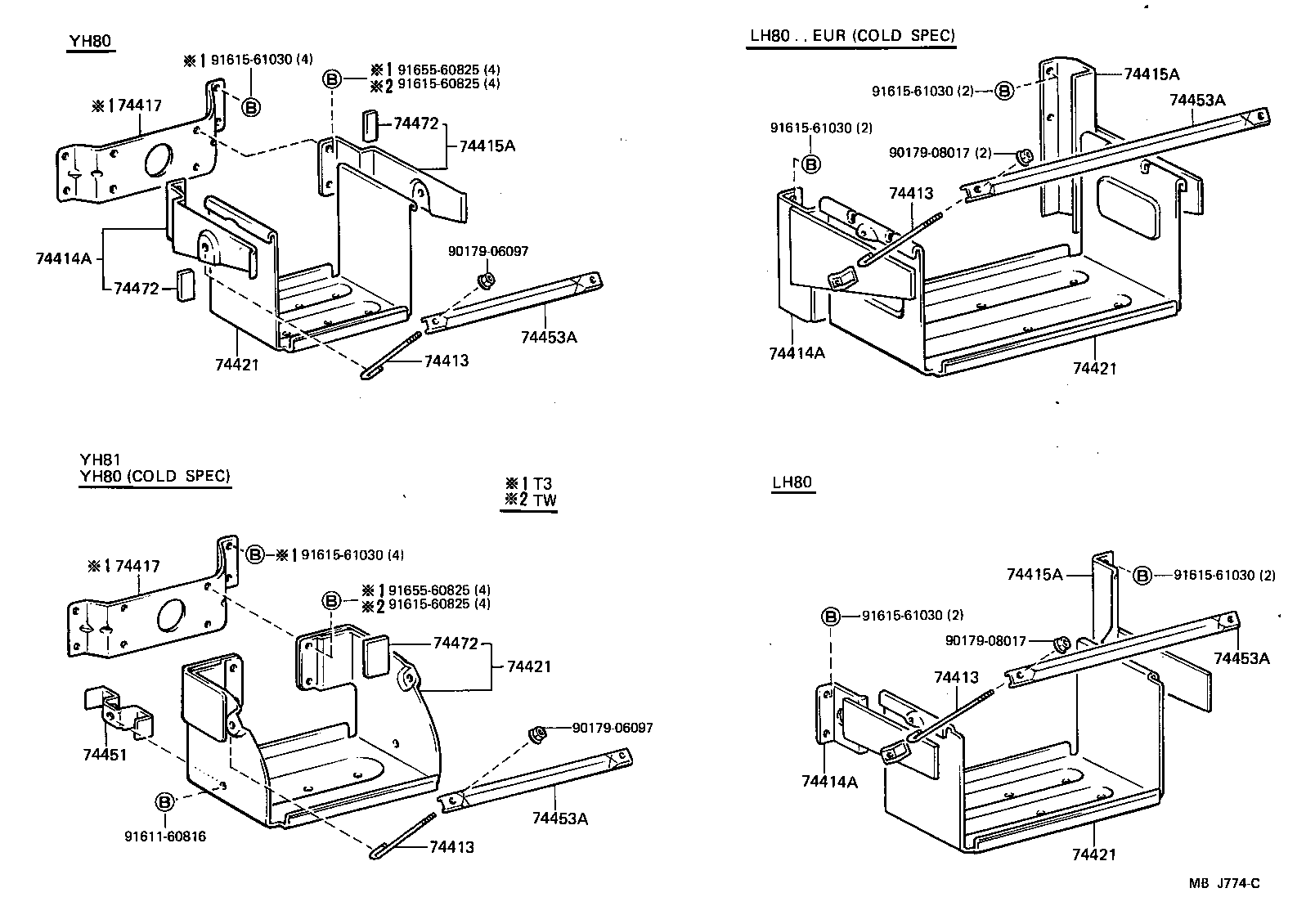

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74413 - BOLT, BATTERY CLAMP | ||||
| 74451-25020 |
YH8# |
2 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 74451-25020 |
YH8# |
2 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 74451-25020 |
YH8# |
2 | ||
| 74413 - BOLT, BATTERY CLAMP | ||||
| 74451-25020 |
YH8# |
2 | ||
| 74414A - BRACKET, BATTERY, NO.1 | ||||
| 74411-25011 |
YH80 |
1 | ||
| 74414A - BRACKET, BATTERY, NO.1 | ||||
| 74411-25011 |
YH80 |
1 | ||
| 74414A - BRACKET, BATTERY, NO.1 | ||||
| 74411-25011 |
YH80 |
1 | ||
| 74415A - BRACKET, BATTERY, NO.2 | ||||
| 74412-25011 |
YH80 |
1 | ||
| 74415A - BRACKET, BATTERY, NO.2 | ||||
| 74412-25011 |
YH80 |
1 | ||
| 74415A - BRACKET, BATTERY, NO.2 | ||||
| 74412-25011 |
YH80 |
1 | ||
| 74417 - BRACKET, BATTERY CARRIER | ||||
| 74417-26050 |
YH8# |
1 | ||
| 74417 - BRACKET, BATTERY CARRIER | ||||
| 74417-26050 |
YH8# |
1 | ||
| 74421 - HANGER, BATTERY | ||||
| 74421-26010 |
YH80 |
1 | ||
| 74421-25020 |
YH80 COLD SPEC |
1 | ||
| 74421 - HANGER, BATTERY | ||||
| 74421-26010 |
YH80 |
1 | ||
| 74421-25020 |
YH80 COLD SPEC |
1 | ||
| 74421 - HANGER, BATTERY | ||||
| 74421-26010 |
YH80 |
1 | ||
| 74421-25020 |
YH80 COLD SPEC |
1 | ||
| 74421 - HANGER, BATTERY | ||||
| 74421-26010 |
YH80 |
1 | ||
| 74421-25020 |
YH80 COLD SPEC |
1 | ||
| 74451 - PLATE, BATTERY CARRIER SUPPORT | ||||
| 74451-25050 |
YH80 COLD SPEC |
2 | ||
| 74453A - BAR, BATTERY SET PLATE | ||||
| 74453-25090 |
YH80 COLD SPEC |
1 | ||
| 74453-25080 |
YH80 |
1 | ||
| 74453A - BAR, BATTERY SET PLATE | ||||
| 74453-25090 |
YH80 COLD SPEC |
1 | ||
| 74453-25080 |
YH80 |
1 | ||
| 74453A - BAR, BATTERY SET PLATE | ||||
| 74453-25090 |
YH80 COLD SPEC |
1 | ||
| 74453-25080 |
YH80 |
1 | ||
| 74453A - BAR, BATTERY SET PLATE | ||||
| 74453-25090 |
YH80 COLD SPEC |
1 | ||
| 74453-25080 |
YH80 |
1 | ||
| 74472 - PAD, BATTERY SIDE | ||||
| 74472-25010 |
YH80 |
2 | ||
| 74472-25020 |
YH80 COLD SPEC |
2 | ||
| 74472 - PAD, BATTERY SIDE | ||||
| 74472-25010 |
YH80 |
2 | ||
| 74472-25020 |
YH80 COLD SPEC |
2 | ||
| 74472 - PAD, BATTERY SIDE | ||||
| 74472-25010 |
YH80 |
2 | ||
| 74472-25020 |
YH80 COLD SPEC |
2 | ||
| Common parts | ||||
| 90179-06097 | ||||
| 90179-08017 | ||||
| 91611-60816 | ||||
| 91615-60825 | ||||
| 91615-61030 | ||||
| 91655-60825 | ||||
