YH80L-MDB (1985)

Toyota Dyna100

Production Aug 1985 - Aug 1987
Engine 1Y
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )1Y,2Y

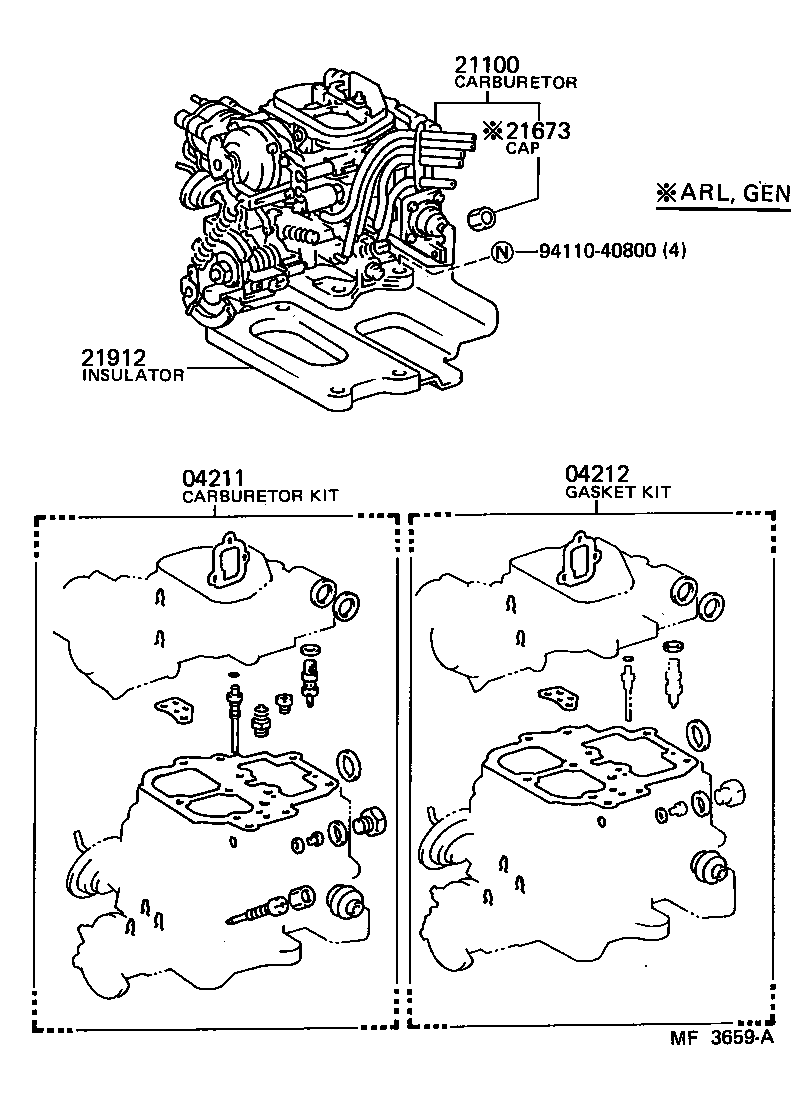

Click highlighted areas on diagram

diagram 04211 04212 21100 21673 21912 9411040800
Part # Description Qty Price
04211 - CARBURETOR KIT
04211-71070

1Y,2Y..YH8#..ARL,GEN

 1
04212 - GASKET KIT, CARBURETOR
04212-72010

1Y,2Y..YH8#

 1
21100 - CARBURETOR ASSY
21100-71120

1Y,2Y..YH8#..ARL,GEN

 1
21673 - CAP, IDLE LIMIT
21673-13280

1Y,2Y..YH8#..ARL,GEN

 1
21912 - INSULATOR, CARBURETOR HEAT
21912-72010

1Y,2Y..YH8#

 1
Common parts
94110-40800
