LH80R-PDBQ3 (1985)

Toyota Dyna100

Production Aug 1985 - Aug 1987
Engine 2L
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

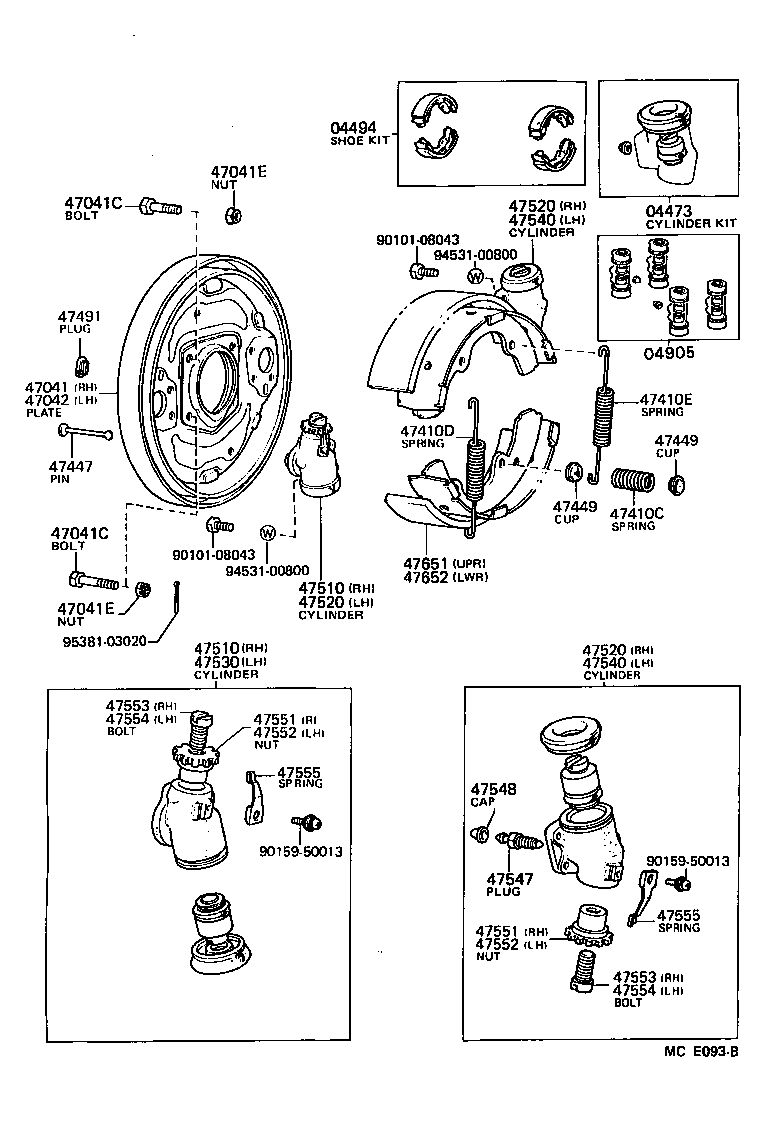

Click highlighted areas on diagram

diagram 04473 04494 04905 47041 47041C 47041C 47041E 47041E 47042 47410C 47410D 47410E 47447 47449 47449 47491 47510 47510 47520 47520 47520 47530 47540 47540 47547 47548 47551 47551 47552 47552 47553 47553 47554 47554 47555 47555 47651 47652 9010108043 9010108043 9015950013 9015950013 9453100800 9453100800 9538103020
Part # Description Qty Price
Common parts
90101-08043
90159-50013
94531-00800
95381-03020
