LH80R-PDBQ3 (1985)
Toyota Dyna100
Production
Aug 1985
-
Aug 1987
Engine
2L
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

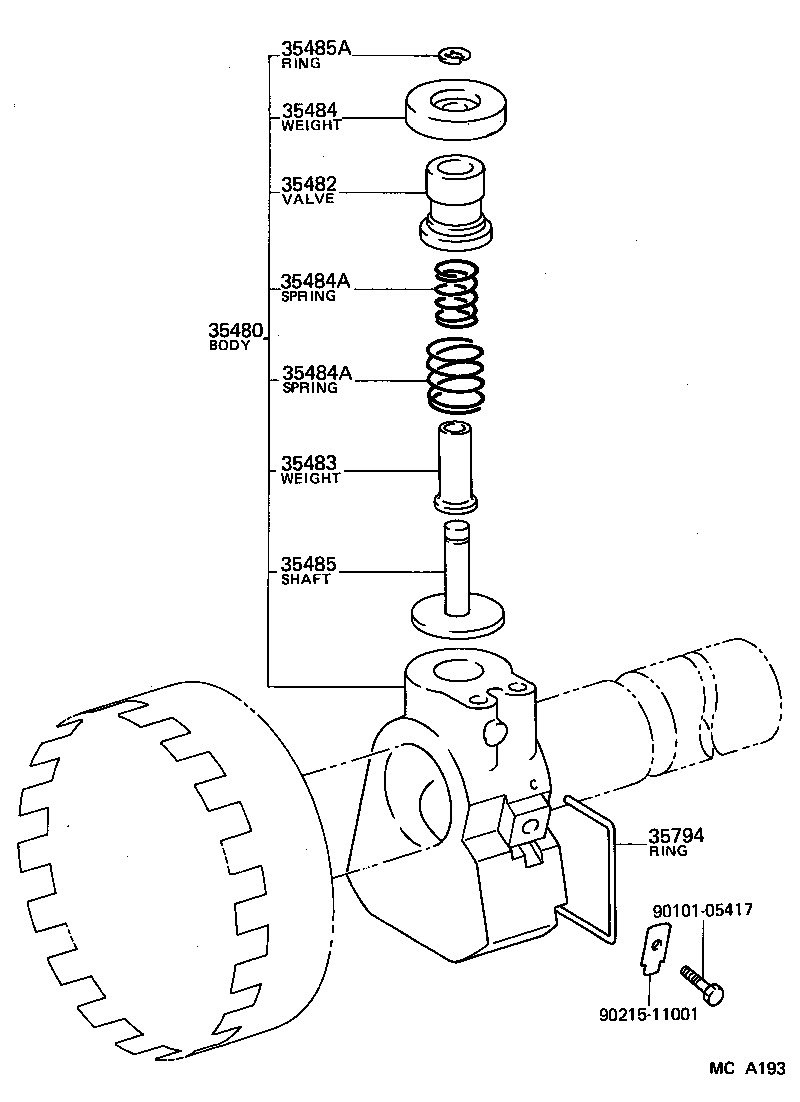

(8508- )4FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35480 - GOVERNOR | ||||
| 35480-26030 |
LH80..4FC |
1 | ||
| 35482 - VALVE, GOVERNOR | ||||
| 35482-28010 |
LH80..4FC |
1 | ||
| 35483 - WEIGHT, GOVERNOR, INNER | ||||
| 35483-14010 |
LH80..4FC |
1 | ||
| 35484 - WEIGHT, GOVERNOR, OUTER | ||||
| 35484-22010 |
LH80..4FC |
1 | ||
| 35484A - SPRING, COMPRESSION (FOR GOVERNOR WEIGHT) | ||||
| 90501-07033 |
LH80..4FC OUTER |
1 | ||
| 90501-08059 |
LH80..4FC INNER |
1 | ||
| 35484A - SPRING, COMPRESSION (FOR GOVERNOR WEIGHT) | ||||
| 90501-07033 |
LH80..4FC OUTER |
1 | ||
| 90501-08059 |
LH80..4FC INNER |
1 | ||
| 35485 - SHAFT, GOVERNOR VALVE | ||||
| 35485-14010 |
LH80..4FC |
1 | ||
| 35485A - RING, E (FOR GOVERNOR VALVE SHAFT) | ||||
| 90523-05020 |
LH80..4FC |
1 | ||
| 35794 - RING, GOVERNOR RETAINING | ||||
| 35794-22010 |
LH80..4FC |
1 | ||
| Common parts | ||||
| 90101-05417 | ||||
| 90215-11001 | ||||

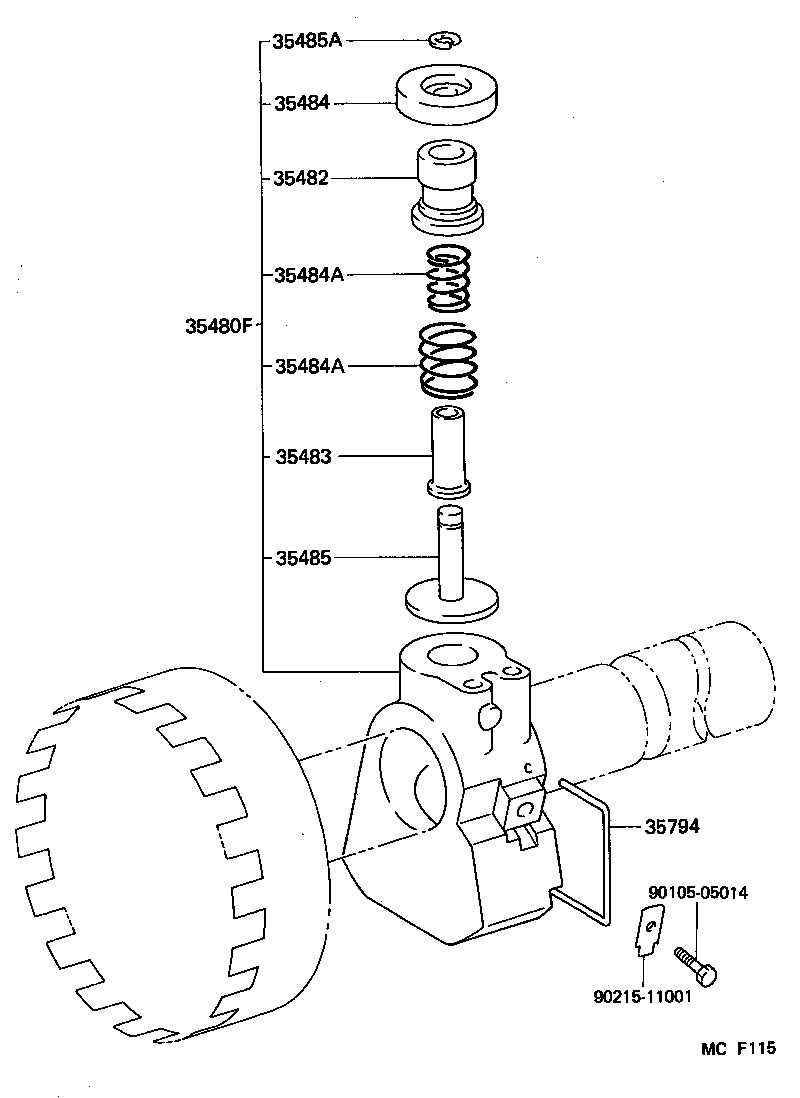

(8708-9203)4FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-05014 | ||||
| 90215-11001 | ||||
