LH80R-PDBQ3 (1987)
Toyota Dyna100

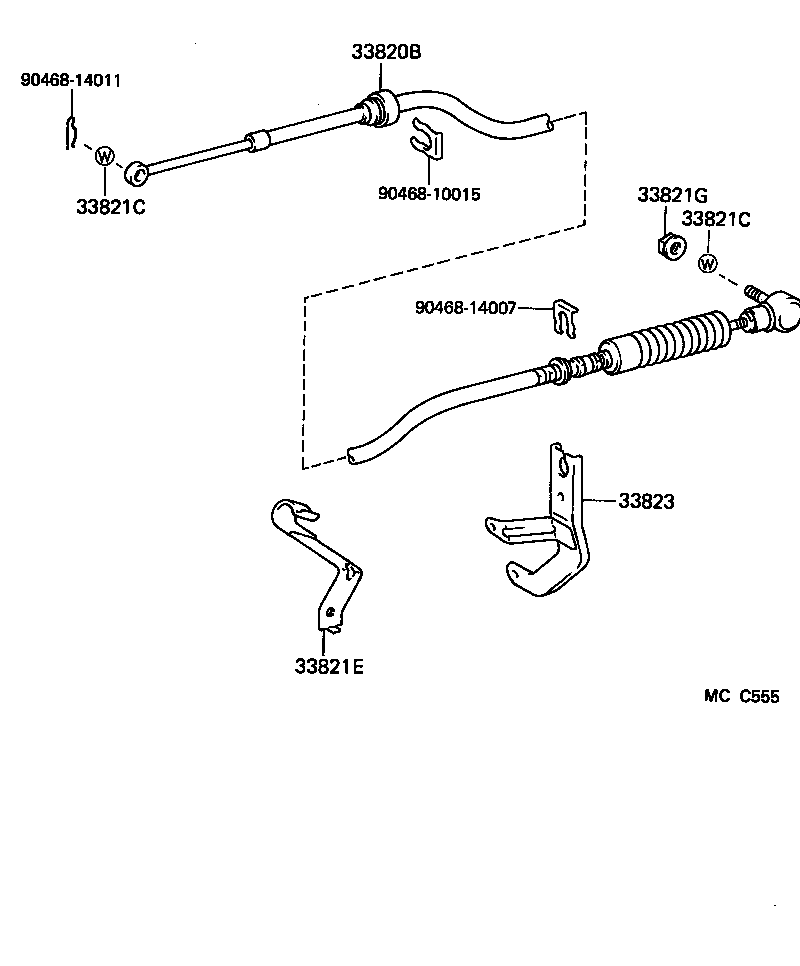

ILLUST NO. 2 OF 2(8708- )4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-26040 |
LH80..4FC |
1 | ||
| 33820-26010 |
LH80..4FC |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08050 |
LH80..4FC OD=18,ID=8 |
2 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08050 |
LH80..4FC OD=18,ID=8 |
2 | ||
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01403 |
LH80..4FC |
1 | ||
| 90949-01489 |
LH80..4FC |
1 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90179-08141 |
LH80..4FC |
1 | ||
| 90179-08146 |
LH80..4FC |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-26010 |
LH80..4FC |
1 | ||
| 33823-26030 |
LH80..4FC |
1 | ||
| Common parts | ||||
| 90468-10015 | ||||
| 90468-14007 | ||||
| 90468-14011 | ||||

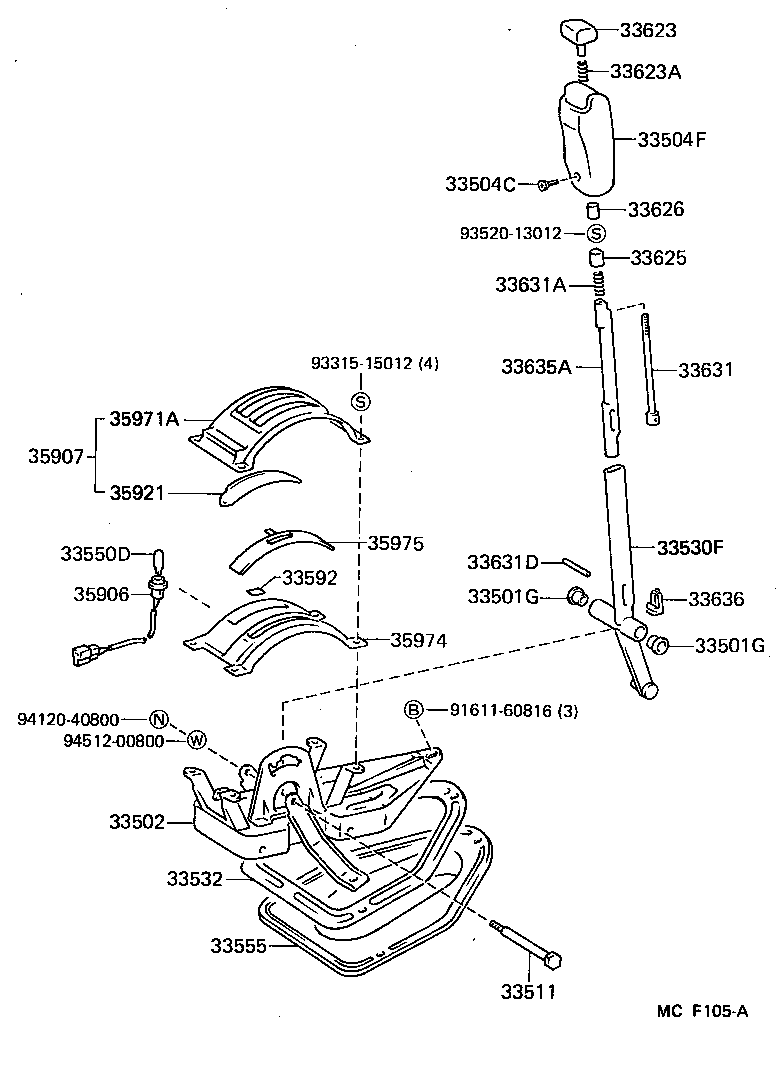

ILLUST NO. 1 OF 2(8708-8808)4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90385-11003 |
LH80..4FC |
2 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90385-11003 |
LH80..4FC |
2 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-26020 |
LH80..4FC |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40109 |
LH80..4FC |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-1701001 |
LH80..4FC BLACK,TRIM4# |
1 | ||
| 33504-36070B0 |
LH80..4FC GRAY,TRIM1# |
1 | ||
| 33504-3607006 |
LH80..4FC BROWN,TRIM4# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-22160 |
LH80..4FC |
1 | ||
| 33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT) | ||||
| 33501-26200 |
LH80..4FC |
1 | ||
| 33532 - PLATE, DUST BOOT | ||||
| 33532-26010 |
LH80..4FC |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11018 |
LH80..4FC 12V 1.2W W/O SOCKET |
2 | ||
| 90981-11036 |
LH80..4FC 12V 1.7W |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-26020 |
LH80..4FC |
1 | ||
| 33555-26010 |
LH80..4FC |
1 | ||
| 33592 - REFLECTOR, SHIFT POSITION LAMP | ||||
| 33592-26010 |
LH80..4FC |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-1701001 |
LH80..4FC BLACK,TRIM4# |
1 | ||
| 33623-3602006 |
LH80..4FC BROWN,TRIM4# |
1 | ||
| 33623-36020B0 |
LH80..4FC GRAY,TRIM1# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07037 |
LH80..4FC |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-17010 |
LH80..4FC |
1 | ||
| 33626 - STOPPER, SHIFT LEVER BUTTON | ||||
| 33626-17010 |
LH80..4FC |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-26020 |
LH80..4FC |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-08017 |
LH80..4FC |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04003 |
LH80..4FC |
1 | ||
| 33635A - GUIDE, WIRE, NO.1 (FOR SHIFT LEVER) | ||||
| 33635-26020 |
LH80..4FC |
1 | ||
| 33636 - GUIDE, WIRE, NO.2 (FOR SHIFT LEVER) | ||||
| 33636-35010 |
LH80..4FC |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-26020B0 |
LH80..4FC GRAY,TRIM1# |
1 | ||
| 35906-2602006 |
LH80..4FC DARK BROWN,TRIM4# |
1 | ||
| 35906-26010 |
LH80..4FC |
1 | ||
| 35907 - HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT) | ||||
| 35907-26060 |
LH80..4FC |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-26050 |
LH80..4FC |
1 | ||
| 35921-26060 |
LH80..4FC |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-22040 |
LH80..4FC |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-26010 |
LH80..4FC |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-26040 |
LH80..4FC |
1 | ||
| 35975-36020 |
LH80..4FC |
1 | ||
| Common parts | ||||
| 91611-60816 | ||||
| 93315-15012 | ||||
| 93520-13012 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||

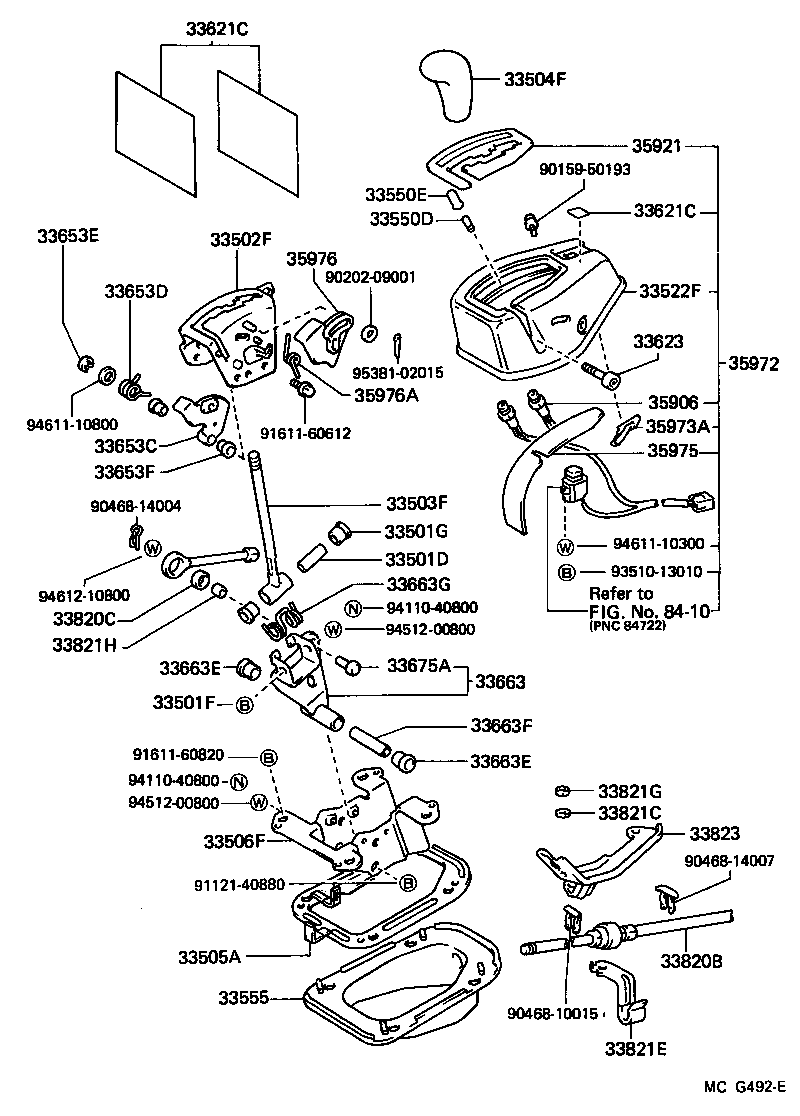

ILLUST NO. 1 OF 2(8808- )4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33501D - COLLAR (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90387-08089 |
LH80..4FC |
1 | ||
| 33501F - SHAFT SUB-ASSY, CONTROL (FOR FLOOR SHIFT) | ||||
| 91121-40855 |
LH80..4FC |
1 | ||
| 91121-40880 |
LH80..4FC *8-1.25PX80-22 |
1 | ||
| 91121-40855 |
LH80..4FC *8-1.25PX55-22 |
1 | ||
| 33501G - BUSH (FOR FLOOR SHIFT CONTROL SHAFT) | ||||
| 90385-11003 |
LH80..4FC |
2 | ||
| 33502F - HOUSING SUB-ASSY, SHIFT LEVER (FOR FLOOR SHIFT) | ||||
| 33502-26041 |
LH80..4FC |
1 | ||
| 33502-26040 |
LH80..4FC |
1 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-36110 |
LH80..4FC |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-1701001 |
LH80..4FC BLACK,TRIM4# |
1 | ||
| 33504-36070B0 |
LH80..4FC GRAY,TRIM1# |
1 | ||
| 33504-3607006 |
LH80..4FC BROWN,TRIM4# |
1 | ||
| 33505A - SEAL SUB-ASSY, CONTROL SHAFT DUST (FOR FLOOR SHIFT) | ||||
| 33505-26010 |
LH80..4FC |
1 | ||
| 33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT | ||||
| 33570-26011 |
LH80..4FC |
1 | ||
| 33570-26010 |
LH80..4FC |
1 | ||
| 33522F - SEAT, SHIFT LEVER PLATE (FOR FLOOR SHIFT) | ||||
| 33522-2601006 |
LH80..4FC BROWN,TRIM4# |
1 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11018 |
LH80..4FC 12V 1.2W W/O SOCKET |
2 | ||
| 90981-11036 |
LH80..4FC 12V 1.7W |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-04014 |
LH80..4FC |
2 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-26020 |
LH80..4FC |
1 | ||
| 33555-26010 |
LH80..4FC |
1 | ||
| 33621C - LABEL, CONTROL LEVER INFORMATION | ||||
| 33621-26040 |
LH80..4FC |
1 | ||
| 33621C - LABEL, CONTROL LEVER INFORMATION | ||||
| 33621-26040 |
LH80..4FC |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-1701001 |
LH80..4FC BLACK,TRIM4# |
1 | ||
| 33623-3602006 |
LH80..4FC BROWN,TRIM4# |
1 | ||
| 33623-36020B0 |
LH80..4FC GRAY,TRIM1# |
1 | ||
| 33653C - GUIDE, SHIFT LEVER WIRE | ||||
| 33653-36030 |
LH80..4FC |
1 | ||
| 33653D - SPRING, TORSION (FOR FLOOR SHIFT LEVER GUIDE) | ||||
| 90508-16113 |
LH80..4FC |
1 | ||
| 33653E - RING, E (FOR FLOOR SHIFT LEVER GUIDE) | ||||
| 96160-00500 |
LH80..4FC |
1 | ||
| 33653F - BUSH | ||||
| 90386-08014 |
LH80..4FC |
2 | ||
| 33663 - LEVER, CONTROL | ||||
| 33663-26012 |
LH80..4FC |
1 | ||
| 33663-26010 |
LH80..4FC |
1 | ||
| 33663-26011 |
LH80..4FC |
1 | ||
| 33663E - BUSH (FOR FLOOR SHIFT CONTROL LEVER) | ||||
| 90385-11006 |
LH80..4FC |
2 | ||
| 33663E - BUSH (FOR FLOOR SHIFT CONTROL LEVER) | ||||
| 90385-11006 |
LH80..4FC |
2 | ||
| 33663F - COLLAR (FOR FLOOR SHIFT CONTROL LEVER) | ||||
| 90387-08096 |
LH80..4FC |
1 | ||
| 33663G - SPRING, TORSION (FOR FLOOR SHIFT CONTROL LEVER) | ||||
| 90508-26076 |
LH80..4FC |
1 | ||
| 90508-25003 |
LH80..4FC |
1 | ||
| 33675A - PIN, W/HOLE (FOR TRANSMISSION CONTROL ROD) | ||||
| 90240-08033 |
LH80..4FC |
1 | ||
| 33820B - CABLE ASSY, TRANSMISSION CONTROL | ||||
| 33820-26040 |
LH80..4FC |
1 | ||
| 33820-26010 |
LH80..4FC |
1 | ||
| 33820C - BUSH (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90386-10025 |
LH80..4FC |
1 | ||
| 33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90201-08050 |
LH80..4FC OD=18,ID=8 |
2 | ||
| 33821E - CLAMP, NO.1 (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90949-01403 |
LH80..4FC |
1 | ||
| 90949-01489 |
LH80..4FC |
1 | ||
| 33821G - NUT (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90179-08141 |
LH80..4FC |
1 | ||
| 90179-08146 |
LH80..4FC |
1 | ||
| 33821H - COLLAR (FOR TRANSMISSION CONTROL CABLE) | ||||
| 90560-08366 |
LH80..4FC |
1 | ||
| 33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1 | ||||
| 33823-26010 |
LH80..4FC |
1 | ||
| 33823-26030 |
LH80..4FC |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-26020B0 |
LH80..4FC GRAY,TRIM1# |
1 | ||
| 35906-2602006 |
LH80..4FC DARK BROWN,TRIM4# |
1 | ||
| 35906-26010 |
LH80..4FC |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-26050 |
LH80..4FC |
1 | ||
| 35921-26060 |
LH80..4FC |
1 | ||
| 35972 - COVER, POSITION INDICATOR HOUSING | ||||
| 35902-26010B0 |
LH80..4FC GRAY,GRAY,TRIM1# |
1 | ||
| 35902-2601006 |
LH80..4FC BROWN,TRIM4# |
1 | ||
| 35973A - ATTACHMENT, POSITION INDICATOR HOUSING COVER | ||||
| 35973-36010 |
LH80..4FC |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-26040 |
LH80..4FC |
1 | ||
| 35975-36020 |
LH80..4FC |
1 | ||
| 35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR) | ||||
| 35976-3601006 |
LH80..4FC BROWN,TRIM4# |
1 | ||
| 35976-36010B0 |
LH80..4FC GRAY,TRIM1# |
1 | ||
| 35976A - SPRING, TORSION (FOR POSITION INDICATER SLIDE COVER) | ||||
| 90508-10045 |
LH80..4FC |
1 | ||
| Common parts | ||||
| 90159-50193 | ||||
| 90202-09001 | ||||
| 90468-10015 | ||||
| 90468-14004 | ||||
| 90468-14007 | ||||
| 91121-40880 | ||||
| 91611-60612 | ||||
| 91611-60820 | ||||
| 93510-13010 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
| 94611-10300 | ||||
| 94611-10800 | ||||
| 94612-10800 | ||||
| 95381-02015 | ||||
| Linked diagrams | ||||
| 8410 | ||||
