LH80R-PDBQ3 (1987)
Toyota Dyna100
(8708-8808)2L

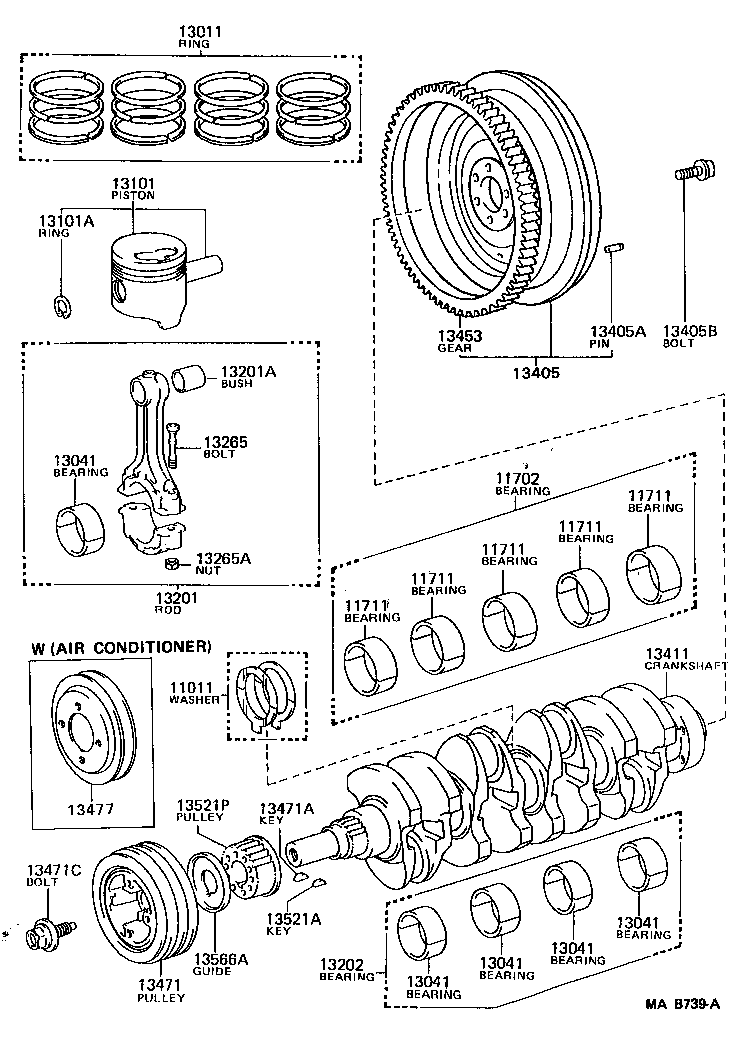

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-54010 |
2L..LH80 STD |
1 | ||
| 11012-54010 |
2L..LH80 O/S 0.125 |
1 | ||
| 11013-54010 |
2L..LH80 O/S 0.250 |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-54060 |
2L..LH80 U/S 0.25 |
1 | ||
| 11705-54060 |
2L..LH80 U/S 0.50 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5406001 |
2L..LH80 MARK 1 |
5 | ||
| 11701-5406002 |
2L..LH80 MARK 2 |
5 | ||
| 11701-5406003 |
2L..LH80 MARK 3 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5406001 |
2L..LH80 MARK 1 |
5 | ||
| 11701-5406002 |
2L..LH80 MARK 2 |
5 | ||
| 11701-5406003 |
2L..LH80 MARK 3 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5406001 |
2L..LH80 MARK 1 |
5 | ||
| 11701-5406002 |
2L..LH80 MARK 2 |
5 | ||
| 11701-5406003 |
2L..LH80 MARK 3 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5406001 |
2L..LH80 MARK 1 |
5 | ||
| 11701-5406002 |
2L..LH80 MARK 2 |
5 | ||
| 11701-5406003 |
2L..LH80 MARK 3 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5406001 |
2L..LH80 MARK 1 |
5 | ||
| 11701-5406002 |
2L..LH80 MARK 2 |
5 | ||
| 11701-5406003 |
2L..LH80 MARK 3 |
5 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-54061 |
2L..LH80 STD |
1 | ||
| 13011-54062 |
2L..LH80 STD |
1 | ||
| 13015-54062 |
2L..LH80 O/S 1.00 |
1 | ||
| 13013-54061 |
2L..LH80 O/S 0.50 |
1 | ||
| 13014-54062 |
2L..LH80 O/S 0.75 |
1 | ||
| 13013-54062 |
2L..LH80 O/S 0.50 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5401302 |
2L..LH80 MARK 2 |
4 | ||
| 13041-5401301 |
2L..LH80 MARK 1 |
4 | ||
| 13041-54024 |
2L..LH80 |
4 | ||
| 13041-5401303 |
2L..LH80 MARK 3 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5401302 |
2L..LH80 MARK 2 |
4 | ||
| 13041-5401301 |
2L..LH80 MARK 1 |
4 | ||
| 13041-54024 |
2L..LH80 |
4 | ||
| 13041-5401303 |
2L..LH80 MARK 3 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5401302 |
2L..LH80 MARK 2 |
4 | ||
| 13041-5401301 |
2L..LH80 MARK 1 |
4 | ||
| 13041-54024 |
2L..LH80 |
4 | ||
| 13041-5401303 |
2L..LH80 MARK 3 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5401302 |
2L..LH80 MARK 2 |
4 | ||
| 13041-5401301 |
2L..LH80 MARK 1 |
4 | ||
| 13041-54024 |
2L..LH80 |
4 | ||
| 13041-5401303 |
2L..LH80 MARK 3 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5401302 |
2L..LH80 MARK 2 |
4 | ||
| 13041-5401301 |
2L..LH80 MARK 1 |
4 | ||
| 13041-54024 |
2L..LH80 |
4 | ||
| 13041-5401303 |
2L..LH80 MARK 3 |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-5406001 |
2L..LH80 STD,MARK 1 |
4 | ||
| 13105-54060 |
2L..LH80 O/S 1.00 |
4 | ||
| 13103-54060 |
2L..LH80 O/S 0.50 |
4 | ||
| 13104-54060 |
2L..LH80 O/S 0.75 |
4 | ||
| 13101-54060 |
2L..LH80 STD |
4 | ||
| 13101-5406003 |
2L..LH80 STD,MARK 3 |
4 | ||
| 13101-5406002 |
2L..LH80 STD,MARK 2 |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-29003 |
2L..LH80 |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-59017 |
2L..LH80 |
4 | ||
| 13201-59016 |
2L..LH80 |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73083 |
2L..LH80 |
4 | ||
| 90999-73117 |
2L..LH80 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13205-54013 |
2L..LH80 U/S 0.50 |
1 | ||
| 13204-54013 |
2L..LH80 U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-54011 |
2L..LH80 |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-10005 |
2L..LH80 |
8 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-54031 |
2L..LH80 |
1 | ||
| 13401-54030 |
2L..LH80 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13408-54020 |
2L..LH80 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 95161-20622 |
2L..LH80 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-14005 |
2L..LH80 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 95161-20622 |
2L..LH80 |
1 | ||
| 13521P - PULLEY, CRANKSHAFT TIMING | ||||
| 13521-54020 |
2L..LH80 |
1 | ||
| 13566A - GUIDE, TIMING BELT | ||||
| 13566-54010 |
2L..LH80 |
1 | ||
(8808- )2L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-54010 |
2L..LH80 STD |
1 | ||
| 11012-54010 |
2L..LH80 O/S 0.125 |
1 | ||
| 11013-54010 |
2L..LH80 O/S 0.250 |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-54060 |
2L..LH80 U/S 0.25 |
1 | ||
| 11705-54060 |
2L..LH80 U/S 0.50 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5406001 |
2L..LH80 MARK 1 |
5 | ||
| 11701-5406002 |
2L..LH80 MARK 2 |
5 | ||
| 11701-5406003 |
2L..LH80 MARK 3 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5406001 |
2L..LH80 MARK 1 |
5 | ||
| 11701-5406002 |
2L..LH80 MARK 2 |
5 | ||
| 11701-5406003 |
2L..LH80 MARK 3 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5406001 |
2L..LH80 MARK 1 |
5 | ||
| 11701-5406002 |
2L..LH80 MARK 2 |
5 | ||
| 11701-5406003 |
2L..LH80 MARK 3 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5406001 |
2L..LH80 MARK 1 |
5 | ||
| 11701-5406002 |
2L..LH80 MARK 2 |
5 | ||
| 11701-5406003 |
2L..LH80 MARK 3 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5406001 |
2L..LH80 MARK 1 |
5 | ||
| 11701-5406002 |
2L..LH80 MARK 2 |
5 | ||
| 11701-5406003 |
2L..LH80 MARK 3 |
5 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-54061 |
2L..LH80 STD |
1 | ||
| 13011-54062 |
2L..LH80 STD |
1 | ||
| 13015-54062 |
2L..LH80 O/S 1.00 |
1 | ||
| 13013-54061 |
2L..LH80 O/S 0.50 |
1 | ||
| 13014-54062 |
2L..LH80 O/S 0.75 |
1 | ||
| 13013-54062 |
2L..LH80 O/S 0.50 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5401302 |
2L..LH80 MARK 2 |
4 | ||
| 13041-5401301 |
2L..LH80 MARK 1 |
4 | ||
| 13041-54024 |
2L..LH80 |
4 | ||
| 13041-5401303 |
2L..LH80 MARK 3 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5401302 |
2L..LH80 MARK 2 |
4 | ||
| 13041-5401301 |
2L..LH80 MARK 1 |
4 | ||
| 13041-54024 |
2L..LH80 |
4 | ||
| 13041-5401303 |
2L..LH80 MARK 3 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5401302 |
2L..LH80 MARK 2 |
4 | ||
| 13041-5401301 |
2L..LH80 MARK 1 |
4 | ||
| 13041-54024 |
2L..LH80 |
4 | ||
| 13041-5401303 |
2L..LH80 MARK 3 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5401302 |
2L..LH80 MARK 2 |
4 | ||
| 13041-5401301 |
2L..LH80 MARK 1 |
4 | ||
| 13041-54024 |
2L..LH80 |
4 | ||
| 13041-5401303 |
2L..LH80 MARK 3 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5401302 |
2L..LH80 MARK 2 |
4 | ||
| 13041-5401301 |
2L..LH80 MARK 1 |
4 | ||
| 13041-54024 |
2L..LH80 |
4 | ||
| 13041-5401303 |
2L..LH80 MARK 3 |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-5406001 |
2L..LH80 STD,MARK 1 |
4 | ||
| 13105-54060 |
2L..LH80 O/S 1.00 |
4 | ||
| 13103-54060 |
2L..LH80 O/S 0.50 |
4 | ||
| 13104-54060 |
2L..LH80 O/S 0.75 |
4 | ||
| 13101-54060 |
2L..LH80 STD |
4 | ||
| 13101-5406003 |
2L..LH80 STD,MARK 3 |
4 | ||
| 13101-5406002 |
2L..LH80 STD,MARK 2 |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-29003 |
2L..LH80 |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-59017 |
2L..LH80 |
4 | ||
| 13201-59016 |
2L..LH80 |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73083 |
2L..LH80 |
4 | ||
| 90999-73117 |
2L..LH80 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13205-54013 |
2L..LH80 U/S 0.50 |
1 | ||
| 13204-54013 |
2L..LH80 U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-54011 |
2L..LH80 |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90170-10005 |
2L..LH80 |
8 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-54031 |
2L..LH80 |
1 | ||
| 13401-54030 |
2L..LH80 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13408-54020 |
2L..LH80 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 95161-20622 |
2L..LH80 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-14005 |
2L..LH80 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 95161-20622 |
2L..LH80 |
1 | ||
| 13521P - PULLEY, CRANKSHAFT TIMING | ||||
| 13521-54020 |
2L..LH80 |
1 | ||
| 13566A - GUIDE, TIMING BELT | ||||
| 13566-54010 |
2L..LH80 |
1 | ||
