LH80R-PDBQ3 (1987)
Toyota Dyna100
Production
Aug 1987
-
Mar 1992
Engine
2L
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

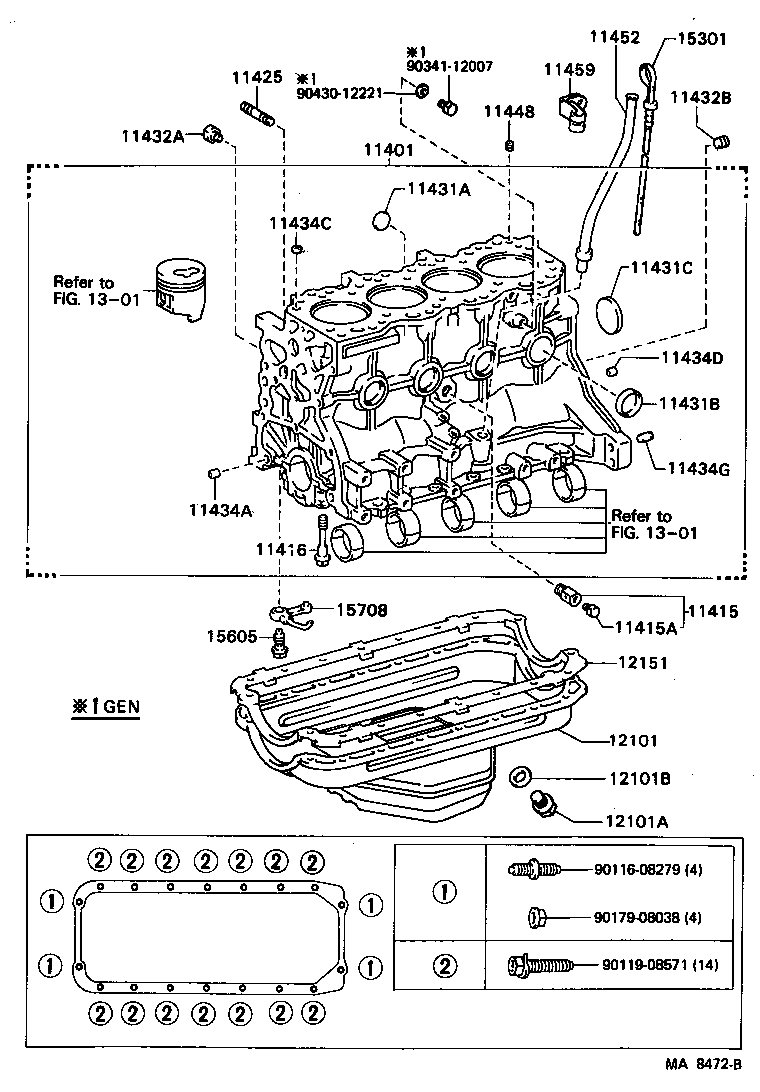

(8708-8808)2L
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-59247 |
2L..LH80 |
1 | ||
| 11401-59345 |
2L..LH80 |
1 | ||
| 11401-59246 |
2L..LH80 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 96431-53828 |
2L..LH80 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90345-53030 |
2L..LH80 |
1 | ||
| 96432-23814 |
2L..LH80 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02061 |
2L..LH80 |
10 | ||
| 11425 - BOLT, STUD(FOR OIL FILTER) | ||||
| 90116-08157 |
2L..LH80 |
2 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-42500 |
2L..LH80 |
2 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
2L..LH80 |
4 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
2L..LH80 |
1 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-51006 |
2L..LH80 |
1 | ||
| 11432B - PLUG, W/HEAD TAPER SCREW, NO.2 | ||||
| 90344-53002 |
2L..LH80 |
1 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90253-11001 |
2L..LH80 L=11,OD=11 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90253-15005 |
2L..LH80 L=7,OD=14.5 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90253-11001 |
2L..LH80 L=11,OD=11 |
2 | ||
| 11434G - PIN, STRAIGHT(FOR END PLATE) | ||||
| 90250-10192 |
2L..LH80 |
2 | ||
| 11448 - ORIFICE, CYLINDER BLOCK OIL | ||||
| 11448-54020 |
2L..LH80 |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-54060 |
2L..LH80 |
1 | ||
| 11459 - SUPPORT, OIL LEVEL GAGE GUIDE | ||||
| 90929-01126 |
2L..LH80 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-54220 |
2L..LH80 |
1 | ||
| 12101-54032 |
2L..LH80 |
1 | ||
| 12101-54140 |
2L..LH80 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-18089 |
2L..LH80 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-18026 |
2L..LH80 |
1 | ||
| 90430-18013 |
2L..LH80 |
1 | ||
| 90430-12027 |
2L..LH80 |
1 | ||
| 12151 - GASKET, OIL PAN | ||||
| 12151-54020 |
2L..LH80 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-54050 |
2L..LH80 |
1 | ||
| 15605 - VALVE SUB-ASSY, OIL CHECK | ||||
| 15605-54010 |
2L..LH80 |
4 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-54010 |
2L..LH80 |
4 | ||
| 15708-54030 |
2L..LH80 |
4 | ||
| Common parts | ||||
| 90116-08279 | ||||
| 90119-08571 | ||||
| 90179-08038 | ||||
| 90341-12007 | ||||
| 90430-12221 | ||||
| Linked diagrams | ||||
| 1301 | ||||

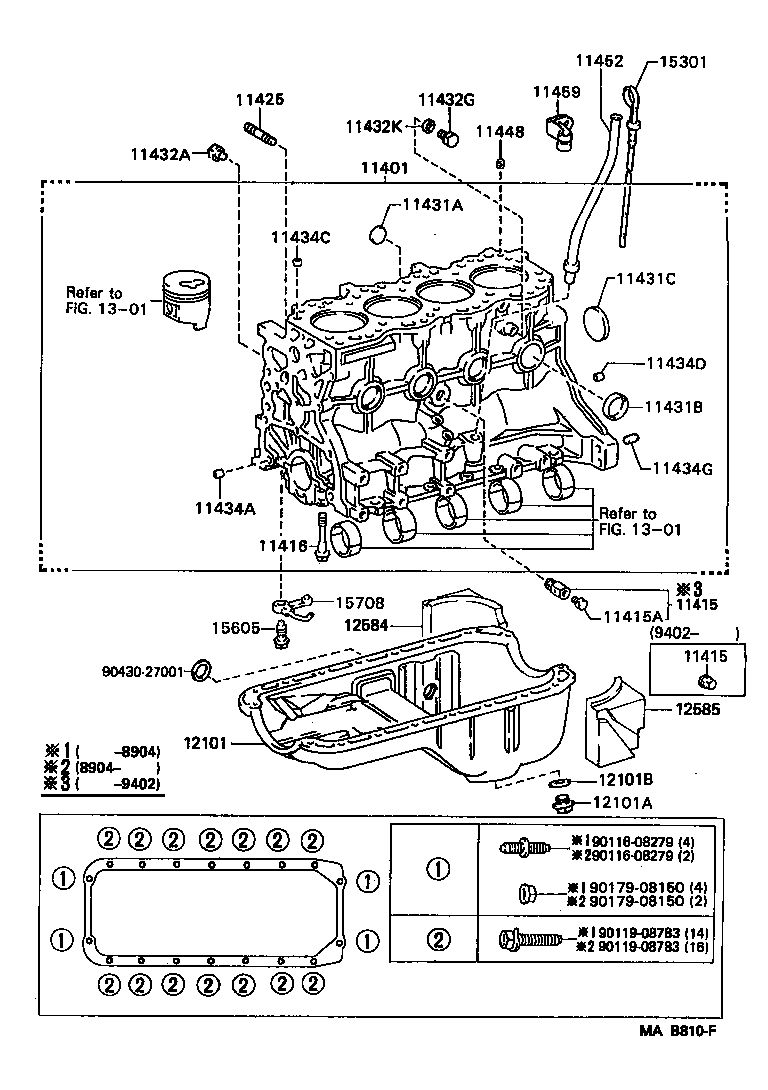

(8808- )2L
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-59247 |
2L..LH80 |
1 | ||
| 11401-59345 |
2L..LH80 |
1 | ||
| 11401-59246 |
2L..LH80 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 96431-53828 |
2L..LH80 |
1 | ||
| 11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK) | ||||
| 96431-53828 |
2L..LH80 |
1 | ||
| 11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK) | ||||
| 90345-53030 |
2L..LH80 |
1 | ||
| 96432-23814 |
2L..LH80 |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02061 |
2L..LH80 |
10 | ||
| 11425 - BOLT, STUD(FOR OIL FILTER) | ||||
| 90116-08157 |
2L..LH80 |
2 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-42500 |
2L..LH80 |
2 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-43500 |
2L..LH80 |
4 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-45000 |
2L..LH80 |
1 | ||
| 11432A - PLUG, W/HEAD TAPER SCREW, NO.1 | ||||
| 90345-51006 |
2L..LH80 |
1 | ||
| 11432G - PLUG, W/HEAD STRAIGHT SCREW, NO.5 | ||||
| 90341-12007 |
2L..LH80..RHD |
1 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90253-11001 |
2L..LH80 L=11,OD=11 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| 90253-15005 |
2L..LH80 L=7,OD=14.5 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90253-11001 |
2L..LH80 L=11,OD=11 |
2 | ||
| 11434G - PIN, STRAIGHT(FOR END PLATE) | ||||
| 90250-10192 |
2L..LH80 |
2 | ||
| 11448 - ORIFICE, CYLINDER BLOCK OIL | ||||
| 11448-54020 |
2L..LH80 |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-54060 |
2L..LH80 |
1 | ||
| 11459 - SUPPORT, OIL LEVEL GAGE GUIDE | ||||
| 90929-01126 |
2L..LH80 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-54220 |
2L..LH80 |
1 | ||
| 12101-54032 |
2L..LH80 |
1 | ||
| 12101-54140 |
2L..LH80 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-18089 |
2L..LH80 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-18026 |
2L..LH80 |
1 | ||
| 90430-18013 |
2L..LH80 |
1 | ||
| 90430-12027 |
2L..LH80 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-54050 |
2L..LH80 |
1 | ||
| 15605 - VALVE SUB-ASSY, OIL CHECK | ||||
| 15605-54010 |
2L..LH80 |
4 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-54010 |
2L..LH80 |
4 | ||
| 15708-54030 |
2L..LH80 |
4 | ||
| Common parts | ||||
| 90116-08279 | ||||
| 90119-08783 | ||||
| 90179-08150 | ||||
| 90430-27001 | ||||
| Linked diagrams | ||||
| 1301 | ||||
