LH80R-MDBQ3 (1985)

Toyota Dyna100

Production Aug 1985 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

Click highlighted areas on diagram

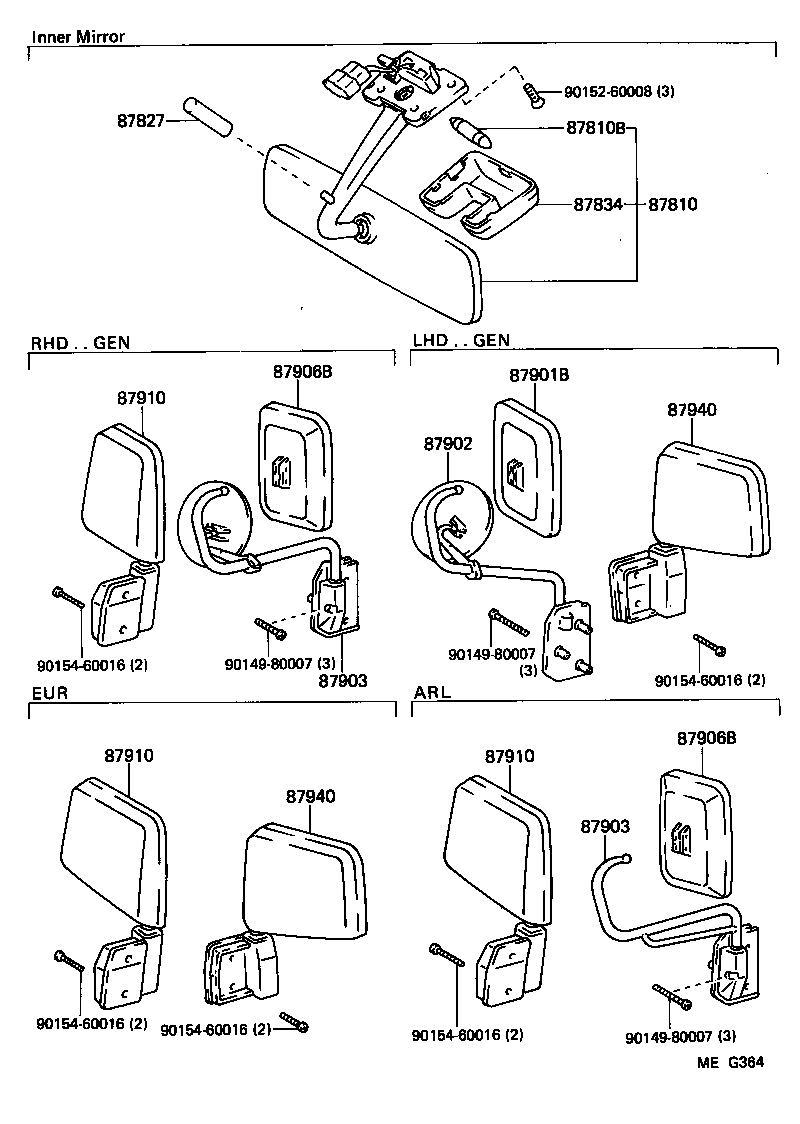

diagram 87810 87810B 87827 87834 87901B 87902 87903 87903 87906B 87906B 87910 87910 87910 87940 87940 9014980007 9014980007 9014980007 9015260008 9015460016 9015460016 9015460016 9015460016 9015460016
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-95418

LH80,YH8#..ARL,GEN

 1
87810B - BULB, INNER REAR VIEW MIRROR LAMP
90981-11027

LH80,YH8#

12V 10W,12V 10W

 1
87827 - ABSORBER, INNER REAR VIEW MIRROR
87828-30010

LH80,YH8#

L=43.5

 1
87828-23010

LH80,YH8#

L=38.5

 1
87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER
81243-95701

LH80,YH8#

 1
Common parts
90149-80007
90152-60008
90154-60016

(8604- )

Click highlighted areas on diagram

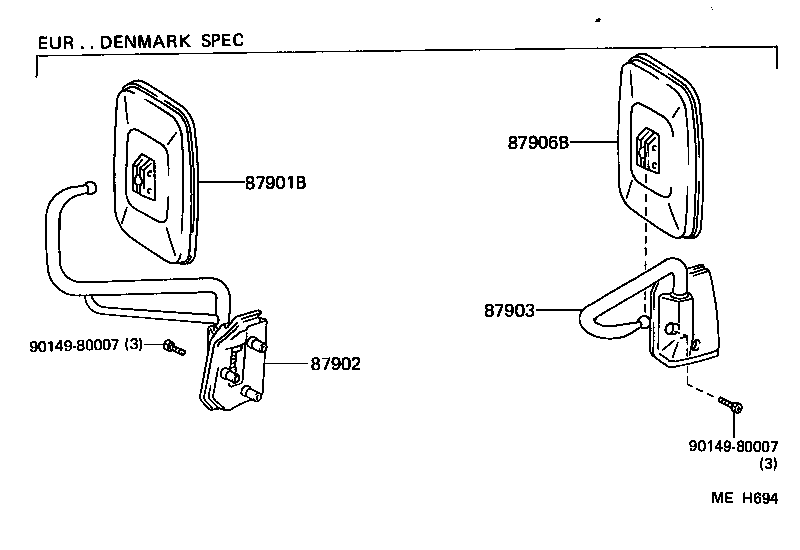

diagram 87901B 87902 87903 87906B 9014980007 9014980007
Part # Description Qty Price
Common parts
90149-80007
