LH80R-MDB (1985)
Toyota Dyna100
(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

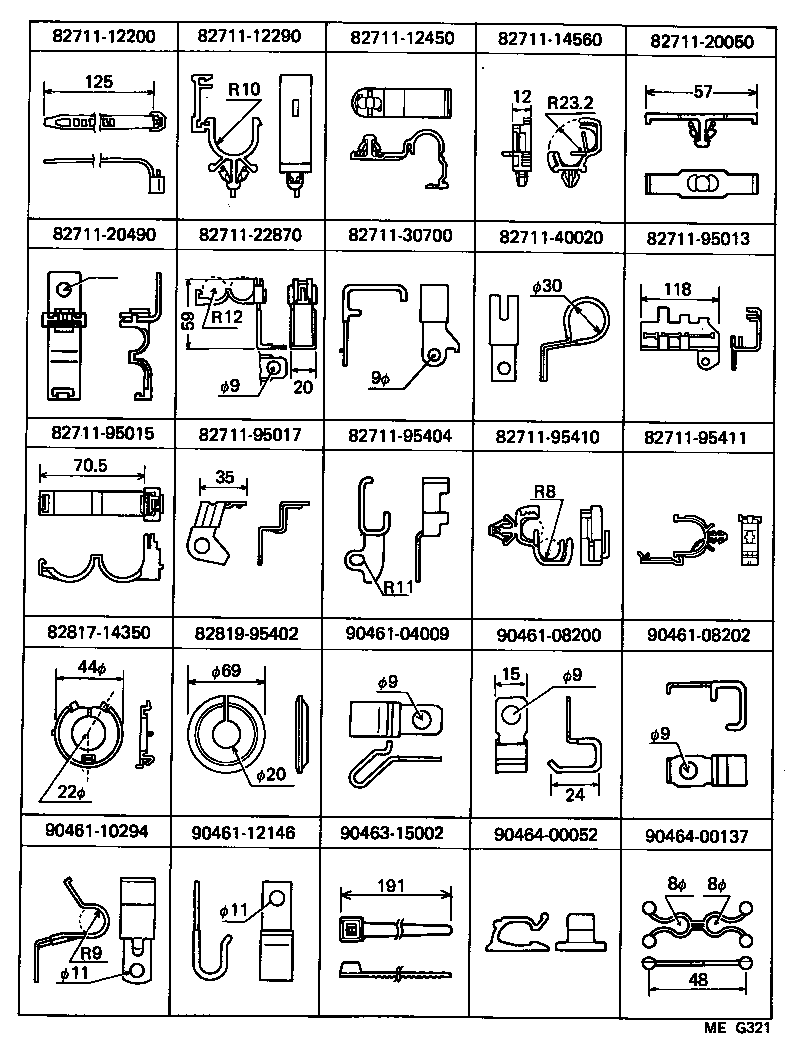

| Common parts | ||||
| 82711-12200 | ||||
| 82711-12290 | ||||
| 82711-12450 | ||||
| 82711-14560 | ||||
| 82711-20050 | ||||
| 82711-20490 | ||||
| 82711-22870 | ||||
| 82711-30700 | ||||
| 82711-40020 | ||||
| 82711-95013 | ||||
| 82711-95015 | ||||
| 82711-95017 | ||||
| 82711-95404 | ||||
| 82711-95410 | ||||
| 82711-95411 | ||||
| 82817-14350 | ||||
| 82819-95402 | ||||
| 90461-04009 | ||||
| 90461-08200 | ||||
| 90461-08202 | ||||
| 90461-10294 | ||||
| 90461-12146 | ||||
| 90463-15002 | ||||
| 90464-00052 | ||||
| 90464-00137 | ||||
(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

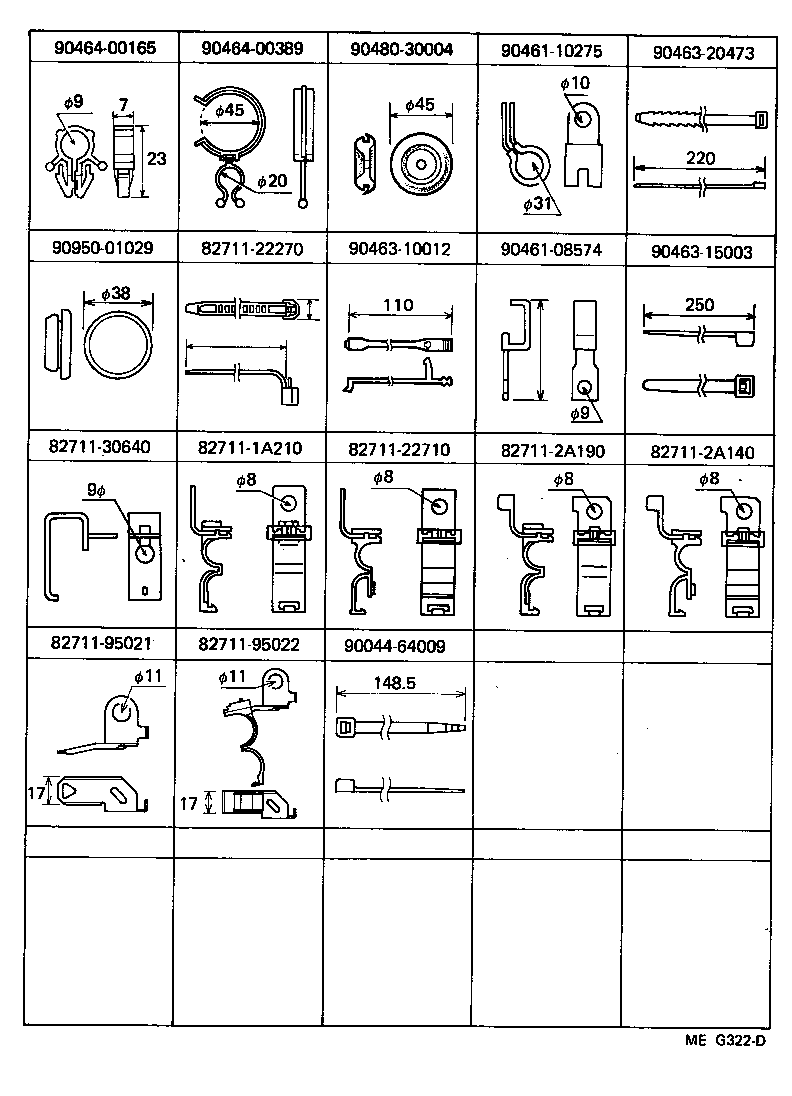

| Common parts | ||||
| 82711-1A210 | ||||
| 82711-22270 | ||||
| 82711-22710 | ||||
| 82711-2A140 | ||||
| 82711-2A190 | ||||
| 82711-30640 | ||||
| 82711-95021 | ||||
| 82711-95022 | ||||
| 90044-64009 | ||||
| 90461-08574 | ||||
| 90461-10275 | ||||
| 90463-10012 | ||||
| 90463-15003 | ||||
| 90463-20473 | ||||
| 90464-00165 | ||||
| 90464-00389 | ||||
| 90480-30004 | ||||
| 90950-01029 | ||||
(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

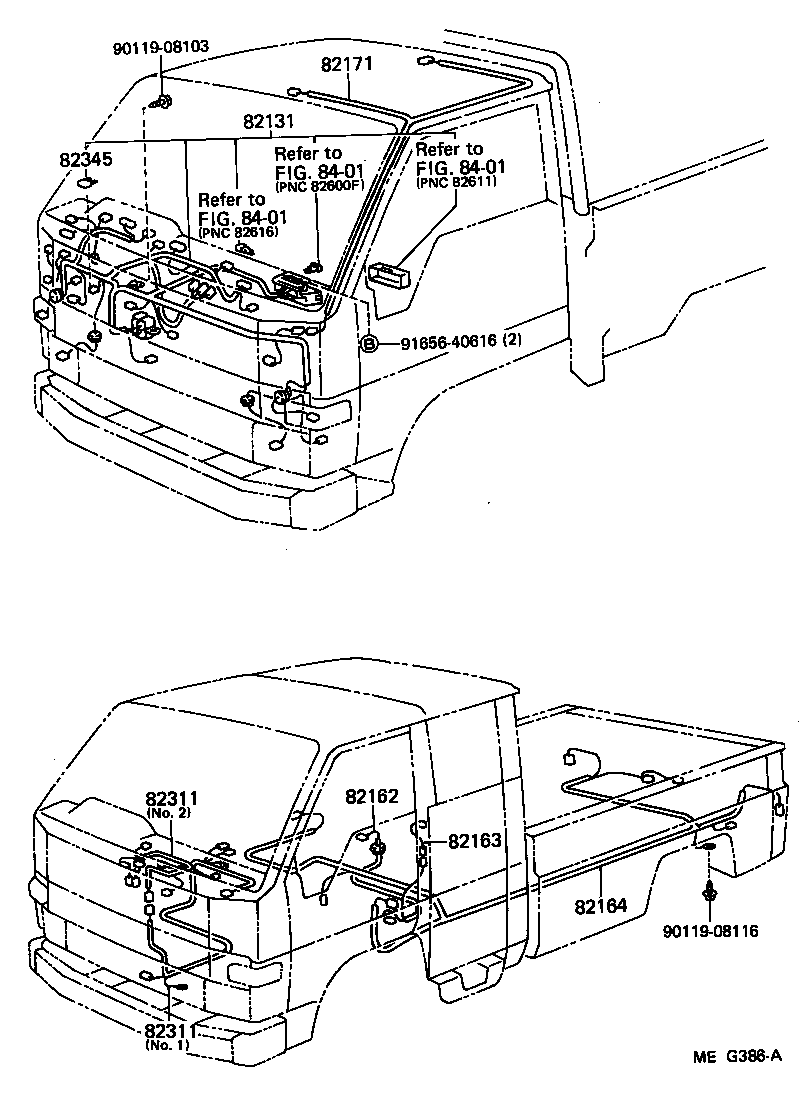

| 82131 - WIRE, COWL | ||||
| 82131-95A07 |
LH80..RHD..GEN ALTERNATOR=12V 45A |
1 | ||
| 82131-95A28 |
LH80..RHD..GEN ALTERNATOR=12V 45A |
1 | ||
| 82131-95A32 |
LH80..T3..GEN..CBU ALTERNATOR=12V 40A |
1 | ||
| 82131-95A52 |
LH80..T3..GEN..CBU ALTERNATOR=12V 40A |
1 | ||
| 82131-95A19 |
LH80..T3..GEN..CBU ALTERNATOR=12V 40A |
1 | ||
| 82131-95A42 |
LH80..RHD..GEN ALTERNATOR=12V 45A |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-95A19 |
LH80..GEN |
1 | ||
| 82164-95A04 |
LH80..GEN |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-95400 |
LH80,YH8#..T3 |
1 | ||
| 82311 - HARNESS ASSY, COOLER | ||||
| 88648-95410 |
LH80..RHD NO.2 |
1 | ||
| 88648-95A14 |
LH80..ARL,GEN NO.1 |
1 | ||
| 82311 - HARNESS ASSY, COOLER | ||||
| 88648-95410 |
LH80..RHD NO.2 |
1 | ||
| 88648-95A14 |
LH80..ARL,GEN NO.1 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
LH80 |
1 | ||
| Common parts | ||||
| 90119-08103 | ||||
| 90119-08116 | ||||
| 91656-40616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

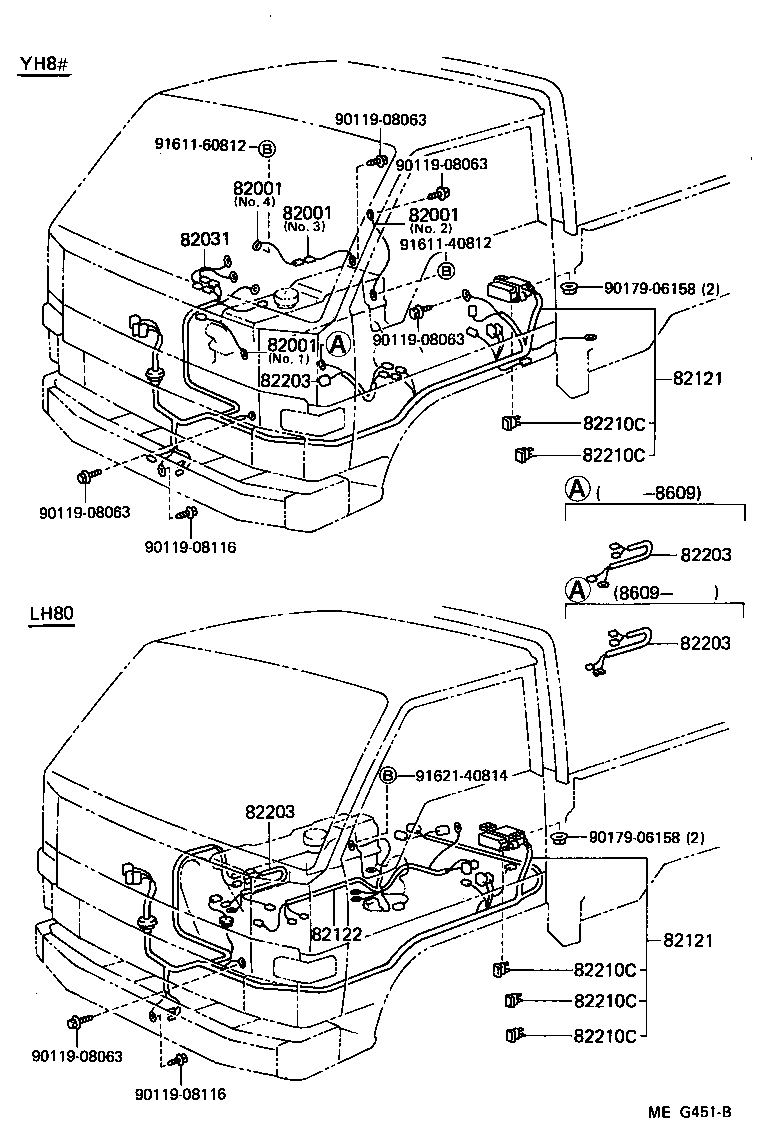

| 82121 - WIRE, ENGINE | ||||
| 82121-95A04 |
LH80..RHD..GEN ALTERNATOR=12V 45A |
1 | ||
| 82121-95A13 |
LH80..T3..GEN..CBU ALTERNATOR=12V 40A |
1 | ||
| 82121-95A19 |
LH80..RHD..GEN ALTERNATOR=12V 45A |
1 | ||
| 82121-95A28 |
LH80..T3..GEN..CBU ALTERNATOR=12V 40A |
1 | ||
| 82121-95A27 |
LH80..RHD..GEN ALTERNATOR=12V 45A |
1 | ||
| 82121-95A22 |
LH80..T3..GEN..CBU ALTERNATOR=12V 40A |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-95A04 |
LH80..RHD..GEN ALTERNATOR=12V 45A |
1 | ||
| 82121-95A13 |
LH80..T3..GEN..CBU ALTERNATOR=12V 40A |
1 | ||
| 82121-95A19 |
LH80..RHD..GEN ALTERNATOR=12V 45A |
1 | ||
| 82121-95A28 |
LH80..T3..GEN..CBU ALTERNATOR=12V 40A |
1 | ||
| 82121-95A27 |
LH80..RHD..GEN ALTERNATOR=12V 45A |
1 | ||
| 82121-95A22 |
LH80..T3..GEN..CBU ALTERNATOR=12V 40A |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82060-95013 |
LH80..GEN ALTERNATOR=12V 45A,W/*TAC,W/PS |
1 | ||
| 82060-95011 |
LH80..T3..GEN..CBU ALTERNATOR=12V 40A,W/*TAC,W/PS |
1 | ||
| 82060-95012 |
LH80..GEN ALTERNATOR=12V 45A |
1 | ||
| 82060-95014 |
LH80..T3..GEN..CBU ALTERNATOR=12V 40A |
1 | ||
| 82060-95010 |
LH80..T3..GEN..CBU ALTERNATOR=12V 40A |
1 | ||
| 82060-95015 |
LH80..T3..GEN..CBU ALTERNATOR=12V 40A,W/*TAC,W/PS |
1 | ||
| 82060-95016 |
LH80..GEN ALTERNATOR=12V 45A |
1 | ||
| 82203 - WIRE SUB-ASSY, ALTERNATOR | ||||
| 82203-95012 |
LH80 |
1 | ||
| 82203 - WIRE SUB-ASSY, ALTERNATOR | ||||
| 82203-95012 |
LH80 |
1 | ||
| 82203 - WIRE SUB-ASSY, ALTERNATOR | ||||
| 82203-95012 |
LH80 |
1 | ||
| 82203 - WIRE SUB-ASSY, ALTERNATOR | ||||
| 82203-95012 |
LH80 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08202 |
LH80,YH8#..ARL,GEN 60A,TERM.:MALE,YEL,60A |
1 | ||
| 90982-08228 |
LH80 50A,TERM.:MALE,RED,50A |
1 | ||
| 90982-08189 |
LH80,YH8# 40A,TERM.:FEMALE,GRN,40A |
1 | ||
| 90982-08202 |
LH80,YH80..GEN 60A,TERM.:MALE,YEL,60A |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08202 |
LH80,YH8#..ARL,GEN 60A,TERM.:MALE,YEL,60A |
1 | ||
| 90982-08228 |
LH80 50A,TERM.:MALE,RED,50A |
1 | ||
| 90982-08189 |
LH80,YH8# 40A,TERM.:FEMALE,GRN,40A |
1 | ||
| 90982-08202 |
LH80,YH80..GEN 60A,TERM.:MALE,YEL,60A |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08202 |
LH80,YH8#..ARL,GEN 60A,TERM.:MALE,YEL,60A |
1 | ||
| 90982-08228 |
LH80 50A,TERM.:MALE,RED,50A |
1 | ||
| 90982-08189 |
LH80,YH8# 40A,TERM.:FEMALE,GRN,40A |
1 | ||
| 90982-08202 |
LH80,YH80..GEN 60A,TERM.:MALE,YEL,60A |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08202 |
LH80,YH8#..ARL,GEN 60A,TERM.:MALE,YEL,60A |
1 | ||
| 90982-08228 |
LH80 50A,TERM.:MALE,RED,50A |
1 | ||
| 90982-08189 |
LH80,YH8# 40A,TERM.:FEMALE,GRN,40A |
1 | ||
| 90982-08202 |
LH80,YH80..GEN 60A,TERM.:MALE,YEL,60A |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08202 |
LH80,YH8#..ARL,GEN 60A,TERM.:MALE,YEL,60A |
1 | ||
| 90982-08228 |
LH80 50A,TERM.:MALE,RED,50A |
1 | ||
| 90982-08189 |
LH80,YH8# 40A,TERM.:FEMALE,GRN,40A |
1 | ||
| 90982-08202 |
LH80,YH80..GEN 60A,TERM.:MALE,YEL,60A |
1 | ||
| Common parts | ||||
| 90119-08063 | ||||
| 90119-08116 | ||||
| 90179-06158 | ||||
| 91611-40812 | ||||
| 91611-60812 | ||||
| 91621-40814 | ||||
