LH80R-MDB (1985)

Toyota Dyna100

Production Aug 1985 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )T3

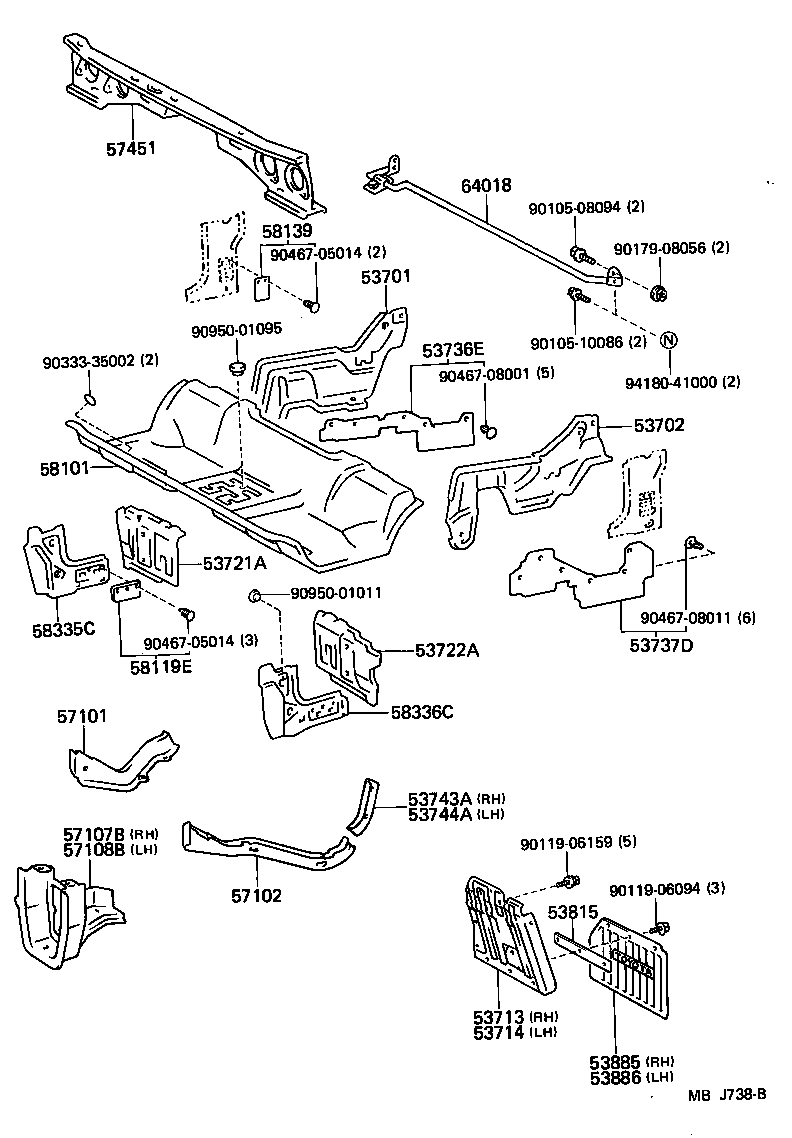

Click highlighted areas on diagram

diagram 53701 53702 53713 53714 53721A 53722A 53736E 53737D 53743A 53744A 53815 53885 53886 57101 57102 57107B 57108B 57451 58101 58119E 58139 58335C 58336C 64018 9010508094 9010510086 9011906094 9011906159 9017908056 9033335002 9046705014 9046705014 9046708001 9046708011 9095001011 9095001095 9418041000
Part # Description Qty Price
53701 - APRON SUB-ASSY, FRONT FENDER, RH
53707-95012

LH80

 1
53702 - APRON SUB-ASSY, FRONT FENDER, LH
53708-95011

LH80,YH8#

 1
53713 - APRON, FENDER SIDE, RH
53715-95A01

LH80,YH8#..T3

 1
53714 - APRON, FENDER SIDE, LH
53716-95A02

LH80,YH8#..T3

 1
53721A - APRON, FRONT FENDER, NO.2 RH
53721-95402

LH80,YH8#

 1
53722A - APRON, FRONT FENDER, NO.2 LH
53722-95403

LH80,YH8#

 1
53736E - SEAL, FRONT FENDER APRON, RH
53736-95A01

LH80,YH8#

 1
53737D - SEAL, FRONT FENDER APRON, LH
53737-95A03

LH80,YH8#

 1
53743A - REINFORCEMENT, FRONT FENDER APRON, FRONT RH
53743-95A02

LH80,YH8#

 1
53744A - REINFORCEMENT, FRONT FENDER APRON, FRONT LH
53744-95A00

LH80,YH8#

 1
53815 - PLATE, MUDGUARD RUBBER SET, FRONT
53887-95010

LH80,YH8#..T3

 2
53885 - MUDGUARD, FRONT RH
53881-95A03

LH80,YH8#..T3

 1
53886 - MUDGUARD, FRONT LH
53881-95A03

LH80,YH8#..T3

 1
57101 - MEMBER SUB-ASSY, FRONT SIDE, RH
57011-95A87

LH80,YH8#

 1
57102 - MEMBER SUB-ASSY, FRONT SIDE, LH
57168-95A00

LH80,YH8#

 1
57107B - BRACKET SUB-ASSY, CAB FRONT MOUNTING, RH
57107-95A08

LH80,YH8#

 1
57108B - BRACKET SUB-ASSY, CAB FRONT MOUNTING, LH
57108-95A01

LH80,YH8#

 1
57451 - MEMBER, FRONT FLOOR CROSS
57408-95A01

LH80,YH8#..RHD

 1
58101 - PAN SUB-ASSY, FRONT FLOOR
58101-95A43

LH80,YH8#..RHD..5F

 1
58119E - COVER, FRONT FLOOR SIDE, FRONT
58119-95400

LH80,YH8#

 2
58139 - COVER, FRONT FLOOR SIDE, REAR
58139-95400

LH80,YH8#..T3

LH

 1
58139-95401

LH80,YH8#..T3

RH

 1
58335C - PLATE, FLOOR SIDE, FRONT RH
58335-95401

LH80,YH8#

 1
58336C - PLATE, FLOOR SIDE, FRONT LH
58336-95401

LH80,YH8#

 1
64018 - BAR SUB-ASSY, BODY
64018-95A02

LH80..T3..GEN..CBU

IRELAND SPEC

 1
Common parts
90105-08094
90105-10086
90119-06094
90119-06159
90179-08056
90333-35002
90467-05014
90467-08001
90467-08011
90950-01011
90950-01095
94180-41000

(8508- )

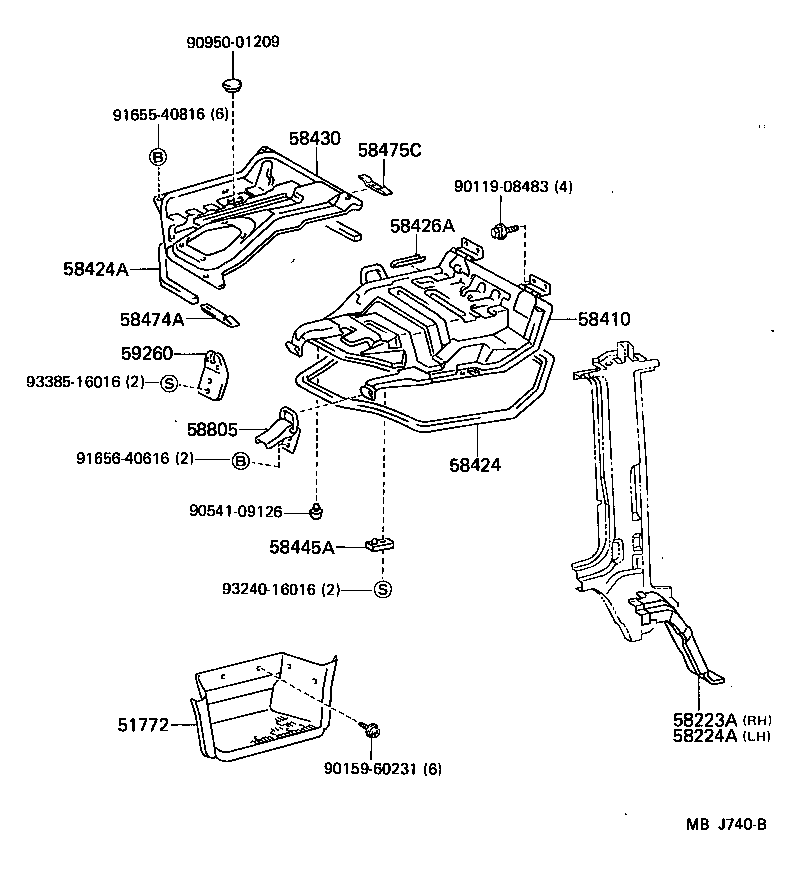

Click highlighted areas on diagram

diagram 51772 58223A 58224A 58410 58424 58424A 58426A 58430 58445A 58474A 58475C 58805 59260 9011908483 9015960231 9054109126 9095001209 9165540816 9165640616 9324016016 9338516016
Part # Description Qty Price
51772 - PLATE, STEP
51771-95406

LH80,YH8#

RH

 1
51772-95406

LH80,YH8#

LH

 1
58410 - COVER, ENGINE SERVICE HOLE
59208-9540303

LH80,YH80..RHD..GEN

GRAY,GRAY

 1
59208-95A0003

LH80..T3..GEN..CBU

IRELAND SPEC,GRAY,GRAY

 1
58424 - PACKING, ENGINE SERVICE HOLE COVER, NO.1
58424-95405

LH80,YH8#

 1
58424A - PACKING, ENGINE SERVICE HOLE COVER SUB, NO.1
58444-95402

LH80,YH8#

 1
58430 - COVER ASSY, SUB-FLOOR SERVICE HOLE
58407-95A10

LH80,YH8#..RHD..5F

 1
58407-95A15

LH80..T3..GEN..CBU

IRELAND SPEC

 1
58445A - CUSHION, ENGINE SERVICE HOLE COVER
58445-95400

LH80,YH8#

 2
58474A - PACKING, ENGINE SUB COVER, NO.2
58474-95401

LH80,YH8#

 1
58475C - PACKING, ENGIN SUB COVER, NO.3
58475-95A01

LH80,YH8#

 1
58805 - CATCH SUB-ASSY, ENGINE SERVICE HOLE COVER
71901-9570403

LH80,YH8#..EUR,GEN

GRAY,SHADOW GRAY

 2
Common parts
90119-08483
90159-60231
90541-09126
90950-01209
91655-40816
91656-40616
93240-16016
93385-16016
