LH80R-MDB (1985)
Toyota Dyna100

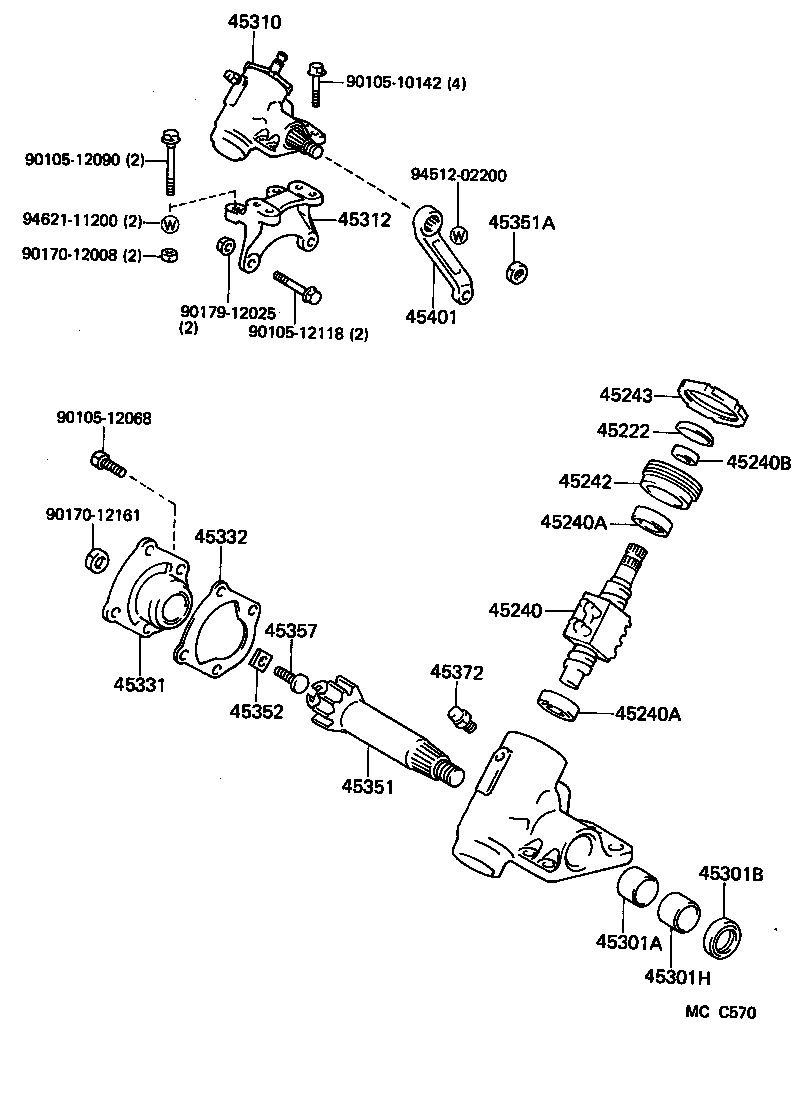

(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45222 - COVER, STEERING GEAR DUST | ||||
| 45222-26010 |
LH80,YH8# |
1 | ||
| 45240 - WORM ASSY, STEERING | ||||
| 45240-60040 |
LH80,YH8#..RHD |
1 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90363-20024 |
LH80,YH8# |
2 | ||
| 45240A - BEARING(FOR STEERING WORM) | ||||
| 90363-20024 |
LH80,YH8# |
2 | ||
| 45240B - SEAL, OIL(FOR STEERING WORM) | ||||
| 90311-18001 |
LH80,YH8# |
1 | ||
| 90311-18010 |
LH80,YH8# |
1 | ||
| 45242 - SCREW, WORM BEARING ADJUSTING | ||||
| 45242-25010 |
LH80,YH8# |
1 | ||
| 45243 - NUT, WORM BEARING ADJUSTING SCREW LOCK | ||||
| 45243-60020 |
LH80,YH8# |
1 | ||
| 45301A - BUSH OR BEARING, SECTOR SHAFT, NO.1 | ||||
| 90999-73061 |
LH80,YH8# |
1 | ||
| 45301B - SEAL, OIL(FOR SECTOR SHAFT) | ||||
| 90310-32005 |
LH80,YH8# |
1 | ||
| 90310-32024 |
LH80,YH8# |
1 | ||
| 45301H - BUSH OR BEARING, SECTOR SHAFT, NO.2 | ||||
| 90999-73061 |
LH80,YH8# |
1 | ||
| 45310 - HOUSING ASSY, STEERING GEAR | ||||
| 45310-25070 |
LH80,YH8#..RHD |
1 | ||
| 45312 - BRACKET, STEERING GEAR HOUSING | ||||
| 45312-26070 |
LH80,YH8#..RHD |
1 | ||
| 45331 - COVER, SECTOR SHAFT END | ||||
| 45304-25020 |
LH80,YH8# |
1 | ||
| 45332 - GASKET, SECTOR SHAFT END COVER | ||||
| 45332-26010 |
LH80,YH8# |
1 | ||
| 45351 - SHAFT, STEERING SECTOR | ||||
| 45351-25020 |
LH80,YH8# |
1 | ||
| 45351A - NUT, HEXAGON(FOR SECTOR SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-22058 |
LH80,YH8# |
1 | ||
| 45352 - WASHER, SECTOR SHAFT THRUST | ||||
| 45354-37010 |
LH80,YH8# T=2.05,T=2.05 |
1 | ||
| 45353-37010 |
LH80,YH8# T=2.00,T=2.00 |
1 | ||
| 45352-37010 |
LH80,YH8# T=1.95,T=1.95 |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-36010 |
LH80,YH8# |
1 | ||
| 45372 - PLUG, STEERING GEAR HOUSING OIL | ||||
| 90930-03058 |
LH80,YH8# |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45411-26090 |
LH80,YH8#..RHD |
1 | ||
| Common parts | ||||
| 90105-10142 | ||||
| 90105-12068 | ||||
| 90105-12090 | ||||
| 90105-12118 | ||||
| 90170-12008 | ||||
| 90170-12161 | ||||
| 90179-12025 | ||||
| 94512-02200 | ||||
| 94621-11200 | ||||

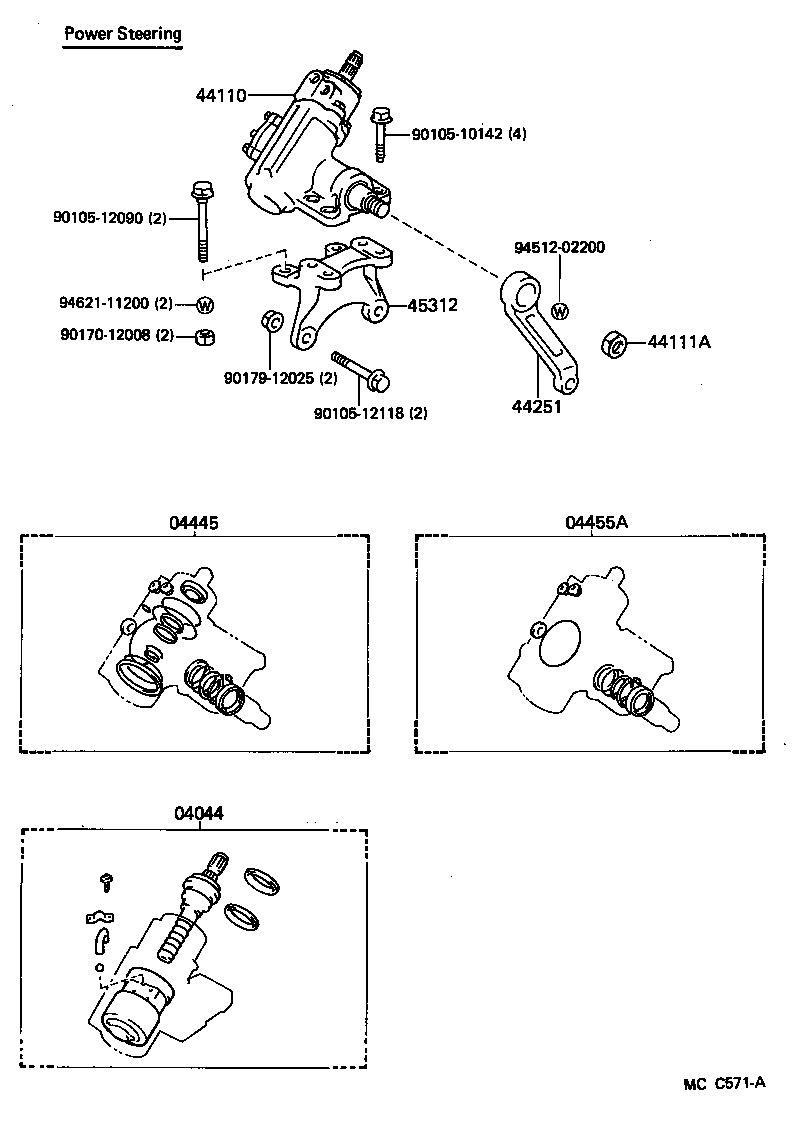

(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04044 - WARM KIT, POWER STEERING | ||||
| 04044-26040 |
LH80..RHD |
1 | ||
| 04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL) | ||||
| 04445-25030 |
LH80 |
1 | ||
| 04455A - GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE | ||||
| 04455-35010 |
LH80 |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-26040 |
LH80..RHD |
1 | ||
| 44111A - NUT, HEXAGON(FOR CROSS SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-22058 |
LH80 |
1 | ||
| 44251 - ARM, PITMAN | ||||
| 45411-26100 |
LH80..RHD |
1 | ||
| 45312 - BRACKET, STEERING GEAR HOUSING | ||||
| 45312-26070 |
LH80,YH8#..RHD |
1 | ||
| Common parts | ||||
| 90105-10142 | ||||
| 90105-12090 | ||||
| 90105-12118 | ||||
| 90170-12008 | ||||
| 90179-12025 | ||||
| 94512-02200 | ||||
| 94621-11200 | ||||
(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44101D - WASHER, PLATE(FOR STEERING WORM) | ||||
| 90201-30003 |
LH80 |
1 | ||
| 44101H - BEARING, THRUST NEEDLE ROLLER(FOR STEERING WORM) | ||||
| 90374-30003 |
LH80 |
1 | ||
| 44101J - RING(FOR STEERING WORM) | ||||
| 90562-48001 |
LH80 |
2 | ||
| 44101J - RING(FOR STEERING WORM) | ||||
| 90562-48001 |
LH80 |
2 | ||
| 44105 - HOUSING SUB-ASSY, VALVE | ||||
| 44105-30050 |
LH80..RHD |
1 | ||
| 44105A - RING, O(FOR VALVE HOUSING) | ||||
| 90301-32002 |
LH80 |
1 | ||
| 44105B - RING(FOR VALVE HOUSING) | ||||
| 90562-30002 |
LH80 |
1 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06006 |
LH80 |
2 | ||
| 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR | ||||
| 44107-60020 |
LH80..RHD |
1 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-32001 |
LH80 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-33007 |
LH80 ID=33.7,OD=43.1,OD=43.1,T=4.7 |
1 | ||
| 90301-65145 |
LH80 ID=65.0,OD=70.0,OD=70,T=2.5 |
1 | ||
| 96711-19010 |
LH80 ID=9.8,OD=13.6,OD=13.6,T=1.9 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-33007 |
LH80 ID=33.7,OD=43.1,OD=43.1,T=4.7 |
1 | ||
| 90301-65145 |
LH80 ID=65.0,OD=70.0,OD=70,T=2.5 |
1 | ||
| 96711-19010 |
LH80 ID=9.8,OD=13.6,OD=13.6,T=1.9 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 90301-33007 |
LH80 ID=33.7,OD=43.1,OD=43.1,T=4.7 |
1 | ||
| 90301-65145 |
LH80 ID=65.0,OD=70.0,OD=70,T=2.5 |
1 | ||
| 96711-19010 |
LH80 ID=9.8,OD=13.6,OD=13.6,T=1.9 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-31003 |
LH80 ID=31.7,OD=34.1,T=5,OD=34.1,T=5 |
1 | ||
| 90562-32001 |
LH80 ID=32,OD=42,OD=42,T=3 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-31003 |
LH80 ID=31.7,OD=34.1,T=5,OD=34.1,T=5 |
1 | ||
| 90562-32001 |
LH80 ID=32,OD=42,OD=42,T=3 |
1 | ||
| 44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING) | ||||
| 90521-46125 |
LH80 |
1 | ||
| 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) | ||||
| 90312-32001 |
LH80 |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-60010 |
LH80 |
1 | ||
| 44108A - RING, O(FOR SIDE COVER) | ||||
| 90301-64002 |
LH80 |
1 | ||
| 44111 - SHAFT, CROSS | ||||
| 44111-60010 |
LH80 |
1 | ||
| 44114A - RING(FOR POWER PISTON NUT) | ||||
| 90562-67001 |
LH80 |
1 | ||
| 44114B - RING, O(FOR POWER PISTON NUT) | ||||
| 90301-63001 |
LH80 |
1 | ||
| 44114C - BALL(FOR POWER PISTON NUT) | ||||
| 90360-06021 |
LH80 |
44 | ||
| 44115 - GUIDE, BALL | ||||
| 44115-60020 |
LH80..RHD |
2 | ||
| 44116 - CLAMP, BALL GUIDE | ||||
| 44116-60020 |
LH80..RHD |
1 | ||
| 44141 - PLUG, ADJUSTER | ||||
| 44104-22011 |
LH80 |
1 | ||
| 44141A - RING, O(FOR ADJUSTER PLUG) | ||||
| 90301-51001 |
LH80 |
1 | ||
| 44141B - SEAL, OIL(FOR ADJUSTER PLUG) | ||||
| 90311-19002 |
LH80 |
1 | ||
| 44141C - BEARING(FOR ADJUSTER PLUG) | ||||
| 90369-22001 |
LH80 |
1 | ||
| 44142 - NUT, LOCK | ||||
| 44142-22010 |
LH80 |
1 | ||
| 44142A - NUT, LOCK, NO.1 | ||||
| 44142-22020 |
LH80 |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44120-26040 |
LH80..RHD |
1 | ||
| 44257 - SCREW, CROSS SHAFT ADJUSTING | ||||
| 45357-60010 |
LH80 |
1 | ||
| 44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW) | ||||
| 90210-10001 |
LH80 |
1 | ||
| Common parts | ||||
| 90119-10070 | ||||
| 90159-50010 | ||||
| 90170-10208 | ||||

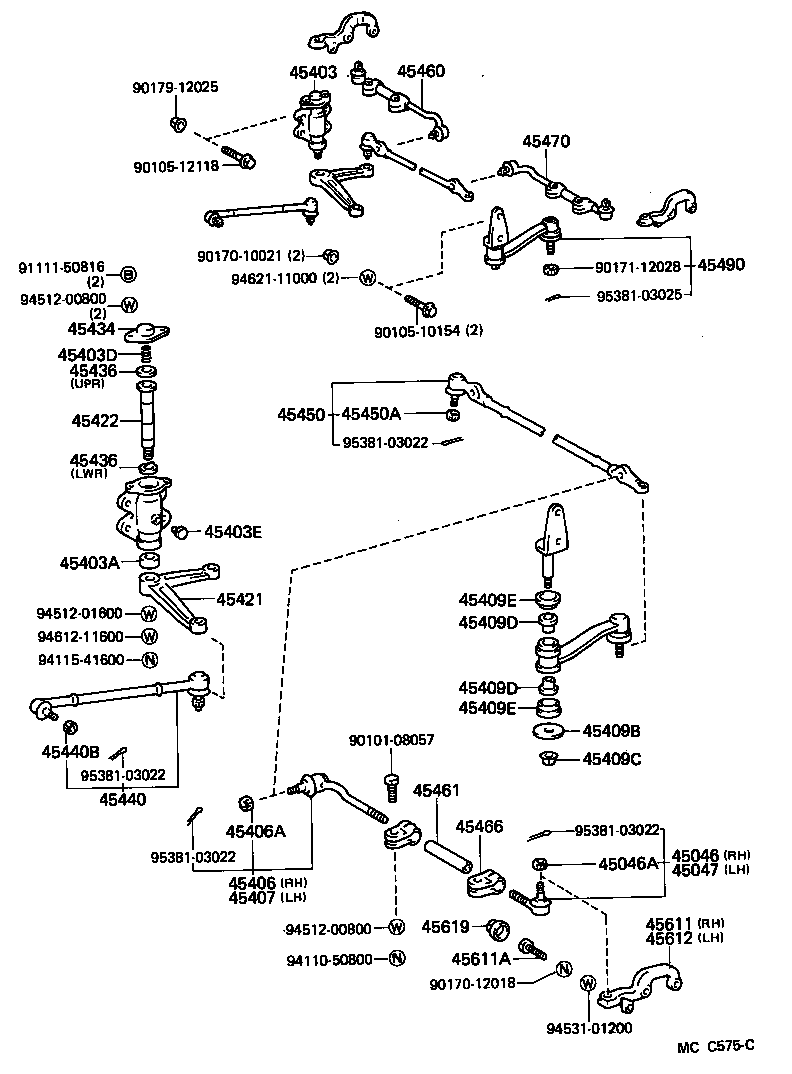

(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-29125 |
LH80,YH8# |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14042 |
LH80,YH8# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-29125 |
LH80,YH8# |
1 | ||
| 45403 - BRACKET SUB-ASSY, CENTER ARM | ||||
| 45403-26060 |
LH80,YH8#..RHD |
1 | ||
| 45403A - SEAL, OIL(FOR CENTER ARM BRACKET) | ||||
| 90311-25004 |
LH80,YH8# |
1 | ||
| 45403D - SPRING, COMPRESSION(FOR CENTER ARM SHAFT SET) | ||||
| 90501-30369 |
LH80,YH8# |
1 | ||
| 45403E - PLUG, W/HEAD TAPER SCREW(FOR CENTER ARM SHAFT) | ||||
| 90345-06014 |
LH80,YH8# |
1 | ||
| 45406 - ROD SUB-ASSY, TIE, RH | ||||
| 45406-29145 |
LH80,YH8# |
1 | ||
| 45406A - NUT, CASTLE(FOR TIE ROD) | ||||
| 90171-14042 |
LH80,YH8# |
2 | ||
| 45407 - ROD SUB-ASSY, TIE, LH | ||||
| 45406-29145 |
LH80,YH8# |
1 | ||
| 45409B - WASHER, PLATE(FOR IDLER ARM RUBBER BUSH) | ||||
| 90201-14519 |
LH80,YH8# |
1 | ||
| 45409C - NUT(FOR IDLER ARM SUPPORT) | ||||
| 94184-61400 |
LH80,YH8# |
1 | ||
| 45409D - BUSH(FOR IDLER ARM) | ||||
| 90385-18068 |
LH80,YH8# |
2 | ||
| 45409D - BUSH(FOR IDLER ARM) | ||||
| 90385-18068 |
LH80,YH8# |
2 | ||
| 45409E - SEAL, DUST(FOR IDLER ARM SUPPORT) | ||||
| 90304-31012 |
LH80,YH8# |
2 | ||
| 45409E - SEAL, DUST(FOR IDLER ARM SUPPORT) | ||||
| 90304-31012 |
LH80,YH8# |
2 | ||
| 45421 - ARM, STEERING CENTER | ||||
| 45421-26060 |
LH80,YH8#..RHD |
1 | ||
| 45422 - SHAFT, CENTER ARM | ||||
| 45422-26010 |
LH80,YH8# |
1 | ||
| 45434 - CAP, CENTER ARM BRACKET | ||||
| 45434-26011 |
LH80,YH8# |
1 | ||
| 45436 - SEAT, CENTER ARM SHAFT | ||||
| 45436-28010 |
LH80,YH8# LWR |
1 | ||
| 45436-26010 |
LH80,YH8# UPR |
1 | ||
| 45436 - SEAT, CENTER ARM SHAFT | ||||
| 45436-28010 |
LH80,YH8# LWR |
1 | ||
| 45436-26010 |
LH80,YH8# UPR |
1 | ||
| 45440 - LINK ASSY, STEERING DRAG | ||||
| 45440-29195 |
LH80,YH8#..RHD |
1 | ||
| 45440B - NUT, CASTLE(FOR STEERING DRAG LINK) | ||||
| 90171-14042 |
LH80,YH8# |
1 | ||
| 45450 - ROD ASSY, STEERING RELAY | ||||
| 45450-29165 |
LH80,YH8#..RHD |
1 | ||
| 45450A - NUT, CASTLE(FOR RELAY ROD) | ||||
| 90171-14042 |
LH80,YH8# |
1 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-29285 |
LH80,YH8# FR DISC BRAKE |
1 | ||
| 45460-29265 |
LH80,YH80..GEN FR DRUM BRAKE |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45465-35020 |
LH80,YH8# FR DISC BRAKE |
2 | ||
| 45465-26010 |
LH80,YH80..GEN FR DRUM BRAKE |
2 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30020 |
LH80,YH8# |
4 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45470-29075 |
LH80,YH8# FR DISC BRAKE |
1 | ||
| 45460-29265 |
LH80,YH80..GEN FR DRUM BRAKE |
1 | ||
| 45490 - ARM ASSY, STEERING IDLER | ||||
| 45490-29475 |
LH80,YH8# |
1 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-26031 |
LH80,YH80..GEN FR DRUM BRAKE |
1 | ||
| 45611-26040 |
LH80,YH8# FR DISC BRAKE |
1 | ||
| 45611A - BOLT, KNUCKLE STOPPER | ||||
| 90106-12005 |
LH80,YH8# |
2 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-26040 |
LH80,YH8# FR DISC BRAKE |
1 | ||
| 45612-26031 |
LH80,YH80..GEN FR DRUM BRAKE |
1 | ||
| 45619 - COVER, KNUCKLE STOPPER | ||||
| 45619-36010 |
LH80,YH8# |
2 | ||
| Common parts | ||||
| 90101-08057 | ||||
| 90105-10154 | ||||
| 90105-12118 | ||||
| 90170-10021 | ||||
| 90170-12018 | ||||
| 90171-12028 | ||||
| 90179-12025 | ||||
| 91111-50816 | ||||
| 94110-50800 | ||||
| 94115-41600 | ||||
| 94512-00800 | ||||
| 94512-01600 | ||||
| 94531-01200 | ||||
| 94612-11600 | ||||
| 94621-11000 | ||||
| 95381-03022 | ||||
| 95381-03025 | ||||
ILLUST NO. 2 OF 3(8708-9109)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-10272 | ||||
| 90105-12068 | ||||
| 90105-12090 | ||||
| 90105-12118 | ||||
| 90170-12008 | ||||
| 90170-12011 | ||||
| 90179-12025 | ||||
| 90201-10109 | ||||
| 90310-32005 | ||||
| 90999-73061 | ||||
| 94511-02200 | ||||
| 94621-11200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
