LH80R-MDB (1985)
Toyota Dyna100
Production
Aug 1985
-
Aug 1987
Engine
2L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8508- )

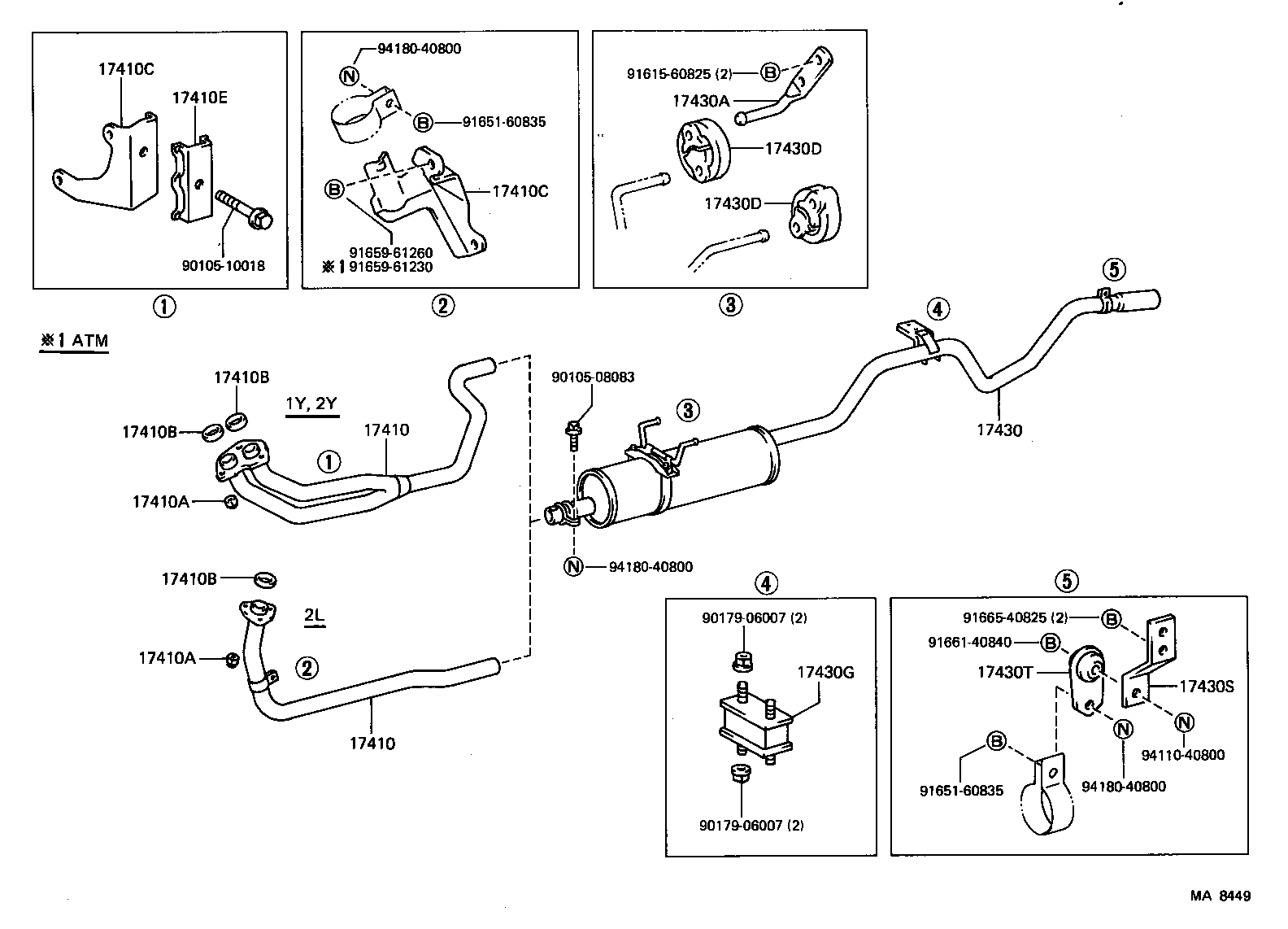

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-54600 |
2L..LH80 |
1 | ||
| 17410-54601 |
2L..LH80 |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-54600 |
2L..LH80 |
1 | ||
| 17410-54601 |
2L..LH80 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
2L,1Y,2Y..LH80,YH8# |
3 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
2L,1Y,2Y..LH80,YH8# |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
2L..LH80 |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
2L..LH80 |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06004 |
2L..LH80 |
1 | ||
| 17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17571-54141 |
2L..LH80..5F |
1 | ||
| 17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 17571-54141 |
2L..LH80..5F |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-71260 |
2L,1Y,2Y..LH80,YH8# |
1 | ||
| 17430A - BRACKET, EXHAUST TAIL PIPE(FOR FRONT) | ||||
| 17575-71050 |
2L,1Y,2Y..LH80,YH8# |
1 | ||
| 17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 17565-63030 |
2L,1Y,2Y..LH80,YH8# |
2 | ||
| 17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 17565-63030 |
2L,1Y,2Y..LH80,YH8# |
2 | ||
| 17430G - CUSHION, EXHAUST TAIL PIPE(FOR CENTER) | ||||
| 17567-61010 |
2L,1Y,2Y..LH80,YH8# |
1 | ||
| 17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 17574-54040 |
2L,1Y,2Y..LH80,YH8# |
1 | ||
| 17430T - CUSHION, EXHAUST TAIL PIPE (FOR REAR) | ||||
| 90917-08009 |
2L,1Y,2Y..LH80,YH8# |
1 | ||
| Common parts | ||||
| 90105-08083 | ||||
| 90105-10018 | ||||
| 90179-06007 | ||||
| 91615-60825 | ||||
| 91651-60835 | ||||
| 91659-61230 | ||||
| 91659-61260 | ||||
| 91661-40840 | ||||
| 91665-40825 | ||||
| 94110-40800 | ||||
| 94180-40800 | ||||
(8708-8808) ; (8808- )2Y
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-08083 | ||||
| 90105-10018 | ||||
| 90179-06007 | ||||
| 91615-60825 | ||||
| 91651-60835 | ||||
| 91659-61230 | ||||
| 91659-61260 | ||||
| 91661-40840 | ||||
| 91665-40825 | ||||
| 94110-40800 | ||||
| 94180-40800 | ||||
