LH80L-MDPW (1985)

Toyota Dyna100

Production Aug 1985 - Aug 1987
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

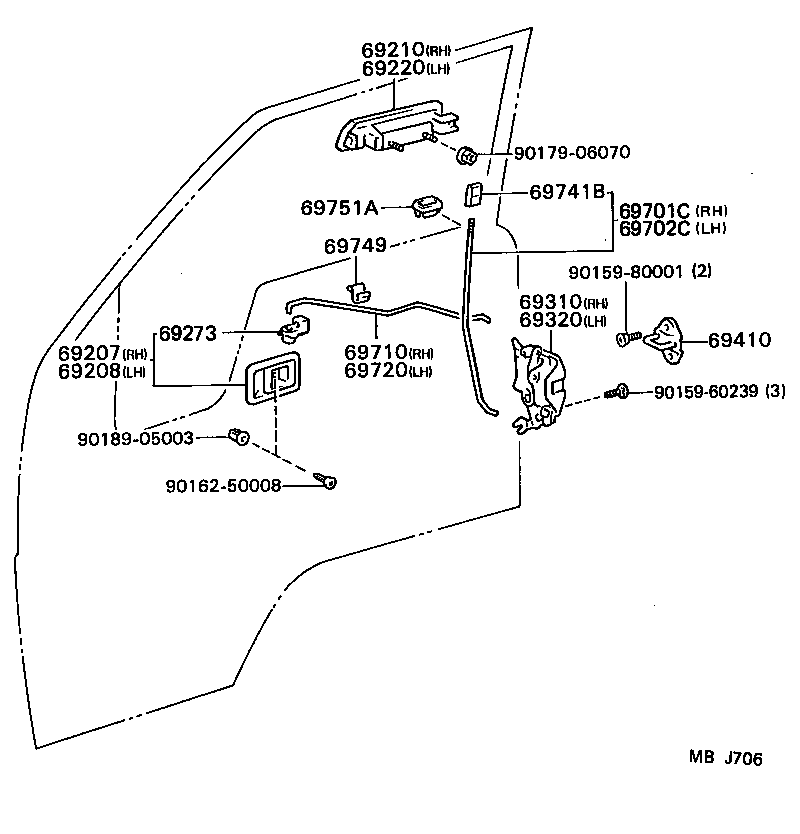

Click highlighted areas on diagram

diagram 69207 69208 69210 69220 69273 69310 69320 69410 69701C 69702C 69710 69720 69741B 69749 69751A 9015960239 9015980001 9016250008 9017906070 9018905003
Part # Description Qty Price
69207 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
69205-1004003

LH80,YH8#

GRAY,GRAY

 1
69208 - HANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
69206-1004003

LH80,YH8#

GRAY,GRAY

 1
69210 - HANDLE ASSY, FRONT DOOR, OUTSIDE RH
69210-95400

LH80,YH8#

 1
69220 - HANDLE ASSY, FRONT DOOR OUTSIDE, LH
69220-95400

LH80,YH8#

 1
69273 - SNAP, DOOR INSIDE HANDLE ROD
69759-20060

LH80,YH8#

RH

 1
69759-20070

LH80,YH8#

LH

 1
69310 - LOCK ASSY, FRONT DOOR, RH
69310-95407

LH80,YH8#

 1
69320 - LOCK ASSY, FRONT DOOR, LH
69320-95407

LH80,YH8#

 1
69410 - PLATE ASSY, FRONT DOOR LOCK STRIKER
69410-22020

LH80,YH8#

 2
69701C - LINK SUB-ASSY, FRONT DOOR LOCK CONTROL, RH
69701-9540001

LH80,YH8#

BLACK,BLACK

 1
69702C - LINK SUB-ASSY, FRONT DOOR LOCK CONTROL, LH
69702-9540001

LH80,YH8#

BLACK,BLACK

 1
69710 - LINK ASSY, FRONT DOOR OPEN CONTROL, RH
69711-95403

LH80,YH8#

 1
69720 - LINK ASSY, FRONT DOOR OPEN CONTROL, LH
69712-95401

LH80,YH8#

 1
69741B - KNOB, FRONT DOOR LOCK CONTROL
69741-2002001

LH80,YH8#

BLACK,BLACK

 2
69749 - CLAMP, FRONT DOOR LOCK LINK
69749-20010

LH80,YH8#

 2
69751A - HOLDER, DOOR LOCKING(FOR FRONT DOOR)
69751-2003101

LH80,YH8#

BLACK,BLACK

 2
Common parts
90159-60239
90159-80001
90162-50008
90179-06070
90189-05003
