LH80L-MDPW (1985)
Toyota Dyna100
Production
Aug 1985
-
Aug 1987
Engine
2L
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

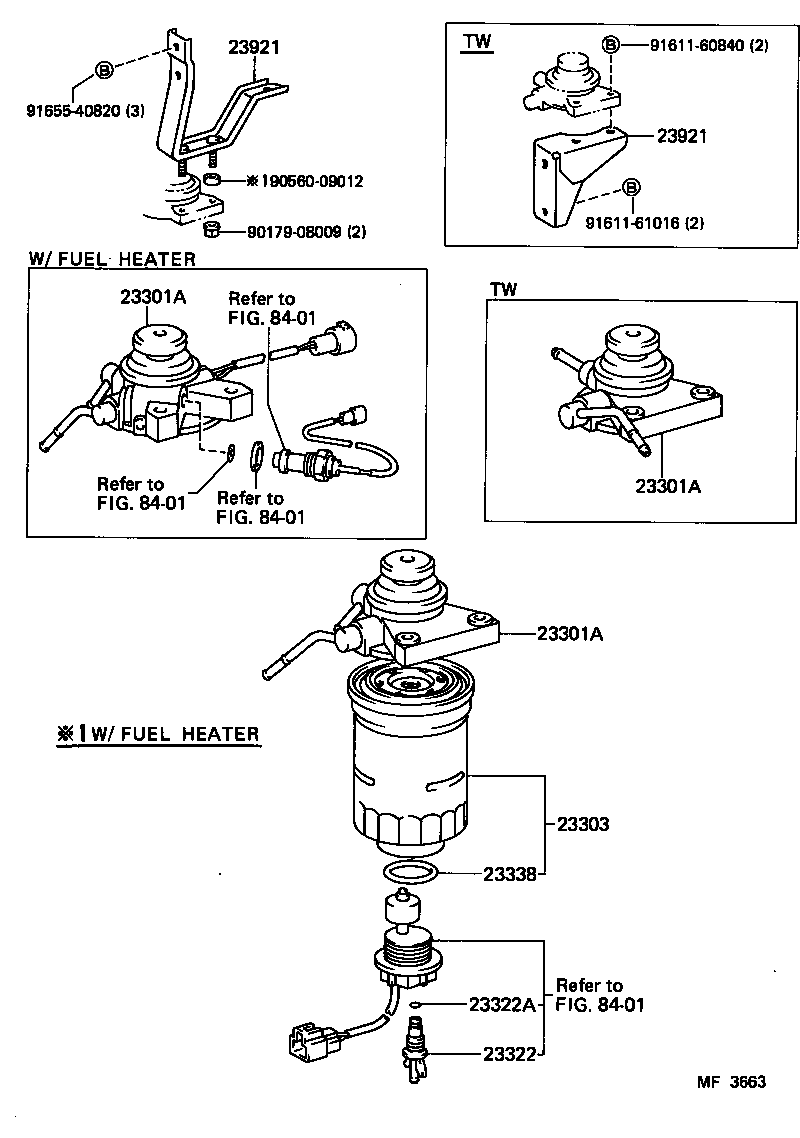

(8508- )2L
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23301-54090 |
2L..LH80..TW |
1 | ||
| 23301-54100 |
2L..LH80..TW..EUR W/FUEL HEATER |
1 | ||
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23301-54090 |
2L..LH80..TW |
1 | ||
| 23301-54100 |
2L..LH80..TW..EUR W/FUEL HEATER |
1 | ||
| 23301A - CAP ASSY, FUEL FILTER | ||||
| 23301-54090 |
2L..LH80..TW |
1 | ||
| 23301-54100 |
2L..LH80..TW..EUR W/FUEL HEATER |
1 | ||
| 23303 - ELEMENT SUB-ASSY, FUEL FILTER | ||||
| 23303-64010 |
2L..LH80 |
1 | ||
| 23322 - PLUG, DRAIN(FOR FUEL FILTER) | ||||
| 23322-64010 |
2L..LH80 |
1 | ||
| 23322A - RING, O(FOR DRAIN PLUG) | ||||
| 23344-54010 |
2L..LH80 |
1 | ||
| 23338 - GASKET(FOR WARNING SWITCH) | ||||
| 23344-64010 |
2L..LH80 |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-54210 |
2L..LH80..TW |
1 | ||
| 23921 - SUPPORT, FUEL FILTER | ||||
| 23921-54210 |
2L..LH80..TW |
1 | ||
| Common parts | ||||
| 90179-08009 | ||||
| 90560-09012 | ||||
| 91611-60840 | ||||
| 91611-61016 | ||||
| 91655-40820 | ||||
| Linked diagrams | ||||
| 8401 | ||||

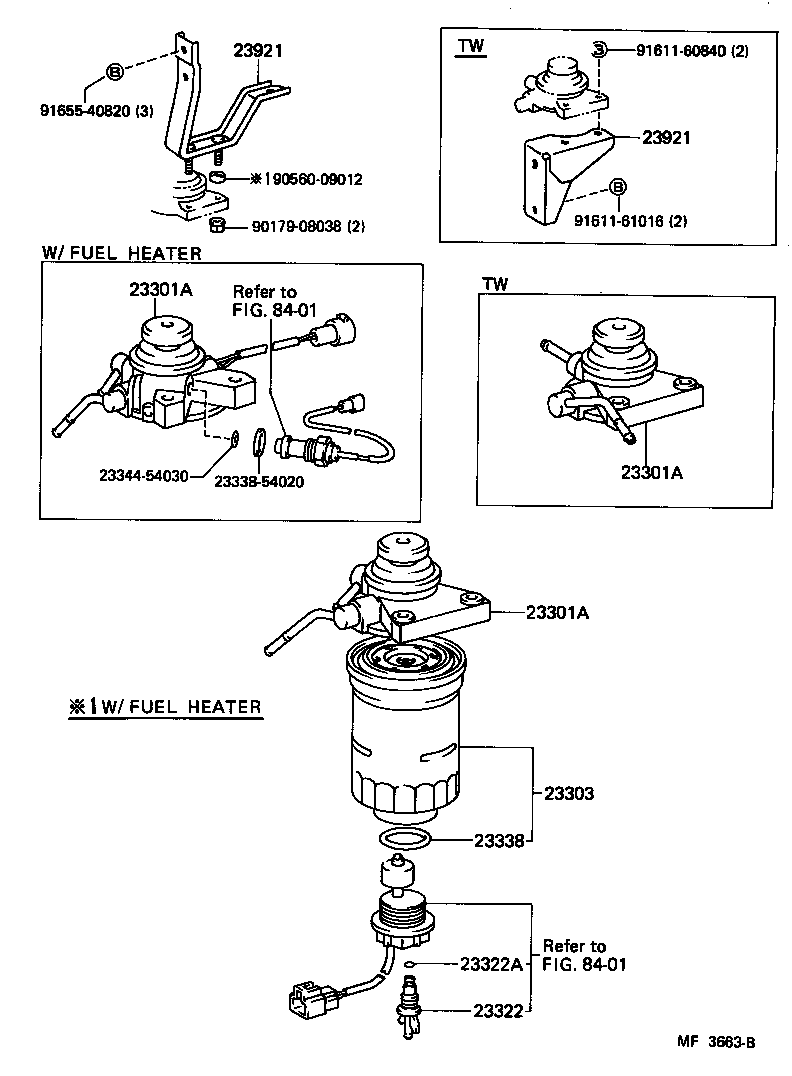

(8708-8808)2L
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 23338-54020 | ||||
| 23344-54030 | ||||
| 90179-08038 | ||||
| 90560-09012 | ||||
| 91611-60840 | ||||
| 91611-61016 | ||||
| 91655-40820 | ||||
| Linked diagrams | ||||
| 8401 | ||||
